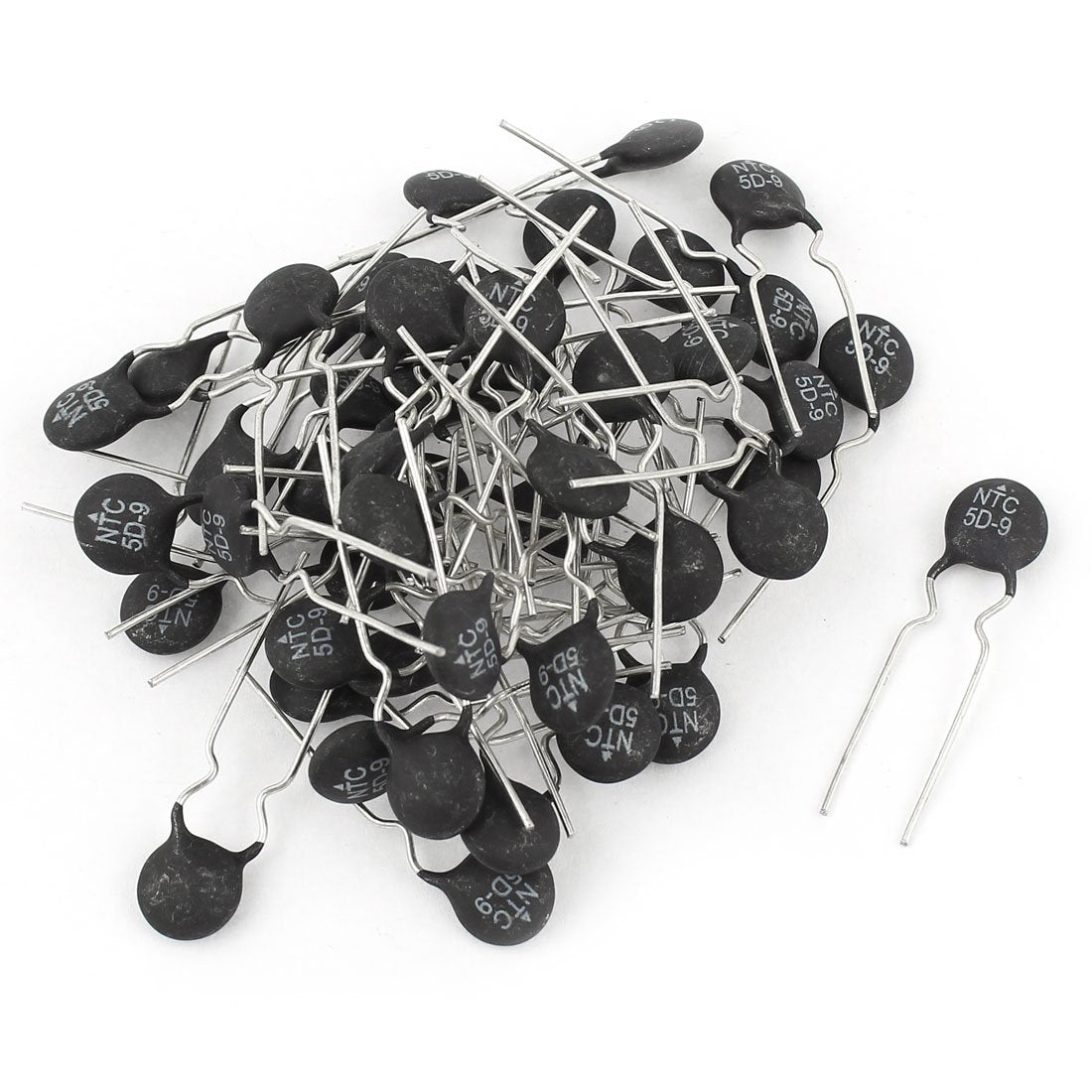

NTC Thermistor Resistors 5D-9 5 Ohm 3A Inrush Current Limiter Temperature Sensors Pack of 50

Key Features

• Product Name NTC Thermistor;Model NTC 5D-9;Material Ceramic, Metal
• MaxSteady State Current 3A;Rated Resistor at 25C 5 Ohm;Dissipation Co-efficient 11mW/C
• Thermal Time Constant 34S;Operating Temperature -55C to +200C;Dimension 9 x 4mm/0.35" x 0.16"(D*T)
• LeadLength 25mm/0.98";Color Black
• Weight 40g;Package Content 50(+/-2%) x NTC Thermistors

Product Description

It is used for controlling the current of motor, various heaters, bulb voltage stabilizer, electronic energy-saving lamp, electronic rectifier and other electronic installations. Safe, reliable, stable, with wide range of over-current control. Small size, large power, with strong capacity to inhibit surge current. Large material constant (B value), with small residual resistance. Thermal shock resistance, with wide range of operating temperature.

Specifications
