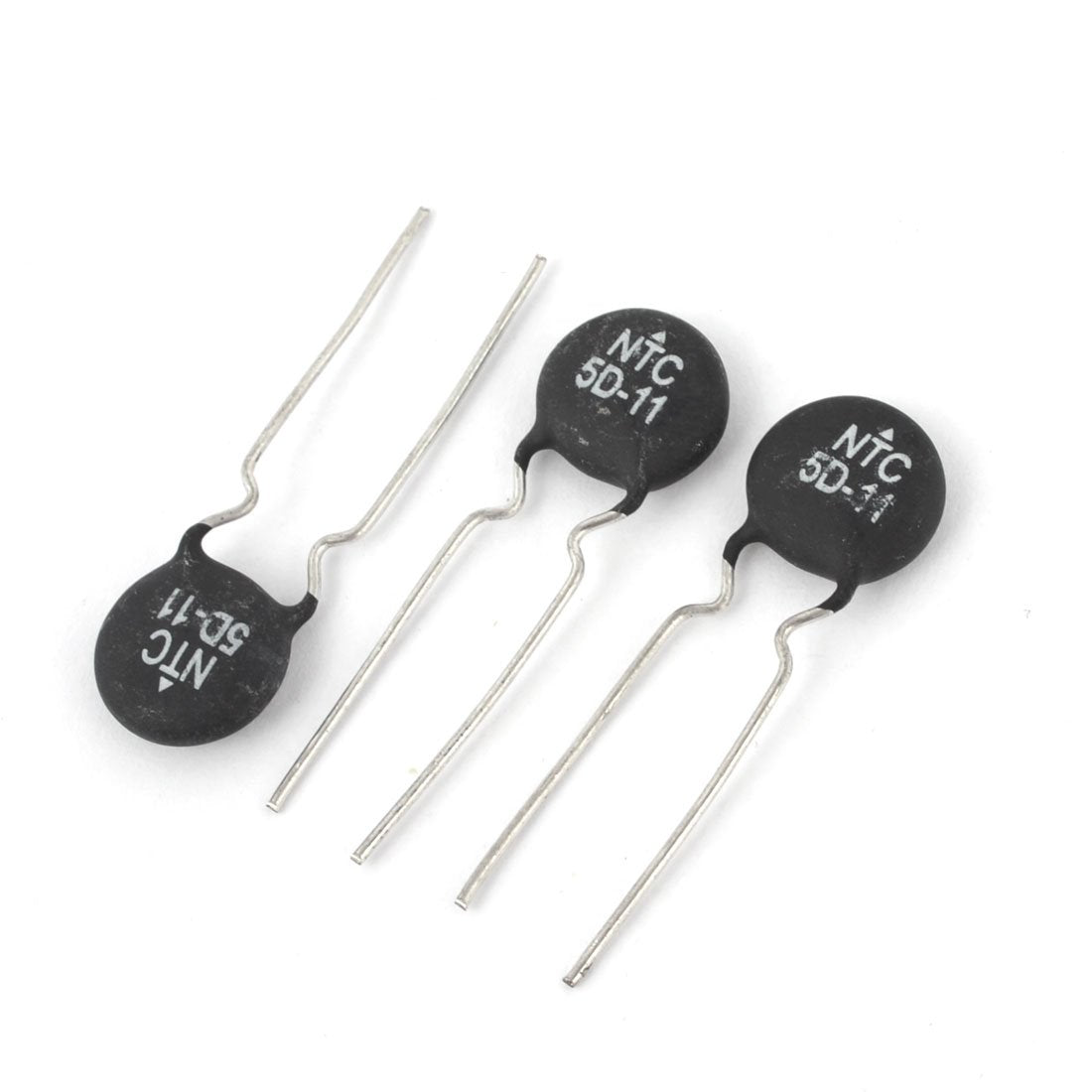

NTC Thermistor Resistors 5D-11 4A 5 Ohm Inrush Current Limiter Temperature Sensors Pack of 3

Key Features

• Product Name Power Thermistor;Model NTC 5D-11;Material Ceramic, Metal
• Maximum Steady State Current 4A;Approximater of Max. Current at 25 °C 0.156Ω;Dissipation Co-efficient 13mW/°C
• Thermal Time Constant 45S;Operating Temperature -55 to +200°C;Body Size 11 x 4mm / 0.43" x 0.16"(D*H)
• Pin Length 25mm/ 0.98";Pin Pitch 7mm/ 0.28";Color Black
• Weight 2g;Package Content 3 power Thermistor

Product Description

It is used for controlling the current of motor, various heaters, bulb voltage Stabilizer, electronic energy-saving lamp, electronic Rectifier and other electronic installations. Safe, reliable, stable, with wide range of over-current control. Small size, large power, with strong capacity to inhibit surge current. Large material constant (b value), with small residual resistance. Thermal shock resistance, with wide range of operating temperature.
