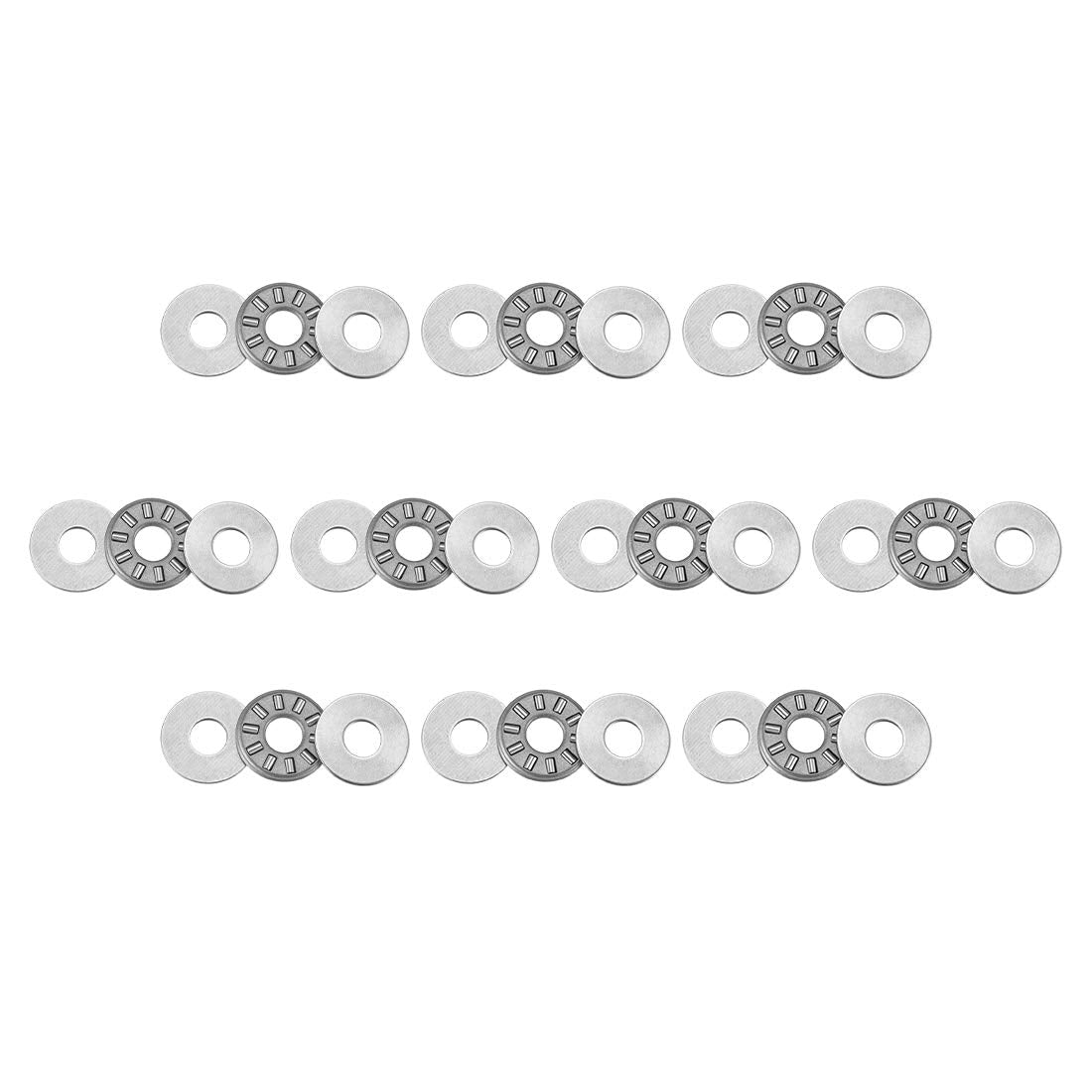

NTA411 Thrust Needle Roller Bearings with Washers 1/4" Bore 11/16" OD 5/64" Width 10pcs

Key Features

• [MODEL] - Bearing Model NTA411 (I.D.=1/4-inch, O.D.=11/16-inch, Bearings Thickness(T1)=5/64-inch; Washer Thickness (T2) 0.032-inch(Approx.)); Washer Model TRA411
• [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
• [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
• [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
• [CAPABILITY] - 4110N Static Load Capacity, 9160N Dynamic Load Capacity, 28000RPM Maximum Rotational Speed

Product Description

Description

Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.These bearings to accommodate heavy axial loads and peak loads due to the small diameter deviation of the rollers within one assembly.NTA Thrust Bearings can be combined with washers in the TRA series in applications where adjacent components cannot serve as raceways.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.Specification:Bearing Model: NTA411Bearing Washer Model: TRA411Needle Roller Material: Chromium Steel (GCr15)Cage Material: ST13 SteelBearing Washer Material: 65Mn Spring SteelBore Diameter (d): 1/4-inchOutside Diameter (D): 11/16-inchBearing Thickness (T1): 5/64-inchWasher Thickness (T2): 0.032-inch (Approx.)Dynamic Load Capacity (Cr): 4110NStatic Load Capacity (Cor): 9160NLimiting Speed (Oil): 28000RPMPackage Contents:10 x Bearings20 x Bearing Washers
