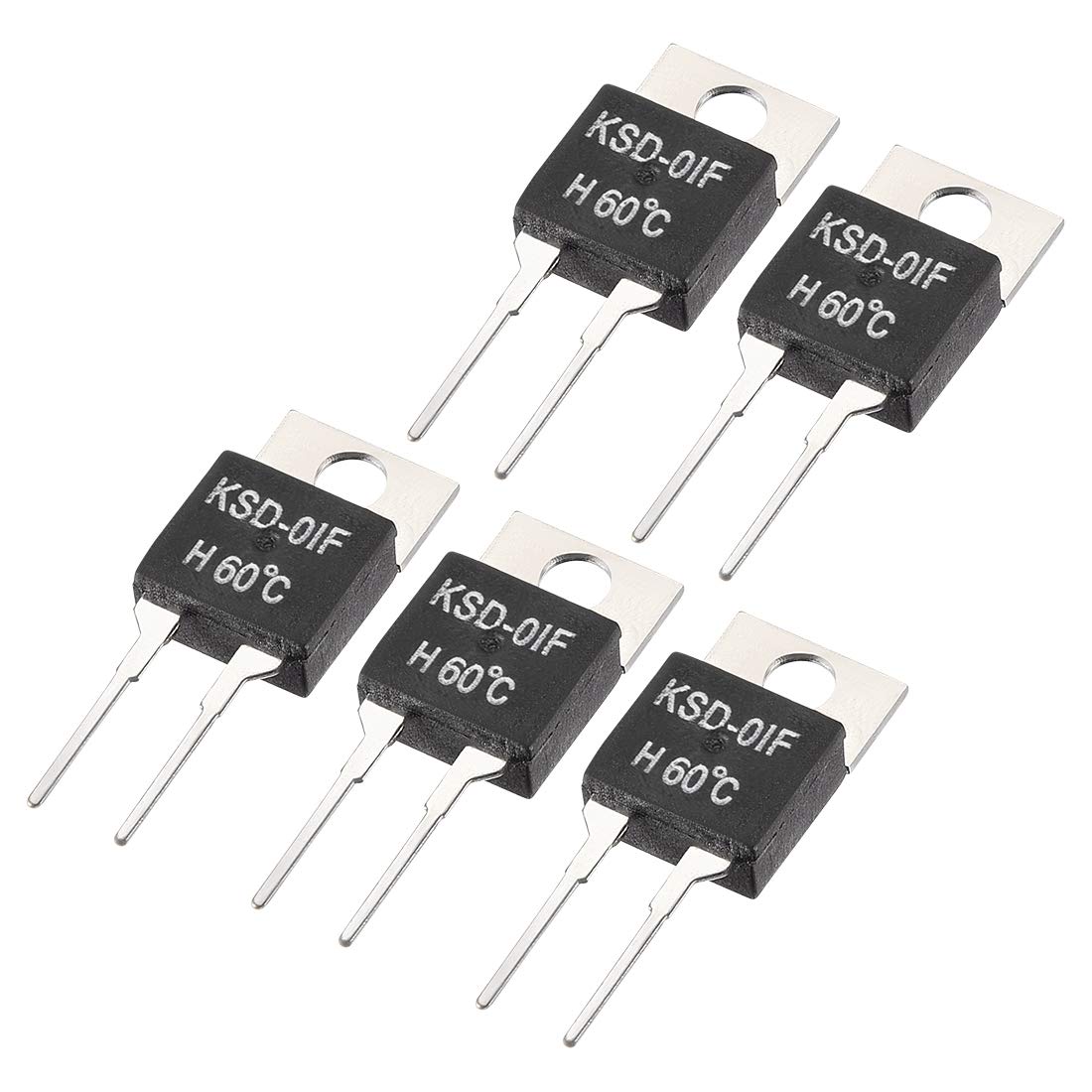

Normally Open Temperature Switch, KSD-01F Thermal Switch Thermostat Temperature Controller 60℃ N.O 5pcs

Key Features

• Temperature 60℃ ; Power 220VAC 1A /24VDC 3A ; Contact N.O(Normal Open)
• 60℃ N.O(Normal Open) KSD-01F Thermostat Temperature Control Switch Thermal Overload Protection
• General-purpose low cost, compact, large capacity, minute current thermostat
• Apply to circuit board of temperature control or thermal overload protection use
• Normally Open The original state of temperature control switch contact is open, and close when the temperature sensing exceeds the rated temperature

Product Description

Specification:Product Name : ThermostatModel : KSD-01FTemperature : 60℃Contact : N.O(Normal Open)Power : 220VAC 1A /24VDC 3ACircuit Resistance : ≤50m ohmInsulation Resistance : ≥100M Ohm(500VDC)Insulation Strength : 1500V/DC, 60HzTotal Size : 30 x 10 x 5mm/1.18 x 0.39 x 0.2inch(L*W*H)

Package Content

5pcs x Thermostat

Description

1.KSD-01F 60℃ Temperature Control Switch Thermostat.2.General-purpose low cost, compact, large capacity, minute current thermostat.3.Apply to circuit board of temperature control or thermal overload protection use.

Specifications
