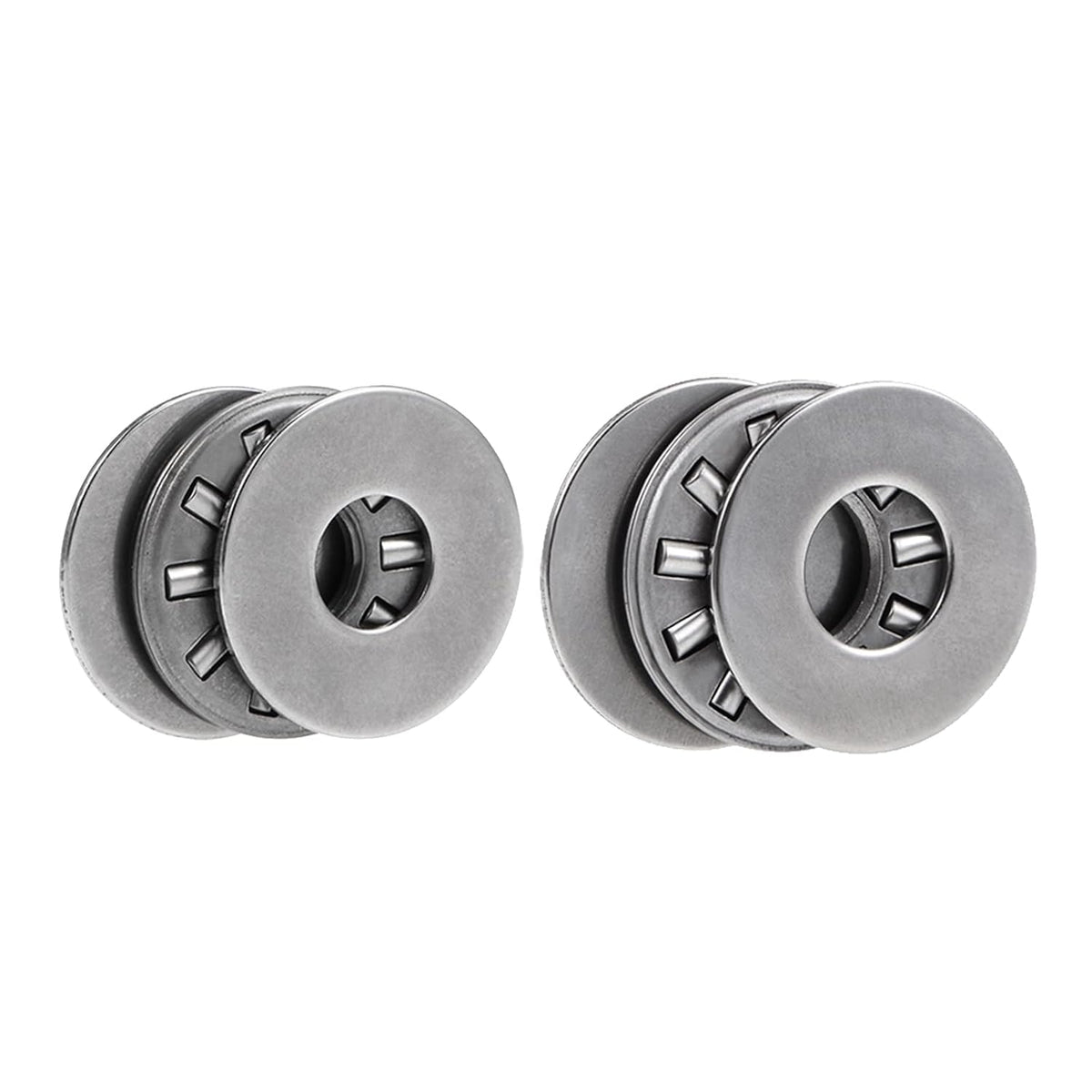

Needle Roller Thrust Bearings with Washers TC512+2TRA, TC411+2TRA 10pcs

Key Features

• Features Bore Diameter (d) 5/16" / 7.92mm, 1/4" / 6.35mm; Outside Diameter (D) 3/4" / 19.05mm, 11/16" / 17.4625mm; Bearing Thickness (T1) 5/64" / 1.984mm, 5/64" / 1.984mm; Washer Thickness (T2) 0.8mm, 0.8mm; Total Thickness 3.584mm
• This Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
• These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the roller within one assembly.
• Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.
• Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

Product Description

Specification:Bore Diameter (d): 5/16" / 7.92mm, 1/4" / 6.35mmOutside Diameter (D): 3/4" / 19.05mm, 11/16" / 17.4625mmBearing Thickness (T1): 5/64" / 1.984mm, 5/64" / 1.984mmWasher Thickness (T2): 0.8mm, 0.8mmTotal Thickness: 3.584mm

Package Content

5Pcs x TC512+2TRA Needle Roller Thrust Bearings5Pcs x TC411+2TRA Needle Roller Thrust Bearings

Description

This Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the roller within one assembly.Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
