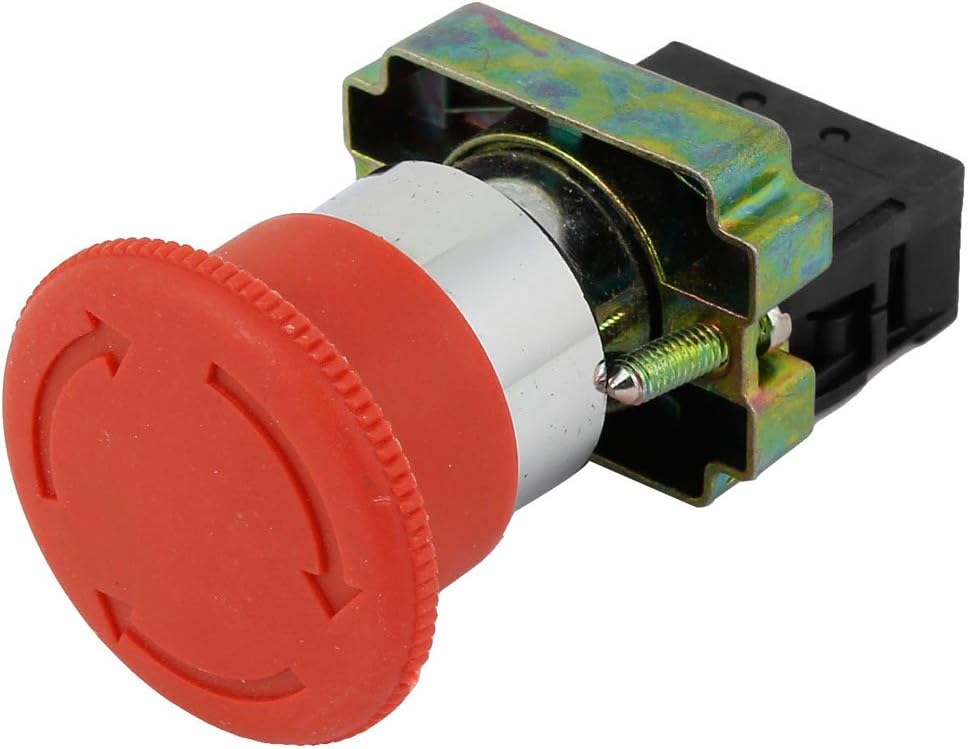

NC Latching Red Sign Mushroom Emergency Stop Push Button Switch
Key Features
- Item Name Emergency Stop Push Button Switch;Contact Type 1 NC;Action Type Latching;Ith 10A;Ui 600V;impulse voltage 6KV
- Rated Voltage & Current(AC15) AC 240V, 3A;Button Diameter 40mm/1.6";Mount Hole Diameter 2.2cm / 0.87"(7/8")
- Overall Size(Approx.) 39 x 29 x 73cm/ 1.5" x 1.1" x 2.9"(L*W*H);Material Plastic, Metal;Color Black, Red, Silver Tone
- The shell is made of flame-retardant PC material, anti-corrosion and waterproof; The contact is made of silver tin oxide with strong conductivity. The bottom is made of flame-retardant substrate with high temperature resistance
- Used widely to control the equipment, contactor, relay and other automatic control electric circuits.
Product Description
About this item Item Name : Emergency Stop Push Button Switch;Contact Type : 1 NC;Action Type : Latching;Ith : 10A;Ui : 600V;impulse voltage : 6KV Rated Voltage & Current(AC15) : AC 240V, 3A;Button Diameter : 40mm/1.6";Mount Hole Diameter : 2.2cm / 0.87"(7/8") Overall Size(Approx.) : 39 x 29 x 73cm/ 1.5" x 1.1" x 2.9"(L*W*H);Material : Plastic, Metal;Color : Black, Red, Silver Tone The shell is made of flame-retardant PC material, anti-corrosion and waterproof; The contact is made of silver tin oxide with strong conductivity. The bottom is made of flame-retardant substrate with high temperature resistance Used widely to control the equipment, contactor, relay and other automatic control electric circuits. ›
Specifications
| Item Weight | 0.01 Ounces |
