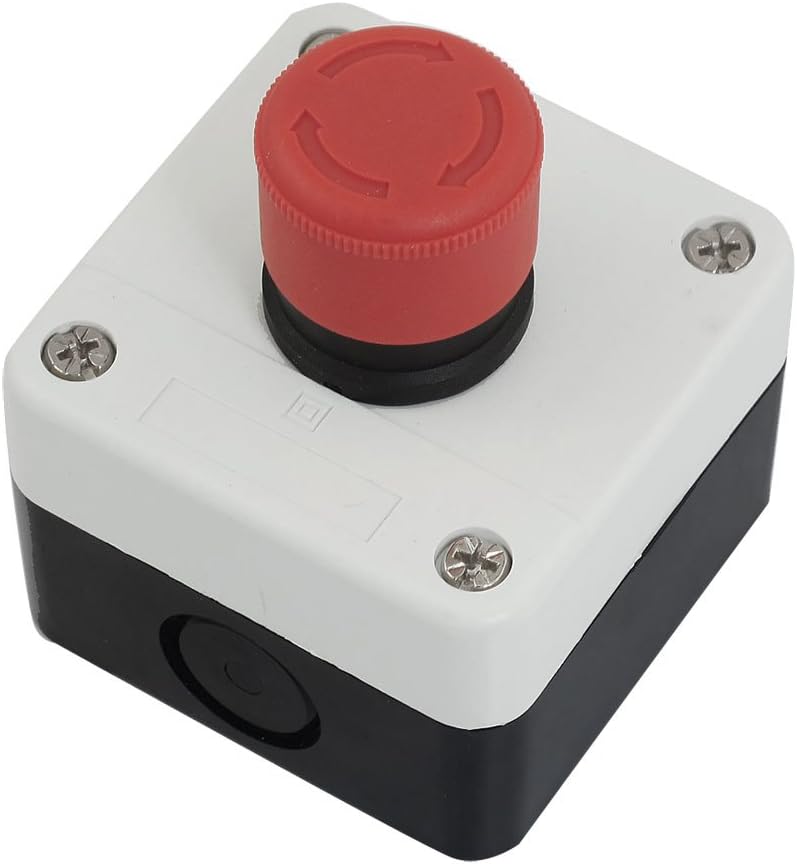

NC Emergency Stop Sign Latching Push Button Switch Station 600V 10A

Brand: LinkMejor
★★★★☆ 337 ratings | 17 answered questions
$9.99
✓ In Stock
✓ Secure transaction
🚚 Free delivery available
🔄 30-day returns
📦 Ships from linkmejor.com

Key Features

  • Product Name Push Button Switch Station;Material Plastic, Metal;Action Type Latching
  • Contact Type 1 NC;Ith 10A;Ui 600V
  • AC-15 240V 3A;Uimp 6kV;Terminal Number 2
  • Mounting Hole Diameter 8mm / 5/16";Hole Distance(center to center) 51x 51mm / 2" x 2"(L*W);Total Size (Approx.) 68 x 68 x 76mm / 2.7" x 3" (L*W*T)
  • Button Color Red;Weight 125g;Package Content 1 x Push Button Switch Station

Product Description

Features

2 terminals, 1 NC red emergency stop push button switch station. Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits. Comes with quick connect terminals to allow for fast connections.

Specifications

Item Weight 3.2 ounces
Product Dimensions 3.54 x 2.76 x 2.76 inches
