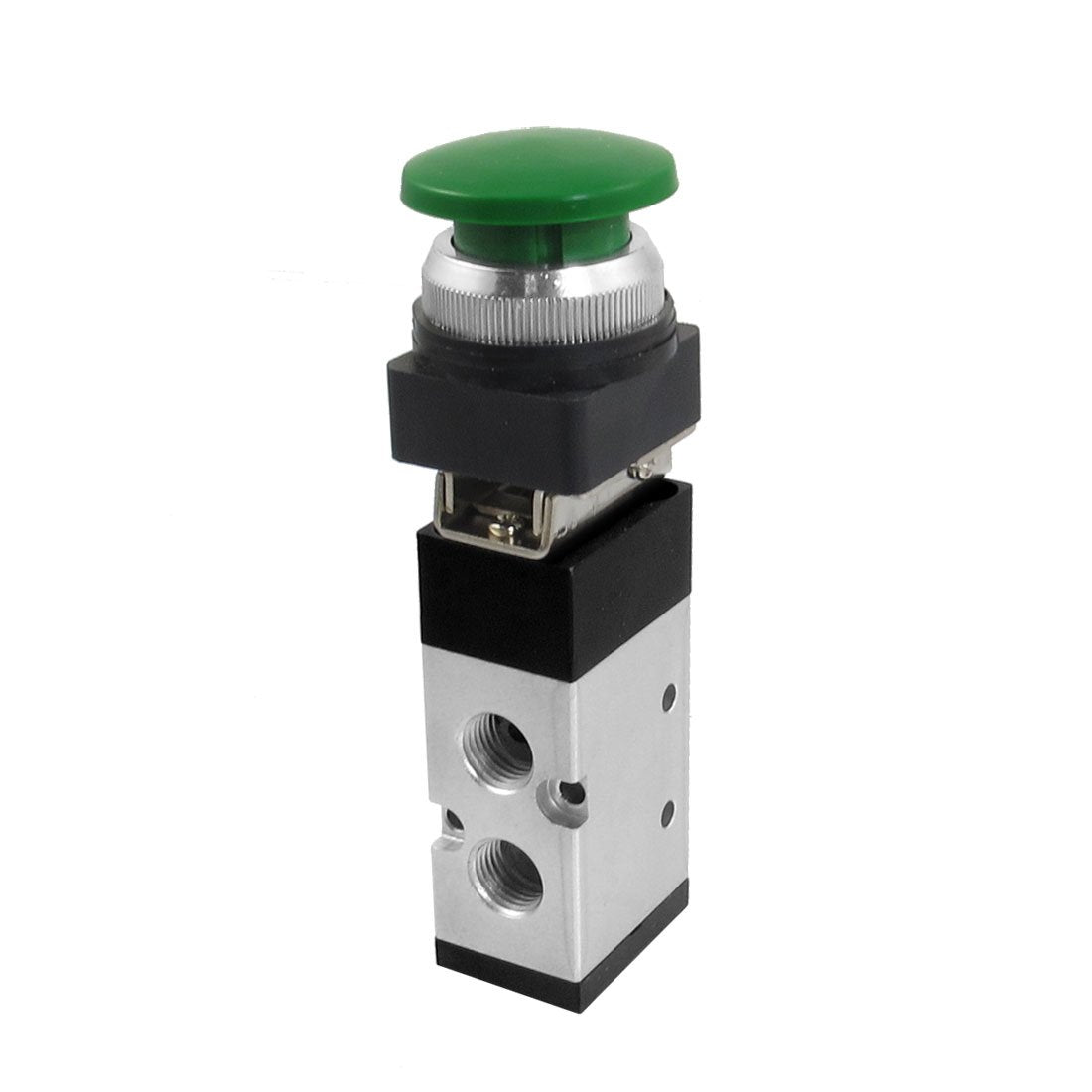

MV522PB 12mm Thread Input 2/5 Way Green Mushroom Button Air Mechanical Valve

Key Features

• Product Name Mechanical Valve;Model MV522PB;Actuator Type Momentary Green Mushroom Button
• Working Medium Air;Position and Way No. 2 Position 5 Way;Pipe Thread Diameter Air Inlet=Air Outlet=12mm,Exhaust=9mm
• Pipe Size 1/4 PT;Fixing Hole Diameter 4mm/0.2inch;Working Pressure Range 1.5 - 8kgf/cm2
• Total Size(Approx.) 12.7 x 3.5 x 2.5 cm / 5" x 1.4" x 0.98"(L*W*H);Material Metal, Plastic
• Weight 200g;Package 1 x Mechanical Valve

Product Description

Description

2/5 way mechanical valve. Steady performance,easy installation. This pneumatic mechanical valve is used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.

Specifications
