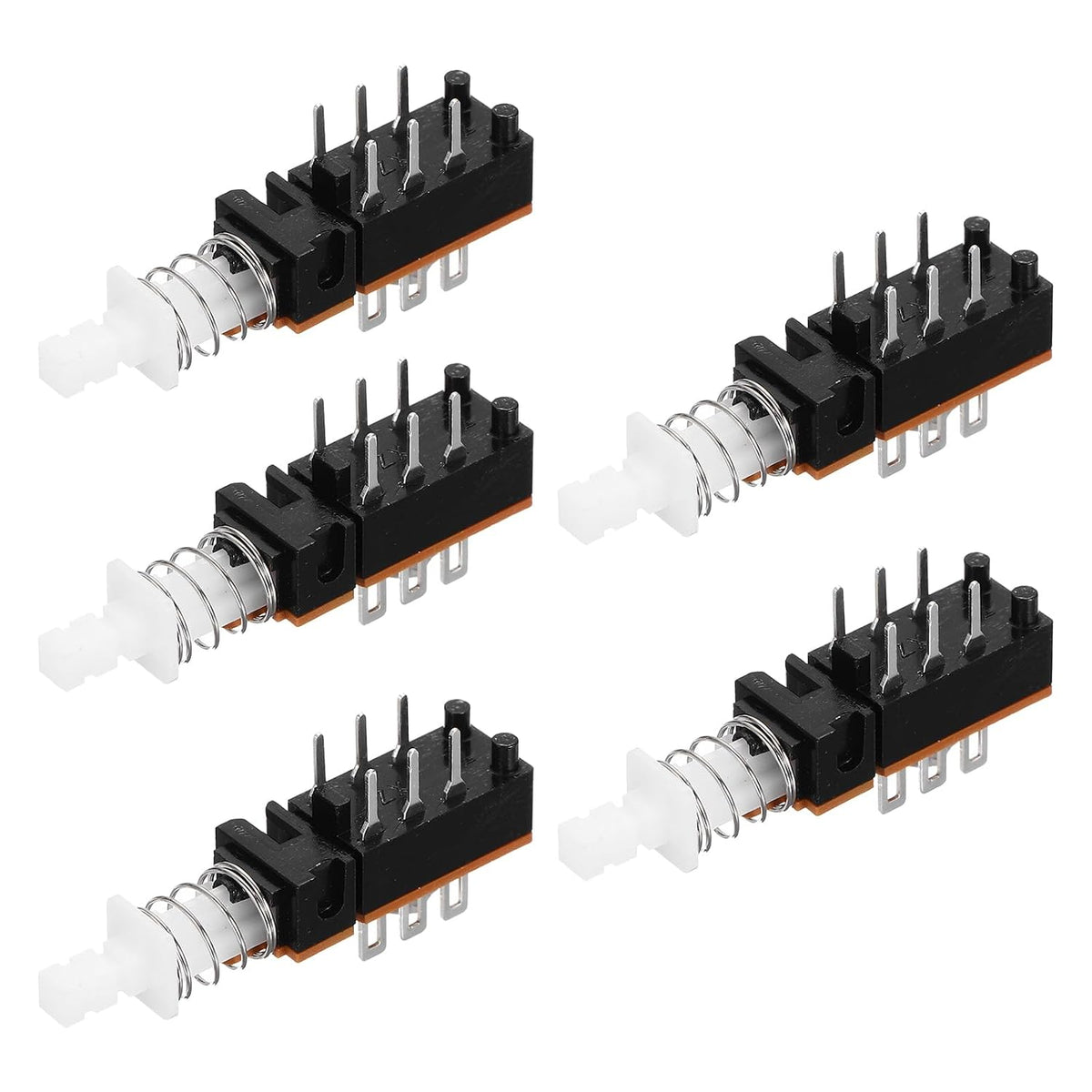

Momentary Push Button Switch DPDT 2 Pole 6 Pin 1 Position 5pcs

Key Features

• [Standard] - DPDT 6 Pins 4mm Pitch 1 Position
• [Momentary Switch] - Momentary straight through hole miniature switch
• [Features] - Mechanism design offers acute operation and long service life
• [Applications] - Ideal for mounting on PCB motherboard of many electric appliances
• [Package Content] - 5pcs x Push Button Switch

Product Description

Specifications

Material: Plastic, MetalSwitch Operation: Momentary Contact Configuration: DPDTTerminal Type: Straight Through HolePin Quantity: 6Each Pin Pitch: 4mmPosition Quantity: 1End Width: 9mm / 0.35-inchMounting Pillar Distance: 5mm / 0.20-inchCap Mounting Part: 8 x 3.3mm / 0.31-inch x 0.13-inch(L*W)Overall Size: 42 x 9.6 x 18mm / 1.65-inch x 0.38-inch x 0.71-inch(L*W*H) Package Contents:5pcs x Push Button Switch

Description

Momentary contact, 6 pins, DIP through hole mounting.Used in the fields of electronic products, household appliances and more.High precision mechanism design offers acute operation and long service life.
