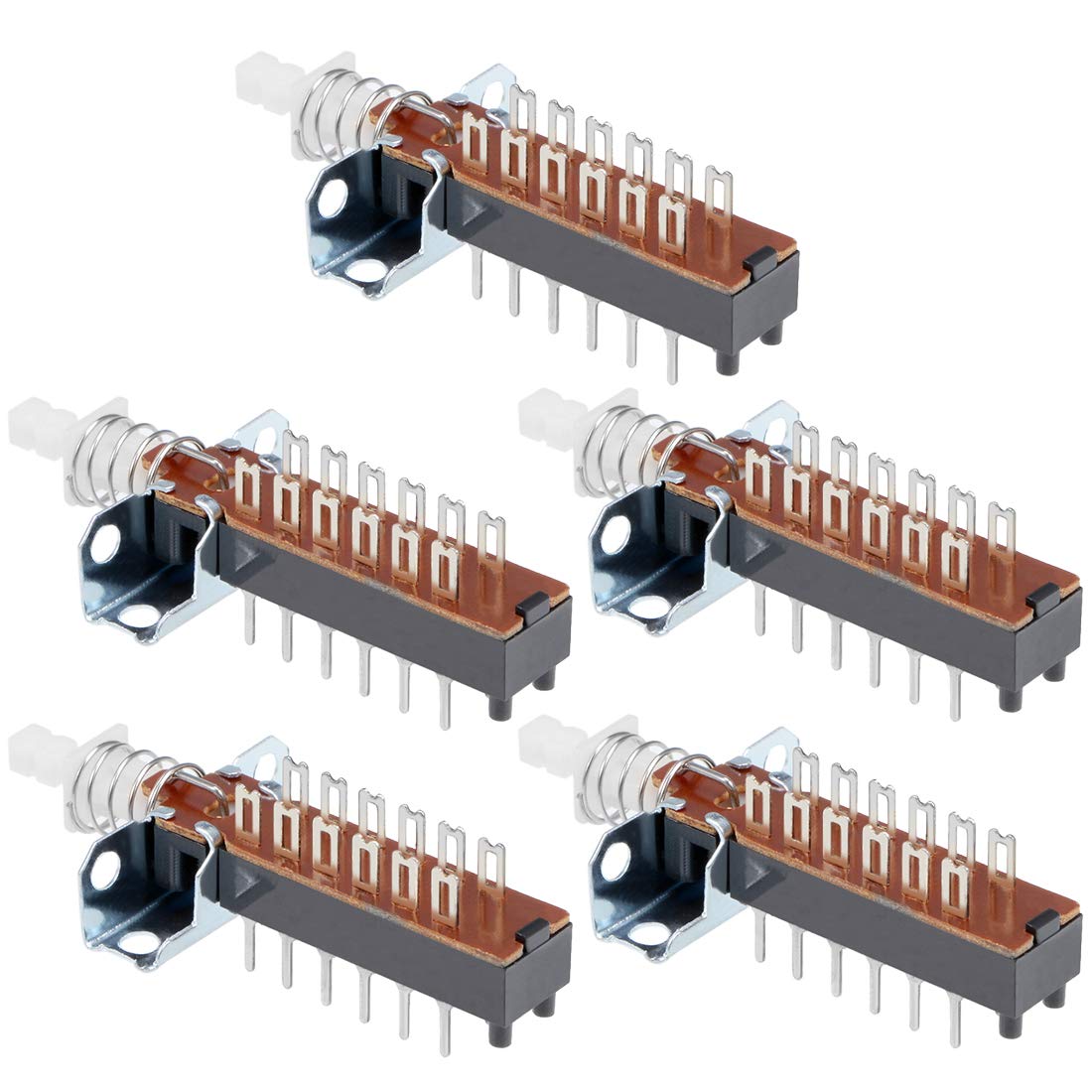

Momentary Push Button Switch 4PDT 4 Pole 12 Pin 1 Position 5pcs

Key Features

• [Standard] - 4PDT 12 Pins 4mm Pitch 1 Position
• [Momentary Switch] - Momentary straight through hole miniature switch
• [Features] - Mechanism design offers acute operation and long service life
• [Applications] - Ideal for mounting on PCB motherboard of many electric appliances
• [Package Content] -5pcs x Push Button Switch

Product Description

Specifications

Material: Plastic, MetalSwitch Operation: MomentaryContact Configuration: 4PDTTerminal Type: Straight Through HolePin Quantity: 12Each Pin Pitch: 4mmPosition Quantity: 1End Width: 9mm / 0.35-inchMounting Pillar Distance: 5.5mm / 0.22-inchMounting Hole Distance: 20mm / 0.79-inchCap Mounting Part: 8 x 3.3mm / 0.31-inch x 0.13-inch(L*W)Overall Size: 55 x 26 x 17.3mm / 2.17-inch x 1.02-inch x 0.68-inch(L*W*H) Package Contents:5pcs x Push Button Switch

Description

Momentary contact, 12 pins, DIP through hole mounting.Used in the fields of electronic products, household appliances and more.High precision mechanism design offers acute operation and long service life.
