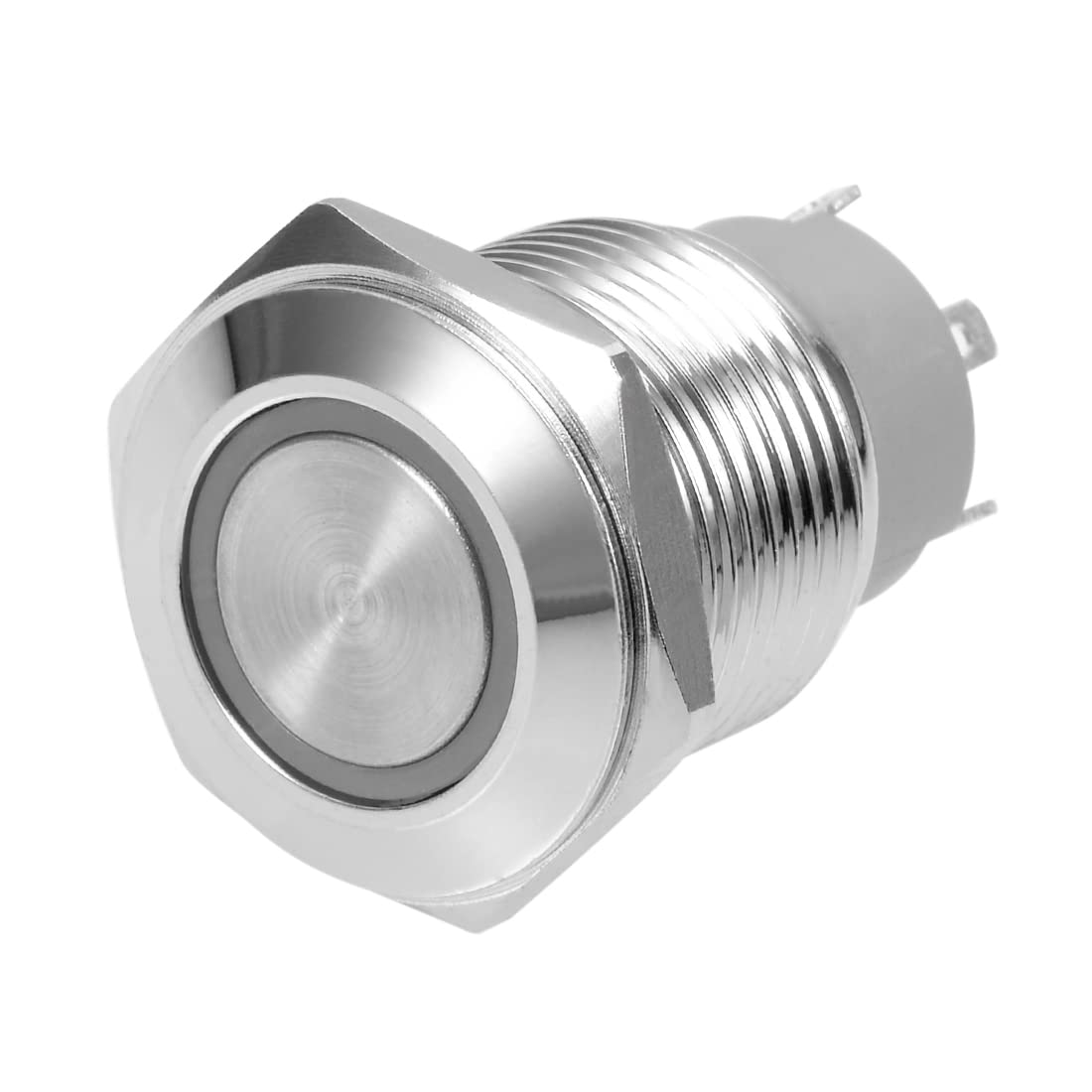

Momentary Push Button Switch 16mm Mounting Dia 5A 1NO with 3V White LED Light

Key Features

• Type Momentary ; Contact Type 1NO; Terminals Quantity 4
• (Rated) Voltage & Current 250V 5A; Light Voltage 3V; Light Color White
• Mounting Hole Dia 16mm / 0.63"; Package Content 1 x Push Button Switch
• Head Shape Hex Flat Head; Total Size 26 x 21.5mm/1.02" x 0.85"(L*Max.W)
• With IP67 Waterproof, can be used in wet or dusty environment. Used widely for Power Button Switch, Led Switch, DIY projects or any circuit controls.

Product Description

Descriptions

Momentary type, 1NO contact, 4 terminals.This metal push button switch is suitable for 16mm diameter mounting hole.Used widely for circuits control in electromagnetic starter, contactor, relay and other electric circuits. Specification:Item Name: Push Button SwitchAction Type: Momentary TypeHead Shape: Hex Flat HeadContact: 1NOSwitch Rating: AC 250V 5ASwitch Color: Silver ToneLamp Voltage: 3VLight Color: WhitePin Number: 4Thread Diameter: 16mm/0.63inTotal Size: 26 x 21.5mm/1.02 x 0.85inch(L*Max.W)Material: Copper Nickel Plating

Package Content

1 x Push Button Switch

Specifications
