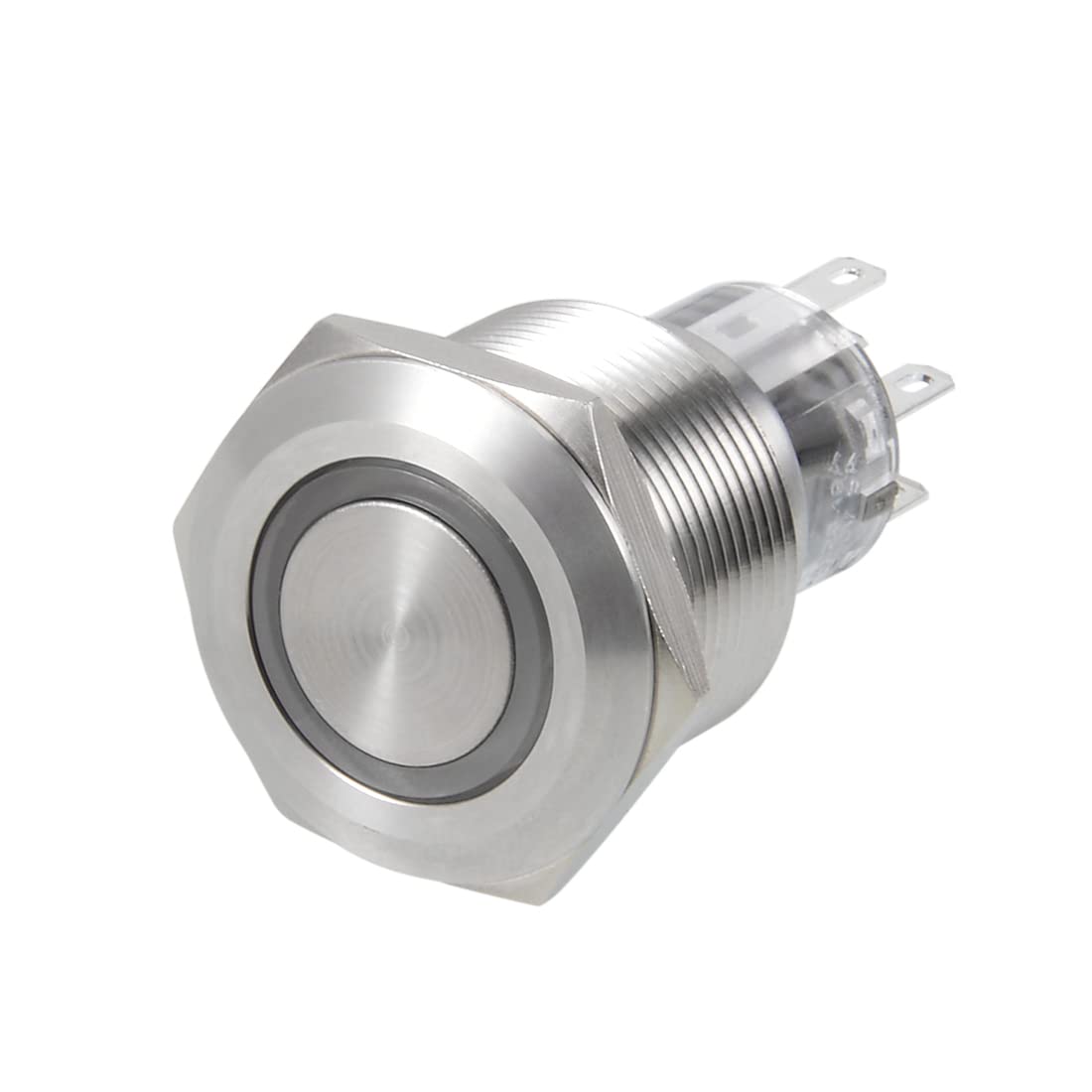

Momentary Metal Push Button Switch 22mm Mounting Dia DPDT 2NO 2NC 24V Red LED Light

Key Features

• Item Name Push Button Switch; Type Momentary; Contact Type DPDT(2NO 2NC 1COM)
• (Rated) Voltage & Current 250V 5A; Light Voltage 24V; Light Color Red
• Mounting Hole Dia 22mm/0.87"; Terminals Quantity 8; Head Shape Hex Flat Head
• Package Content 1 x Push Button Switch; Total Size 40 x 29mm/1.57 x 1.41"(L*Max.W)
• With IP67 Waterproof, can be used in wet or dusty environment. Used widely for Power Button Switch, Led Switch, DIY projects or any circuit controls.

Product Description

Descriptions

Momentary type, DPDT 2NO 2NC 1COM contact, 8 terminals.This metal push button switch is suitable for 22mm diameter mounting hole.Used widely: Great for Power Button Switch, Led Switch, DIY projects or any circuit controls. Specification:Item Name: Push Button SwitchAction Type: Momentary TypeHead Shape: Hex Flat HeadContact: DPDT(2NO 2NC 1COM)Switch Rating: AC 250V 5ASwitch Color: Silver ToneLamp Voltage: 24VLight Color: RedPin Number: 8Thread Diameter: 22mm/0.87inTotal Size: 40 x 29mm/1.57in x 1.41in(L*Max.W)Material: Copper Nickel Plating

Package Content

1 x Push Button Switch
