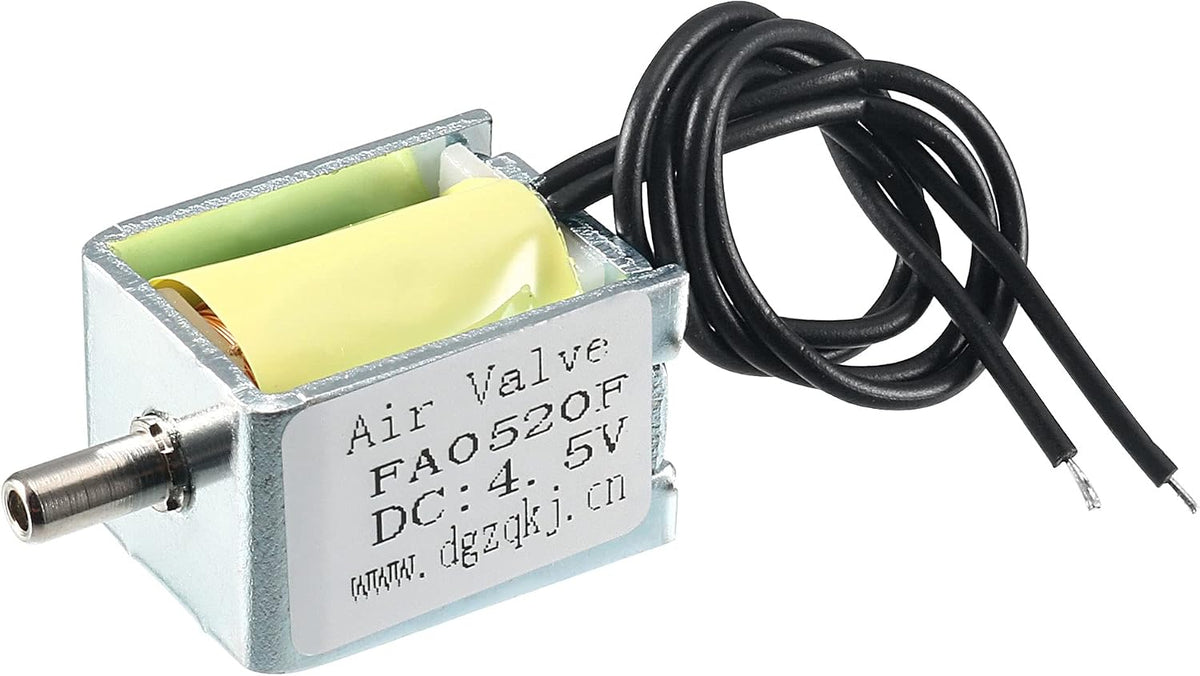

Miniature Solenoid Valve 2 Positions 3 Ways DC4.5V 0.5A Air Solenoid Valve, 2pcs

Miniature Solenoid Valve 2 Positions 3 Ways DC4.5V 0.5A Air Solenoid Valve, 2pcs

Brand: LinkMejor

★★★★☆ 471 ratings | 1 answered questions

$15.89

✓ Secure transaction

🚚 Free delivery available

🔄 30-day returns

📦 Ships from linkmejor.com

Key Features

Rated voltage DC 4.5V ; Rated Current 0.5A ; Type 2 Position 3 Way
Port 1 2 3 Outer DIameter 3mm ; Air Pressure Range：0-350mmHg
Wire Length 6cm / 2.3inch ; Connector Type 2pin , 2.54mm pitch ; Package Content 2 x Solenoid Valve
Power off Port 2-3 pass , 1 is blocked ; Power on Port 1-2 pass, 3 is blocked.
Can be used for gas valve and pump.Widely used in automatic control equipment.

Product Description

Description： It has low vibration and low power consumption.Reliable, compact, and simple to install.Can be used for gas valve and pump.Widely used in automatic control equipment.It will become hot when it works because there are so many coils inside. It’s normal phenomenon. Features：Rated voltage: DC 4.5VRated Current: 0.5AType: 2 Position 3 WayPort 1 2 3 Outer DIameter: 3mmWire Length: 6cm / 2.3inchConnector Type: 2pin , 2.54mm pitch.Air Pressure Range：0-350mmHgTotal Size: 35 x 16 x 15mm / 1.38 x 0.63 x 0.59inch(L*W*H) Solenoid operating instructions:Power off : 2-3 pass , 1 is blocked ; Power on : 1-2 pass, 3 is blocked.
