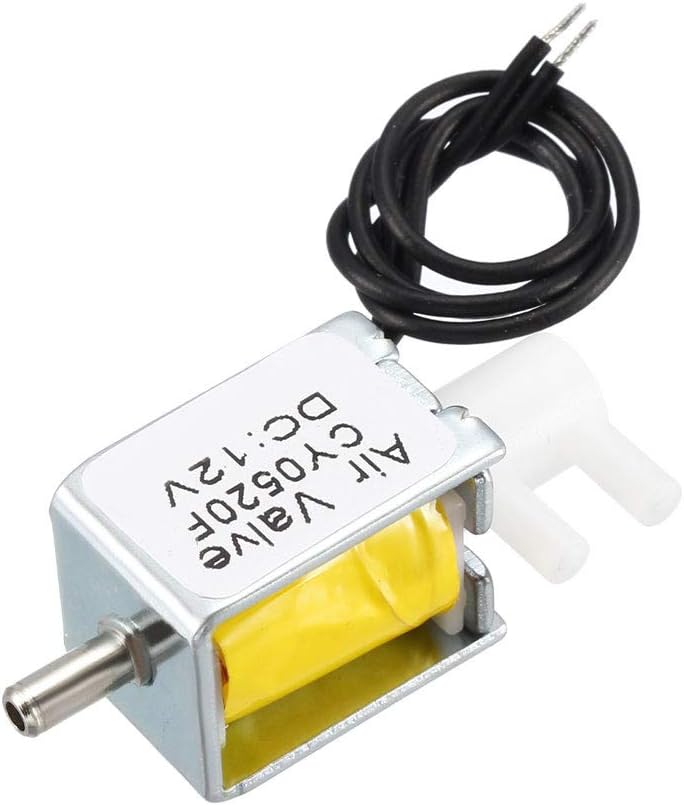

Miniature Solenoid Valve 2 Positions 3 Ways DC12V 0.2A Air Solenoid Valve

Key Features

• Rated voltage DC 12V ; Rated Current 0.2A ; Type 2 Position 3 Way
• Port 1 2 3 Outer DIameter 3mm ; Air Pressure Range：0-350mmHg
• Wire Length 11cm / 4.3inch ; Package Content 1 x Solenoid Valve
• Power off Port 2-3 pass , 1 is blocked ; Power on Port 1-2 pass, 3 is blocked.
• Can be used for gas valve and pump.Widely used in automatic control equipment.

Product Description

Description： It has low vibration and low power consumption.Reliable, compact, and simple to install.Can be used for gas valve and pump.Widely used in automatic control equipment.It will become hot when it works because there are so many coils inside. It’s normal phenomenon. Features：Rated voltage: DC 12VRated Current: 0.2AType: 2 Position 3 WayPort 1 2 3 Outer DIameter: 3mmWire Length: 11cm / 4.3inchAir Pressure Range：0-350mmHgTotal Size: 36 x 17 x 15mm / 1.50 x 0.67 x 0.59inch(L*W*H) Solenoid operating instructions:Power off : 2-3 pass , 1 is blocked ; Power on : 1-2 pass, 3 is blocked.

Note

Wires are not divided for +/- connecting , both can do.

Package Content

1 x Solenoid Valve
