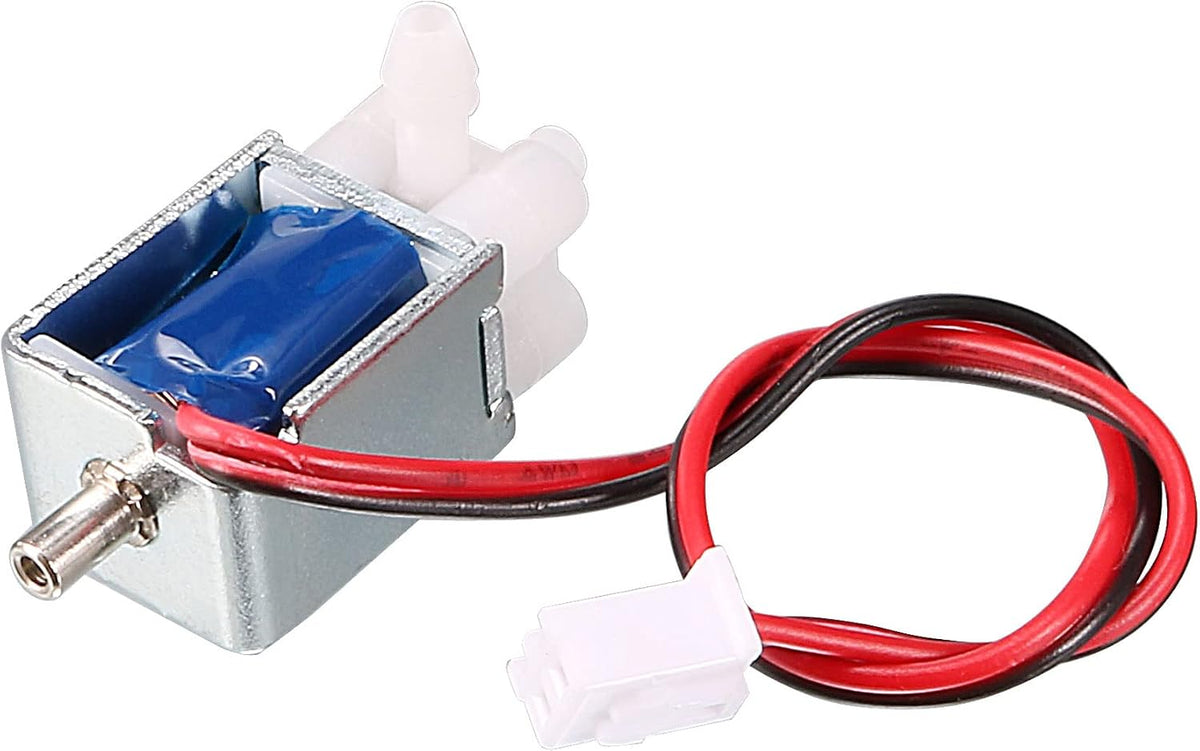

Miniature Solenoid Valve 2 Position 3 Way DC6V 0.38A Air Solenoid Valve

Key Features

• Rated voltage DC 6V ; Rated Current 0.38A ; Type 2 Position 3 Way
• Port 2 Outer DIameter 3mm ; Port 2 Fit for Tube DIameter4mm ; Port 3 Outer DIameter 3mm
• Wire Length 11cm / 4.3inch ; Package Content 1 x Solenoid Valve
• Power off Port 2-3 pass , 1 is blocked ; Power on Port 1-2 pass, 3 is blocked.
• Can be used for gas valve and pump.Widely used in automatic control equipment.

Product Description

Description： It has low vibration and low power consumption. Reliable, compact, and simple to install.It can be used for gas valves and pumps. Widely used in automatic control equipment.It will become hot when it works because there are so many coils inside. It's a normal phenomenon. Features：Rated voltage: DC 6VRated Current: 0.38AType: 2 Position 3 WayPort 2 Outer Diameter: 3mmPort 2 Fit for tube dia:4mmPort 3 Outer Diameter: 3mmWire Length: 11cm / 4.3inchAir Pressure Range：0-350mmHgTotal Size: 34 x 15 x 20mm / 1.34 x 0.59 x 0.79inch(L*W*H) Solenoid operating instructions:Power off: 2-3 pass, 1 is blocked; Power on 1-2 pass, 3 is blocked.

Note

Wires are not divided for +/- connecting, both can do.

Package Content

1 x Solenoid Valve
