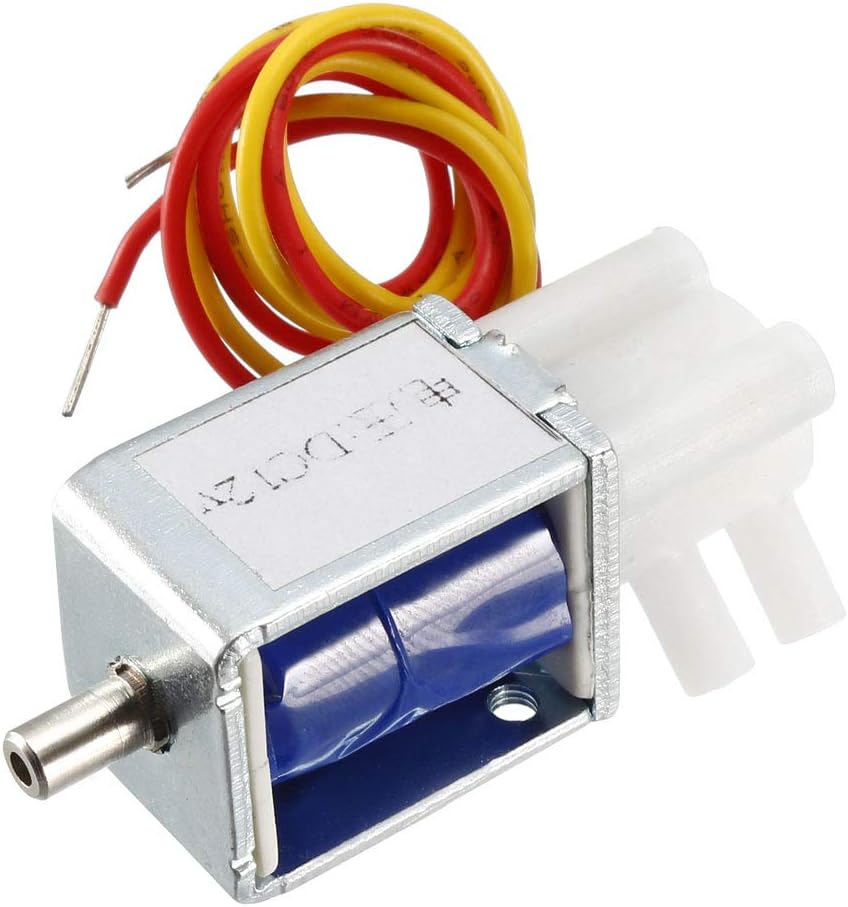

Miniature Solenoid Valve 2 Position 3 Way DC12V 0.19A Water Air Solenoid Valve

Key Features

• Rated voltage DC 12V ; Rated Current 0.19A ; Type 2 Position 3 Way
• Port Inner DIameter 2mm ; Port Outer DIameter 4mm
• Wire Length 24cm / 9.4inch ; Package Content 1 x Solenoid Valve
• Power off Port 2-3 pass , 1 is blocked ; Power on Port 1-2 pass, 3 is blocked.
• Can be used for gas valve and pump.Widely used in automatic control equipment.

Product Description

Description： It has low vibration and low power consumption.Reliable, compact, and simple to install.Can be used for gas valve and pump.Widely used in automatic control equipment.It will become hot when it works because there are so many coils inside. It’s normal phenomenon. Features：Rated voltage: DC 12VRated Current: 0.19APower: <2.3WType: 2 Position 3 WayPort 1, 2, 3 Inner DIameter: 2mmPort 1, 2, 3 Outer DIameter: 4mmWire Length: 24cm / 9.4inchTotal Size: 48 x 20 x 21mm / 1.89 x 0.79 x 0.83inch(L*W*H) Solenoid operating instructions: Power off : 2-3 pass , 1 is blocked ; Power on : 1-2 pass, 3 is blocked.

Note

Wire is not divided for +/- connecting , both can do.

Package Content

1 x Solenoid Valve
