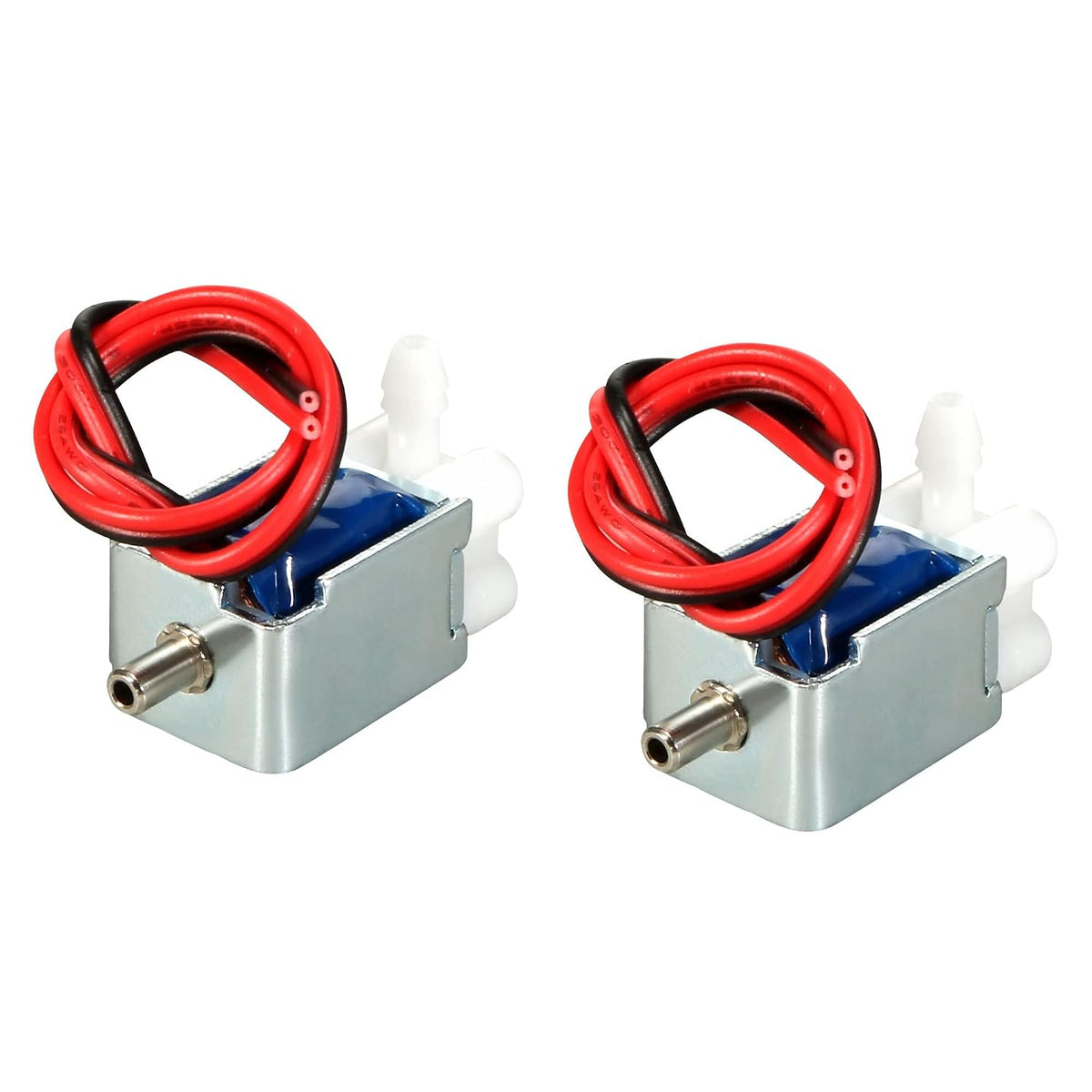

Miniature Solenoid Valve 2 Position 3 Way DC 12V 0.2A Air Solenoid Valve, 2pcs

Key Features

• Rated voltage DC 12V ; Rated Current 0.2A ; Type 2 Position 3 Way
• Port 2 Outer DIameter 3.5mm ; Port 2 Fit for Tube DIameter4mm ; Port 3 Outer DIameter 3.5mm
• Wire Length 11cm / 4.3inch ; Package Content 2 x Solenoid Valve
• Power off Port 2-3 pass , 1 is blocked ; Power on Port 1-2 pass, 3 is blocked.
• Can be used for gas valve and pump.Widely used in automatic control equipment.

Product Description

Description： It has low vibration and low power consumption.Reliable, compact, and simple to install.Can be used for gas valve and pump.Widely used in automatic control equipment.It will become hot when it works because there are so many coils inside. It’s normal phenomenon. Features：Rated voltage: DC 12VRated Current: 0.2AType: 2 Position 3 WayPort 2 Outer DIameter: 3.5mmPort 2 Fit for tube dia:4mmPort 3 Outer DIameter: 3.5mmAir Pressure Range：0-350mmHgWire Length: 11cm / 4.3inchTotal Size: 34 x 15 x 20mm / 1.34 x 0.59 x 0.79inch(L*W*H) Solenoid operating instructions:Power off : 2-3 pass , 1 is blocked ; Power on : 1-2 pass, 3 is blocked.

Note

Wires are not divided for +/- connecting , both can do.

Package Content

2 x Solenoid Valve
