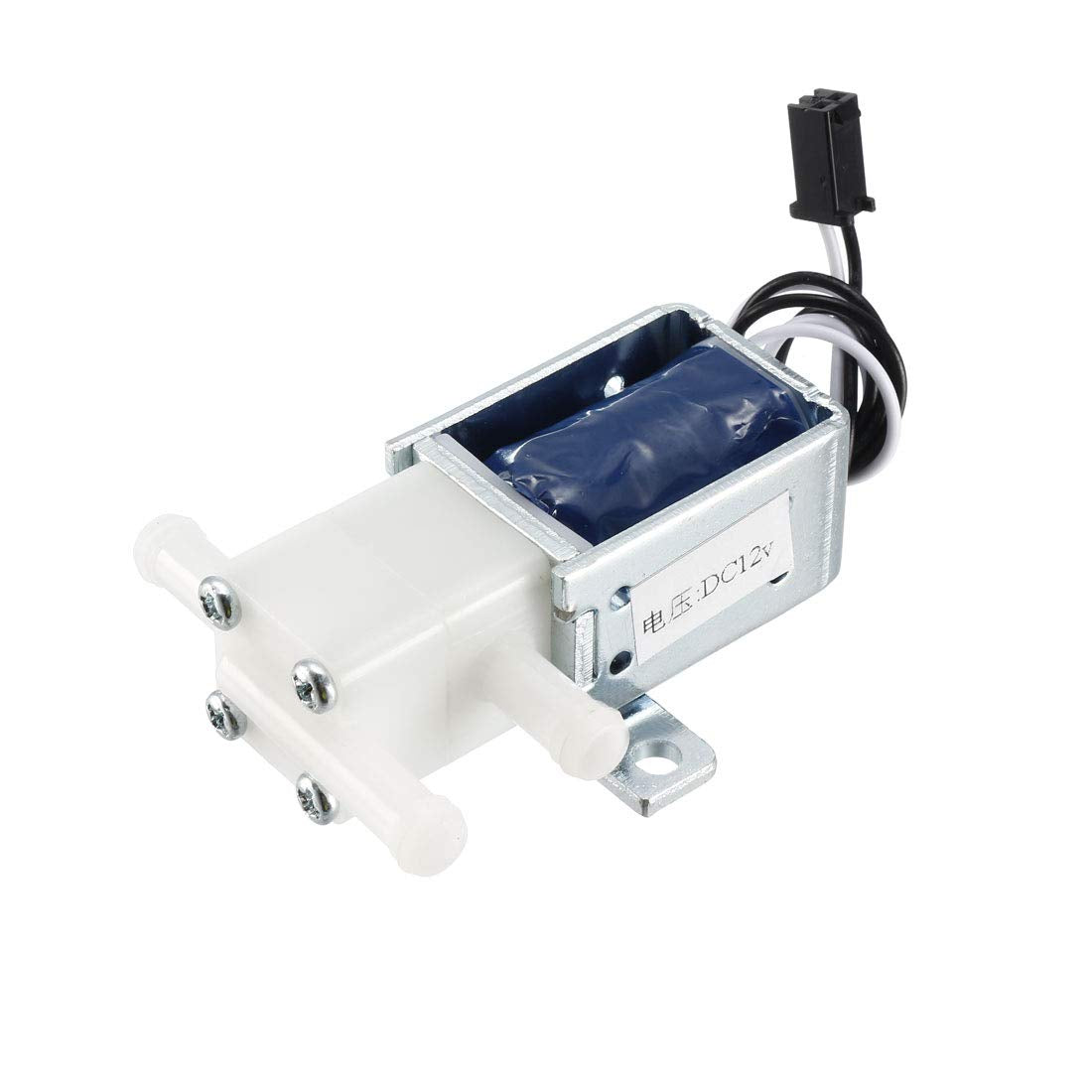

Mini Solenoid Valve 2 Position 3 Way DC12V 0.17A Water Air Solenoid Valve

Key Features

• Rated voltage DC 12V ; Rated Current 0.17A ; Type 2 Position 3 Way
• Port Inner DIameter 4.5mm ; Port Outer DIameter 7.2mm
• Wire Length 20cm / 7.9inch ; Package Content 1 x Solenoid Valve
• Power off Port 2-3 pass , 1 is blocked ; Power on Port 1-2 pass, 3 is blocked.
• Can be used for gas valve and pump.Widely used in automatic control equipment.

Product Description

Description： It has low vibration and low power consumption.Reliable, compact, and simple to install.Can be used for gas valve and pump.Widely used in automatic control equipment.It will become hot when it works because there are so many coils inside. It’s normal phenomenon. Features：Rated voltage: DC 12VRated Current: 0.17APower: 2WType: 2 Position 3 WayConnector Pitch : 2.54mmPort 1, 2, 3 Inner DIameter: 4.5mmPort 1, 2, 3 Outer DIameter: 7.2mmWire Length: 20cm / 7.9inchTotal Size: 63 x 46 x 24mm / 2.48 x 1.81 x 0.94inch(L*W*H) Solenoid operating instructions: Power off : 2-3 pass , 1 is blocked ; Power on : 1-2 pass, 3 is blocked.

Package Content

1 x Solenoid Valve
