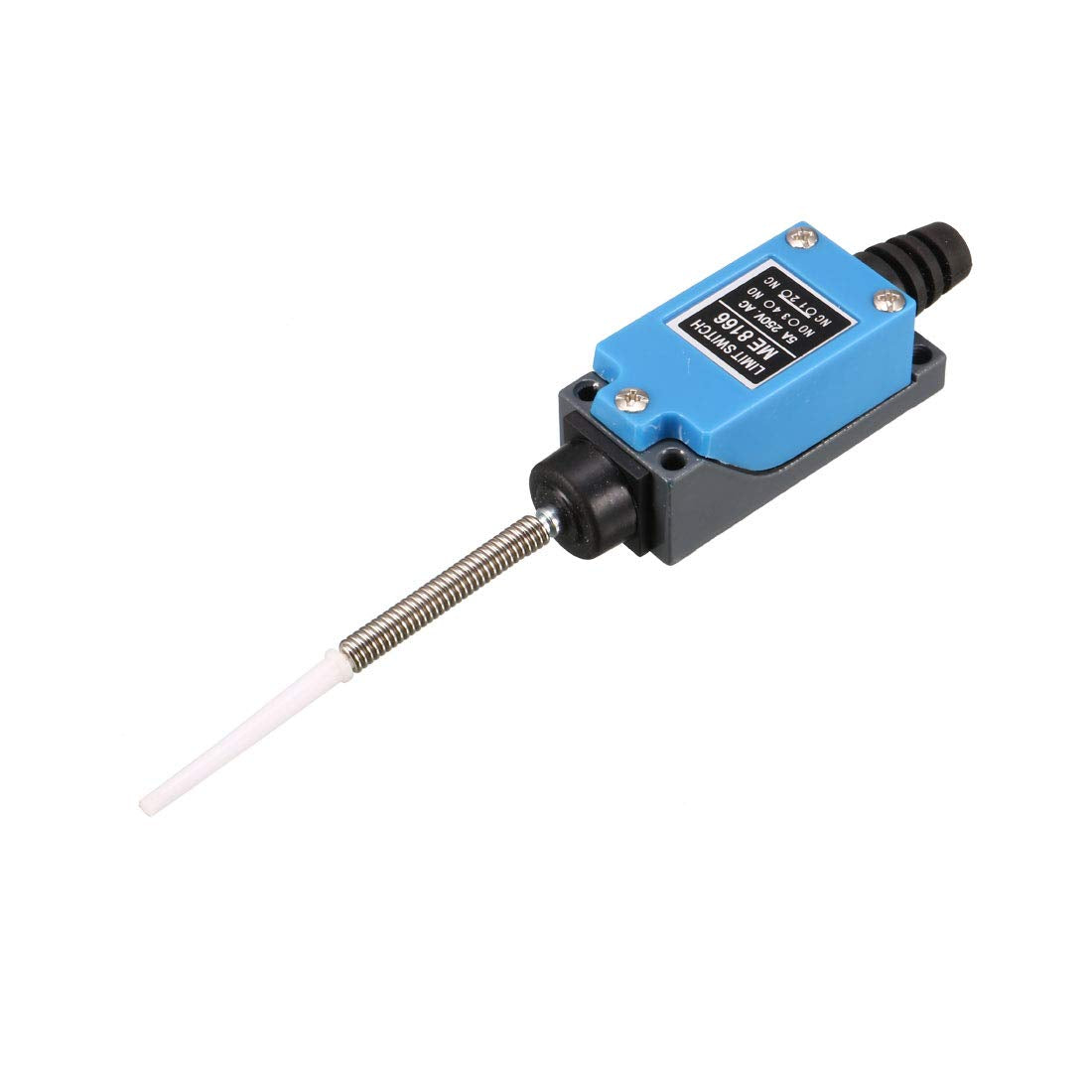

ME-8166 Rod Coil Spring Actuator Momentary Enclosed Limit Switch 1NC + 1NO SPDT for CNC Mill 3D Printer Door Switch

Key Features

• Product Name Limit Switch;Model No. ME-8166;Actuator Action Momentary
• Actuator Type Wobble Stick, Automatic Reset;Contact Type 1NC + 1NO(SPDT);Rated Voltage & Current Rated Voltage & Current
• AC 250V, 5A;Coil Spring Size 6 x 45mm / 1.8" x 3.6"(Dia.*L);Stick Total Length 85mm / 3.3"
• Body Size 88 x 28 x 26mm / 3.5" x 1.1" x 1.0"(L*W*H);Mounting Hole Diameter 4.4mm / 0.17";Mounting Hole Distance 56 x 21mm / 2.2" x 0.83"(L*W)
• Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.

Product Description

This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant. Can be used in safety circuits, control circuit and auxiliary circuit for terminal limit protection. Safe and reliable,dust and oil proof,small installation size,the products are for general use.

Specifications
