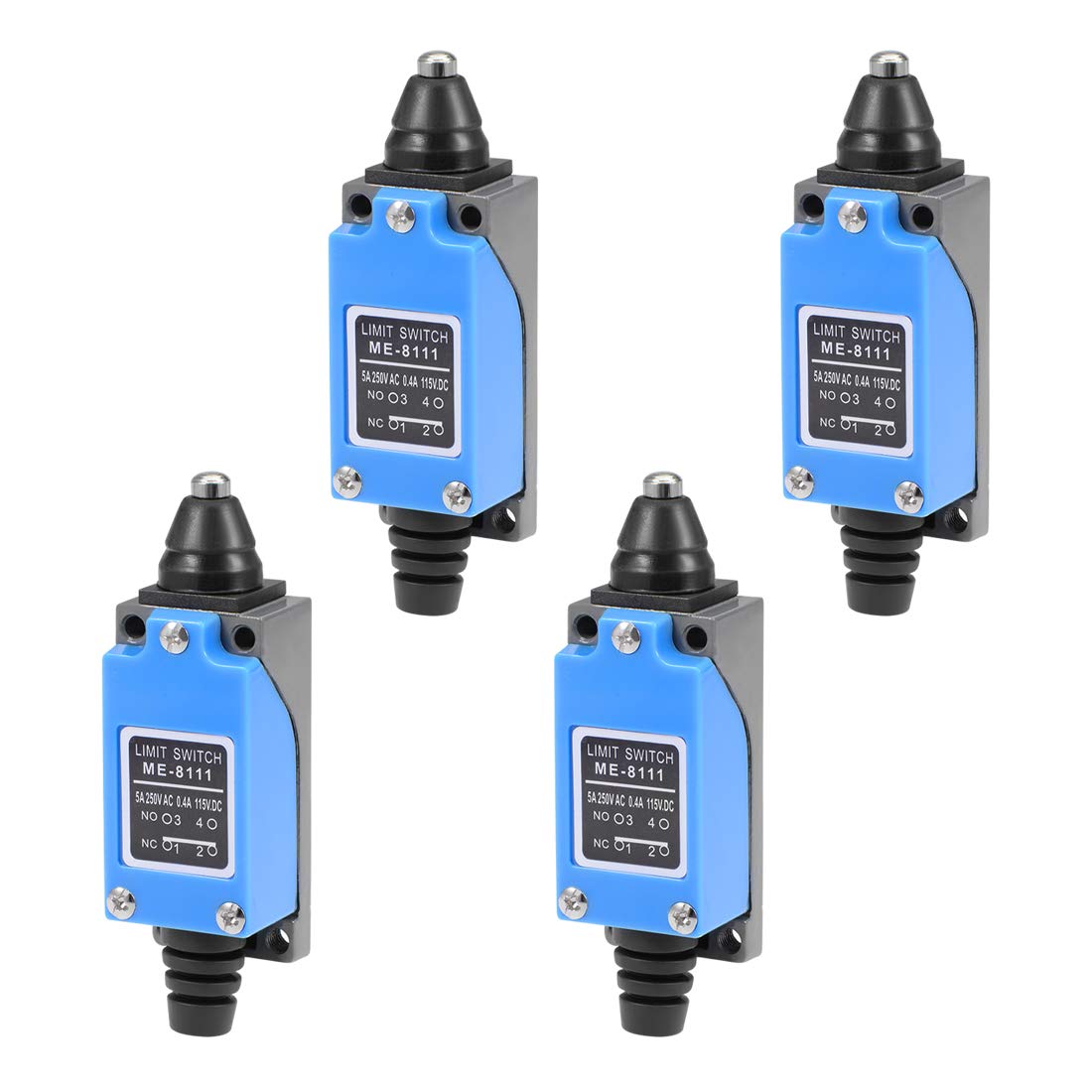

ME-8111 Plunger Momentary Limit Switch 1NC+1NO 4Pcs for CNC Mill 3D Printer Door Switch
Key Features
- Model ME-8111; Plunger Type
- built-in basic switch with good electrical conductivity
- Able to withstand some washdowns, shock and vibration
- Easy-to-wire, smooth operation and reliable
- Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Product Description
Specification:Product Name: Limit SwitchModel: ME-8111Actuator Type: Plunger TypeRated Voltage: 5A 250V AC / 0.4A 115V DCContact Configuration: 1NC+1NOBody Size: 64 x 28 x 25mm (L*W*T)Mounting Hole Size: M5Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W) The plunger operated by hydraulic pressure or air cylinder power detects positions highly accurately.The plunger must be installed according to the movement of the dog so that an incorrect load will not be imposed on the plunger. Operating Characteristics:OF max.: 1100g (10.78N)RF min.: 250g (2.45N)PT max.: 2mmOT min.: 0.6mmMD max.: 1mmOP: 26+/-0.8mm
Description
Double circuit limit switch with build-in double reed mechanism.Zine alloy and intensive plastic shell, strong and hightly rigid construction.Smooth operation with highter OT.Brass contacts with 30% silver contained. Easy-to-wire design.This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
Specifications
| Product Dimensions | 7.48 x 3.94 x 1.97 inches |
