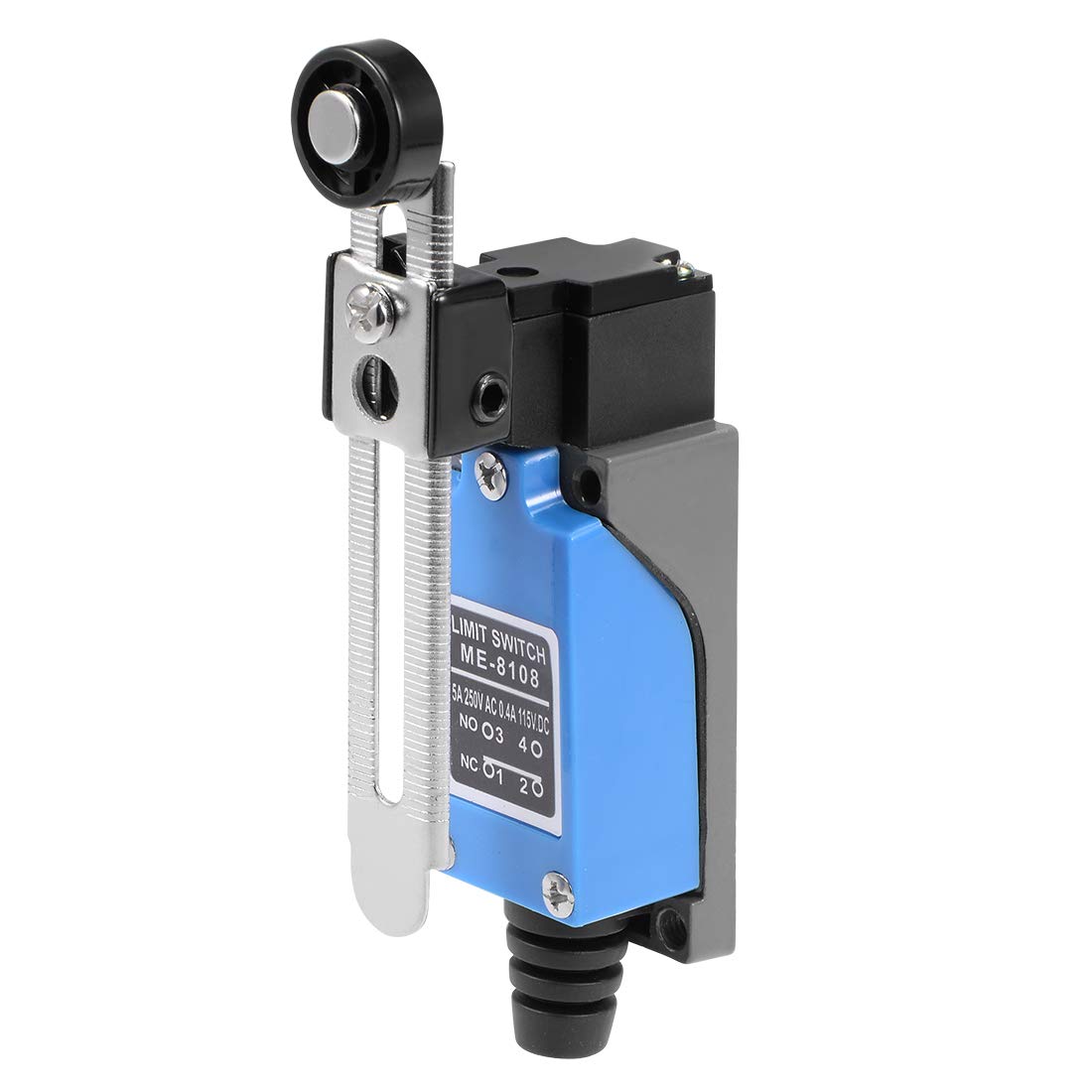

ME-8108 Adjustable Roller Lever Arm Momentary Limit Switch 1NC+1NO for CNC Mill 3D Printer Door Switch

Key Features

• Model ME-8108; Plastic Wheel Adjustable Roller Lever
• built-in basic switch with good electrical conductivity
• Able to withstand some washdowns, shock and vibration
• Easy-to-wire, smooth operation and reliable
• Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.

Product Description

Specification:Product Name: Limit SwitchModel: ME-8108Actuator Type: Plastic Wheel Adjustable Roller Lever TypeRated Voltage: 5A 250V AC / 0.4A 115V DCContact Configuration: 1NC+1NOBody Size: 64 x 28 x 25mm (L*W*T)Mounting Hole Size: M5Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W) The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.These roller lever limit switches are applied to a wide range of applications including object positioning and detection.The length of the lever is adjustable. Operating Characteristics:OF max.: 800g (7.84N)RF min.: 60g (0.59N)PT max.: 30°OT min.: 60°MD max.: 15°TT: 90°

Description

Double circuit limit switch with build-in double reed mechanism.Zine alloy and intensive plastic shell, strong and hightly rigid construction.Smooth operation with highter OT.Brass contacts with 30% silver contained. Easy-to-wire design.This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
