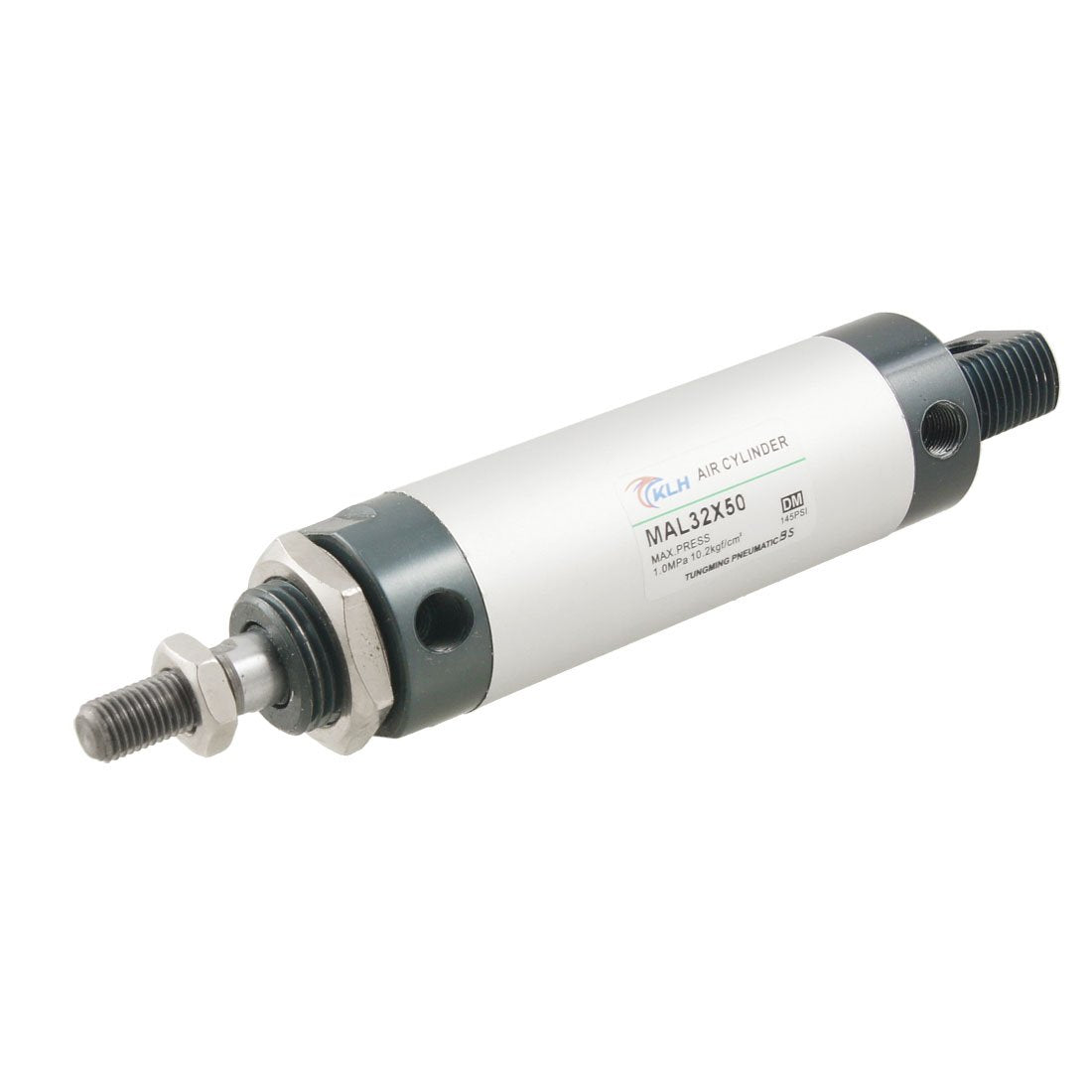

MAL32x50 32mm Bore 50mm Stroke Single Rod Double Action Air Cylinder

Key Features

• Product Name Pneumatic Cylinder;Model MAL32 x 50;Action Type Double Acting;Rod Type Single Rod
• Fluid Air;Power Pneumatic;Bore 32mm / 1.25";Stroke 50mm / 1.9"
• Max.Pressure 1.0MPa / 10.2Kg/cm2/ 145PSI;Rod Diameter 12mm / 0.47";Rod Thread Diameter 10mm / 0.39";Air Hole Diameter 8.8mm / 0.35"
• Blue End Thread Diameter 23.8mm / 0.93";Blue End Hole Diameter 10mm / 0.39";Size 190 x 37mm/ 7.5" x 1.45" (L*D);Material Stainless Steel
• Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.

Product Description

This Cylinder

features

32m bore and 50mm stroke, 1.0Mpa pressure, double acting, single rod. Two screw hole connections to get the air in and out, and a rod connected to the plunger that goes in and out. Cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
