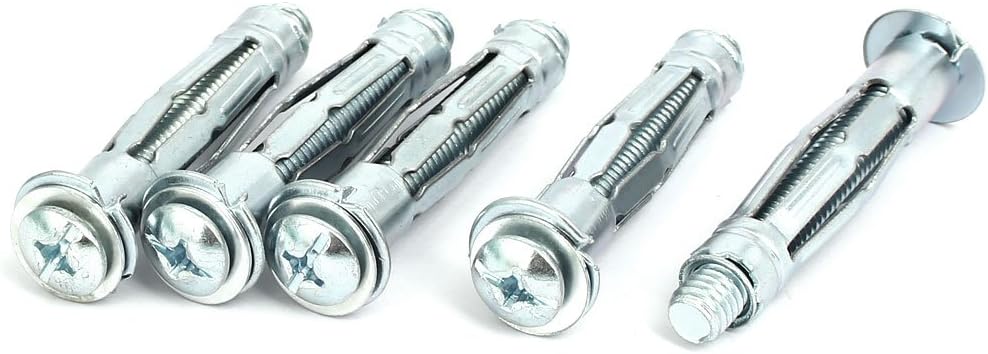

M8x52mm Expansion Bolt Sleeve Anchor 5pcs for 3mm-16mm Hollow Wall

Key Features

• Main Color Silver Tone; Material Metal
• Package Content 5pcs x Expansion Bolt; Product Name Expansion Bolt
• Weight 148g; Dimension 17.5 x 63mm / 0.7" x 2.48"(Max.D*L)
• Suitable Thickness 3mm-16mm / 0.12"-0.63"; Sleeve Size 10 x 52mm / 0.4" x 2.05"(D*L)
• Thread Size M8 x 50mm / 0.31" x 2"(D*L)

Product Description

Expansion anchor bolt.Features a round slotted/Phillips head.The working principle of expansion screw: Put the expansion screw into hollow wall and then tighten the nuts of the expansion bolt with wrench. The bolt goes outside while the metal sheath does not move. Thus the bigger head of the bolt will expand the metal sheath, making it fill the whole hole. Now, the expansion screw can not be pulled out.
