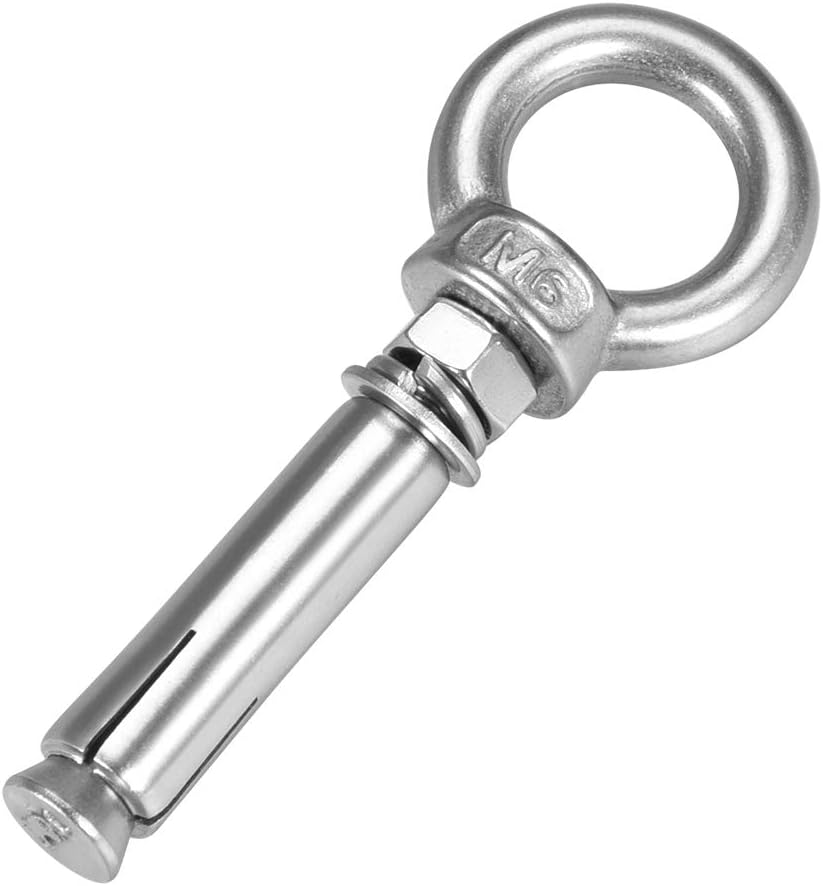

M6 x 50 Expansion Eyebolt Eye Nut Screw with Ring 304 Stainless Steel Anchor Raw Bolts 1 Pcs

Key Features

• Main Size. Standard M6 expansion bolts with 75mm length, and the ring Inner Diameter is 16mm.
• Materials. Made of premium 304 stainless steel, provides a rust protection and precise size.
• Installation. Suggested a 10mm Dia. hole for drilling, and tight the anchor bolt with a wrench after putting the screw. The bolt transfers forces to the sleeve, with the expansion of sleeve, a solid connection has been built between a concrete wall and the wedge anchor nut.
• Application. Fit the concrete wall or masonry, for hanging or lefting the super heavy things like a big shelf. It's durable and reliable.
• Details. The eye type is drop forged eye, such eye bolts are designed to attach a securing eye to a structure and then tie to ropers or cables.

Product Description

Screw Size: M6Overall Length: 75mmEye Nut Height: 30mmInner diameter of the ring: 16mmSleeve Inner Diameter: 6mmSleeve Length: 35mmSuggested Hole Size: 10mm Dia.Total Weight: 36gMaterials: 304 Stainless SteelApplication: Concrete and masonry

Package Content

1 x pcs M6 x 50 Expansion Eye Bolt

Specifications
