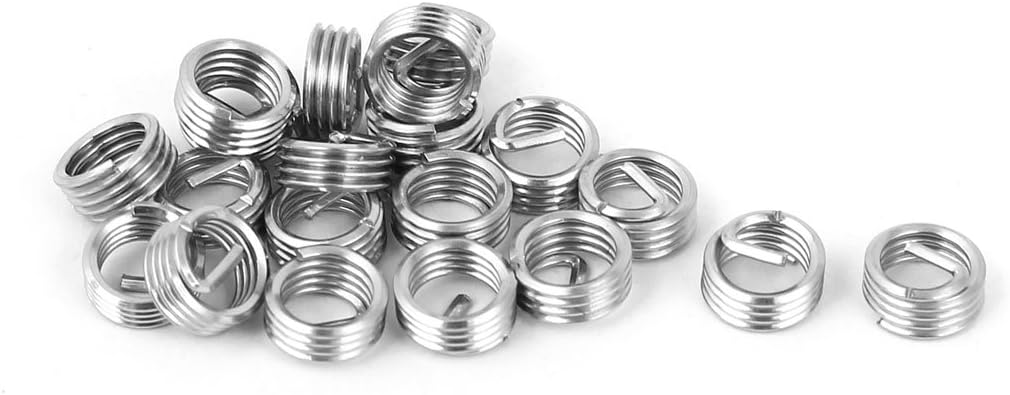

M5 x 0.8mm x 1D 304 Stainless Steel Helicoil Wire Thread Insert 20pcs

Key Features

• Product Name Wire Thread Insert; Material 304 Stainless Steel
• Weight 5g; Package Content 20 x Wire Thread Inserts
• Outer Thread Dia 6mm/0.24"; Inner Thread Dia M5 x 0.8mm
• Overall Length 3mm/0.12"; Main Color Silver Tone
• Metric Dia. 1D; Fit Drilling Diameter 5mm/0.2"

Product Description

Stainless Steel material, wire Thread Repair Inserts.Produced from precision profiled austenitic stainless steel wire wound into a helical spiral, free running inserts have a spring like appearance. When installed using any one of a variety of manual or automatic tools they provide strong permanent internal threads which resist heat and corrosion. Once fitted their position is maintained by the action of radial pressure between their coils and the flanks of the tapped hole.

Specifications
