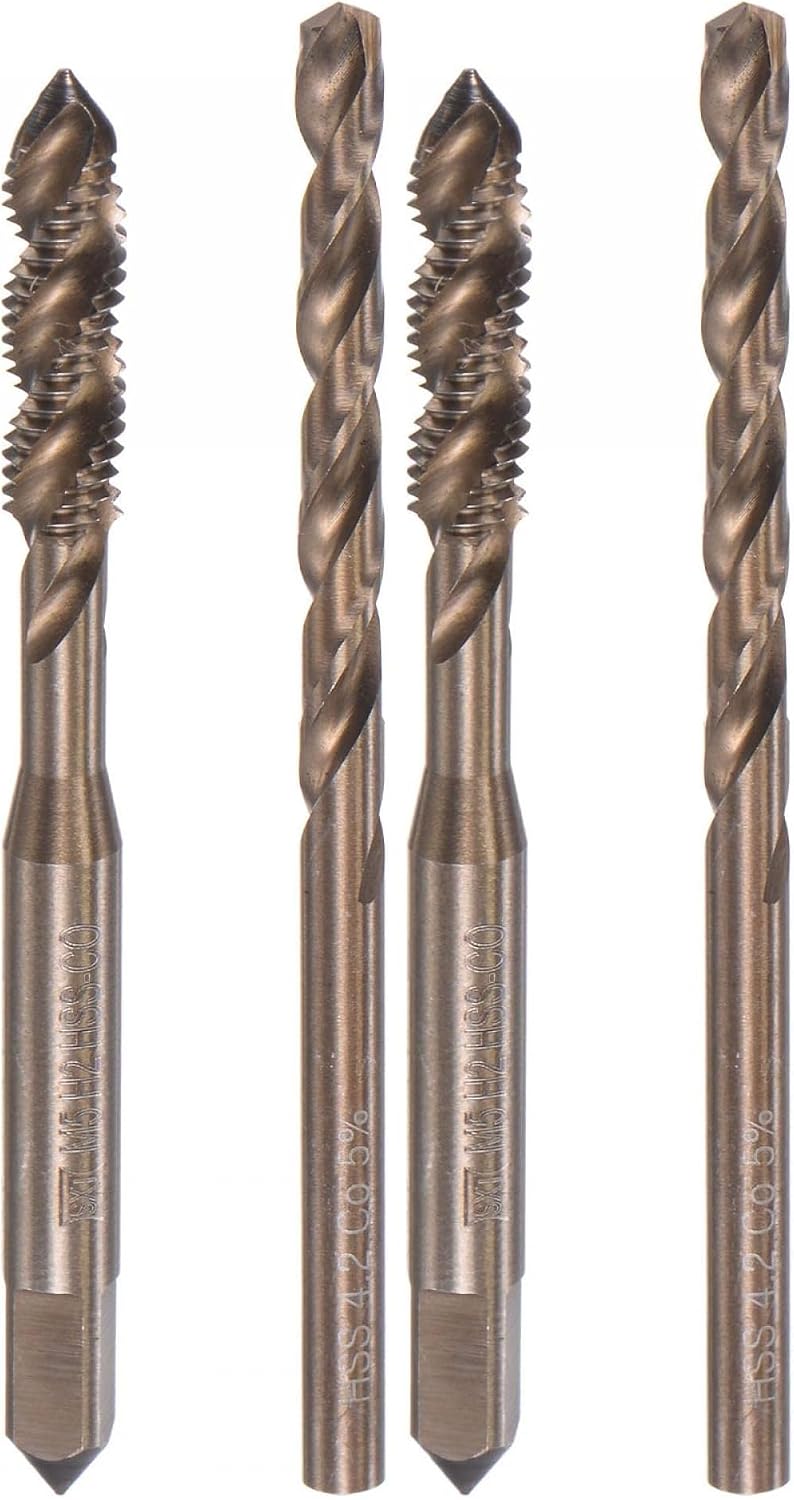

M5 x 0.8 Spiral Flute Tap and 4.2mm Twist Drill Bit Set, Metric M35 Cobalt High Speed Steel Machine Threading Screw Thread Tap Tool for Stainless Steel (Pack of 2)

Key Features

• The information below is per-pack only
• Tap and Drill Bit Tap thread size M5 x 0.8, drill bit diameter 4.2mm / 0.17". Cobalt high speed steel tool features high hardness (HRC65-66) and high red hardness, high wear resistance.
• Spiral Flute Tap Spiral flute design, upward chip removal, right hand thread cutting, fast tapping with accuracy. Suitable for processing blind holes and sticky materials, and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc.
• Twist Drill Bit Spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting and no glitches. Chips are not easy to stick to the tool.
• Usage of Tap Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection.
• Tips of Drill Bit Suitable lubricant is conducive to cutting or cooling, making cutting easier, improving smoothness and dimensional accuracy. Select an appropriate feed rate and cutting speed to improve the tool life.

Product Description

Specifications

Spiral Flute Tap: Thread Size: M5 x 0.8; Thread Length: 20mm / 0.79"; Square End Size: 4mm / 0.16"; Total Length: 62mm / 2.44" Material: M35 Cobalt High Speed Steel (HSS); Cutting Direction: Right Hand Twist Drill Bit: Cutting Edge Diameter: 4.2mm / 0.17"; Shank Diameter: 4.2mm / 0.17" Cutting Edge Length: 34mm / 1.34"; Total Length: 73mm / 2.87" Material: M35 Cobalt High Speed Steel (HSS)

Package Content

1pcs x Spiral Flute Tap, 1pcs x Twist Drill Bit

Descriptions

Spiral flute design, upward chip removal, right hand thread cutting, fast tapping with accuracy. Suitable for processing holes and sticky materials, and tapping stainless steel, aluminum, die steel, bronze, hard plastics, etc.. Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force. Spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting and no glitches. Chips are not easy to stick to the tool. Cobalt high speed steel tool features high hardness (HRC65-66) and high red hardness, high wear resistance, good for general purpose applications. Suitable lubricant is conducive to cutting or cooling, making cutting easier, improving smoothness and dimensional accuracy. Combined with the material to be processed, select an appropriate feed rate and cutting speed to improve the tool life and obtain better processing accuracy and performance.
