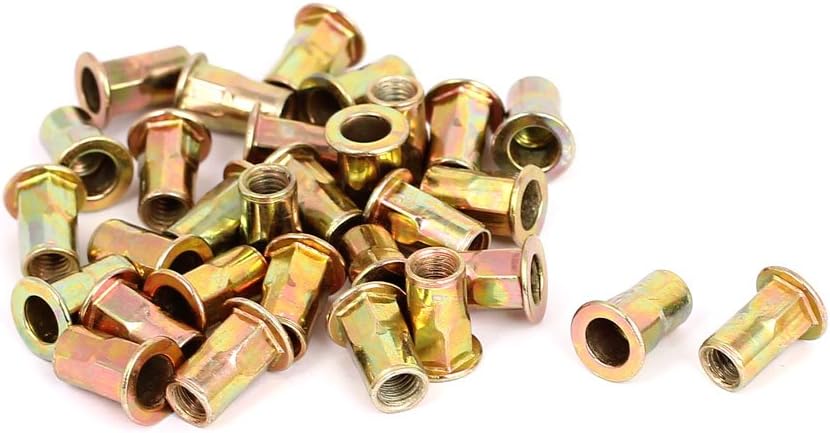

M5 Flat Head Half Hex Body Open End Threaded Rivet Nuts Nutserts 30pcs

Brand: LinkMejor

★★★★☆ 74 ratings | 4 answered questions

$6.89

✓ Secure transaction

🚚 Free delivery available

🔄 30-day returns

📦 Ships from linkmejor.com

Key Features

Thread Size (d) M5/ 0.2"; Product Name Rivet Nut; Material Carbon Steel, Zinc Plated
Weight 54g; Package Content 30 x Rivet Nuts; Main Color Bronze Tone
Flange Size (dk*k) 10 x 0.9mm/ 0.4" x 0.035" (D*Thickness); Thread Pitch 0.8mm
Total Length (L) 13mm/ 0.5"; Hex Body Size (M) 6.8mm/ 0.27"
Application Hole Size 5.5mm/ 0.22"; Round Body Diameter (D) 6.8mm/ 0.27"

Product Description

Flat head cap screws, M5 female thread diameter, 13mm total length, zinc plated surface,carbon steel half hex body insert rivets nuts.These half hex body nutserts have large flange to provide increased strength in punched and drilled holes.Blind threaded inserts are designed to provide strong threads in thin panel sections. They are called blind because they can be installed from one side of the panel. Access to both sides is not required. That is why these fasteners are ideally suited for tubing, extrusion, and other similar types of applications.
