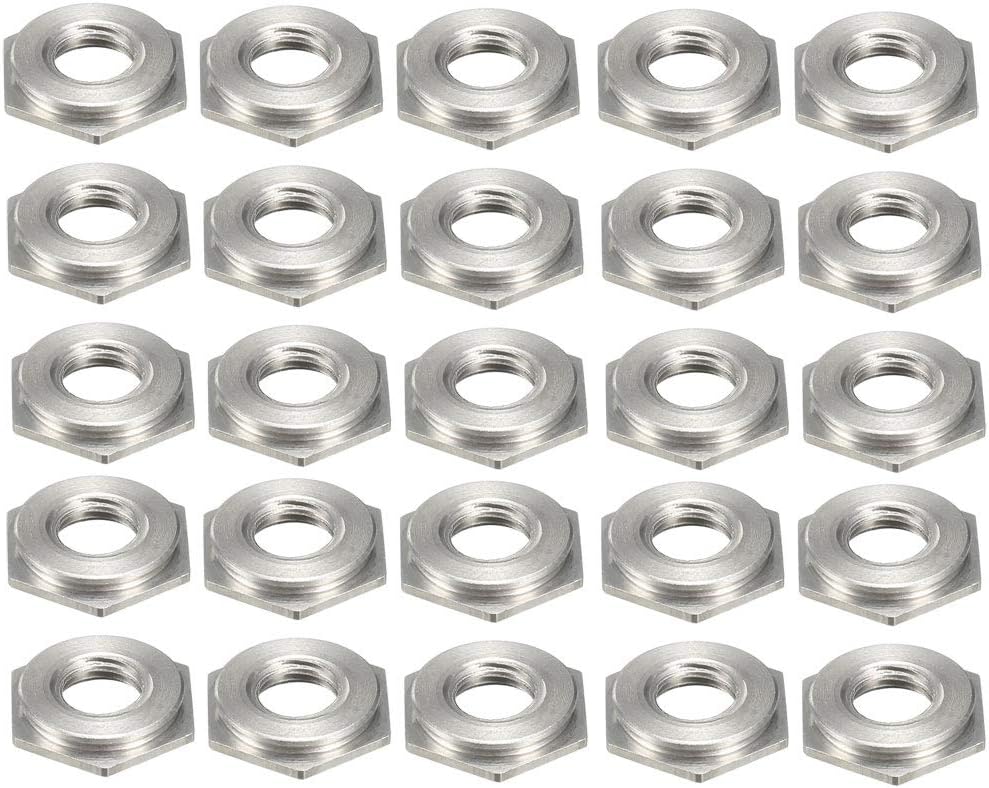

M4 x 0.7mm Pitch Hex Head Carbon Steel Blind Hole Self Clinching Standoff Nuts FS-M4-1, 1.5mm Height Pack of 25

Key Features

• Thread Size M4 x 0.7mm.
• Width Measured From Flat to Flat 8mm / 0.31"
• Overall Height 1.5mm / 0.06"
• Suitable for 1mm thick mounting plate, the mounting hole diameter is about 7.2mm.
• Great for applications where a thin sheet requires load-bearing threads but still must remain smooth, with no protrusions on either surface.

Product Description

These standoffs, w use the proven self-clinching design, install with a squeeze in punched or drilled round holes and become permanently mounted in the thin sheet.There is the intersection of the hexagon and the cylinder, w makes the riveting effect more firm and not easy to loosen.When blind-threaded types are used, outer sheet surfaces are not only flush, but closed as well. Specification:Product Name: Self Clinching StandoffMaterial: Carbon SteelFinish: Zinc PlatedThread Size: M4Thread Pitch: 0.7mmHex Width: 8mm / 0.31"Overall Height: 1.5mm / 0.06"Cylindrical Outer Diameter: 7.2mm / 0.28"Fit for board thickness: 1mm / 0.04"Mounting Hole Diameter:1.5-2.3mm /0.06-0.09"

Package Content

25 pcs x Self Clinching Standoff

Specifications
