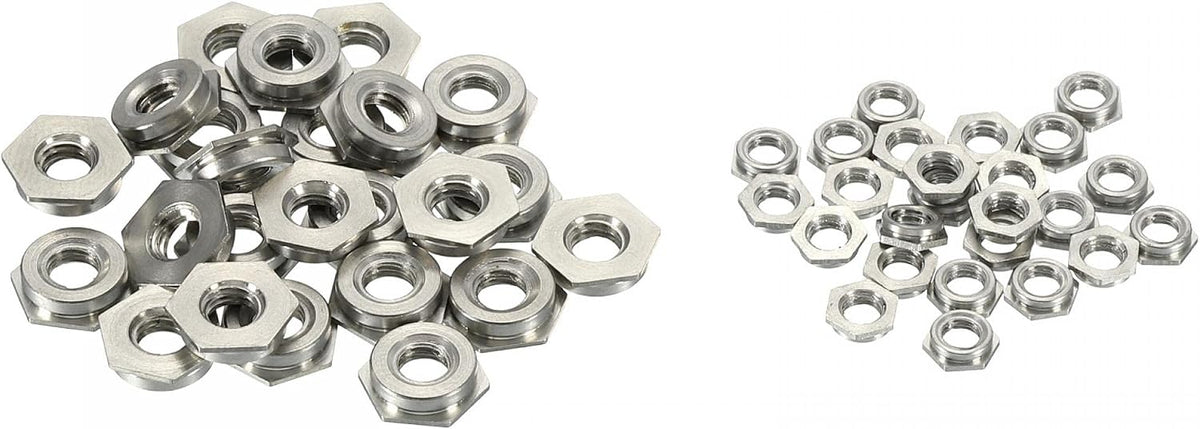

M4 x 0.7mm FS-M4-2 and M3 x 0.5mm FS-M3-1 Pitch Hex Head Carbon Steel Blind Hole Self Clinching Standoff Nuts,50 in 1 Set

Key Features

• SpecificationsProduct Name Self Clinching Standoff;Material Carbon Steel;Finish Zinc Plated;Fit for board thickness 1mm / 0.04"
• DescriptionThese standoffs, which use the proven self-clinching design, install with a squeeze in punched or drilled round holes and become permanently mounted in the thin sheet.
• FeatureMakes the riveting effect more firm and not easy to loosen.
• Package Content 25 Pieces For Each Size
• ApplicationWhen blind-threaded types are used, outer sheet surfaces are not only flush, but closed as well. Unthreaded standoffs are also available for spacing multi-panel assemblies.

Product Description

Specifications

Product Name: Self Clinching StandoffMaterial: Carbon SteelFinish: Zinc PlatedFit for board thickness: 1mm / 0.04"Specification1:Thread Size: M3Thread Pitch: 0.5mmHex Width: 4.7mm / 0.19"Overall Height: 1.5mm / 0.06"Cylindrical Outer Diameter: 4.2mm / 0.17"Mounting Hole Diameter: 1.5-2.3mm / 0.06-0.09"Specification2:Thread Size: M4Thread Pitch: 0.7mmHex Width: 8mm / 0.31"Overall Height: 2.3mm / 0.09"Cylindrical Outer Diameter: 7.2mm / 0.28"Mounting Hole Diameter:2.3+mm / 0.09"

Description

These standoffs, which use the proven self-clinching design, install with a squeeze in punched or drilled round holes and become permanently mounted in the thin sheet.Feature:Makes the riveting effect more firm and not easy to loosen. Application:When blind-threaded types are used, outer sheet surfaces are not only flush, but closed as well. Unthreaded standoffs are also available for spacing multi-panel assemblies.

Package Content

25 Pieces For Each Size
