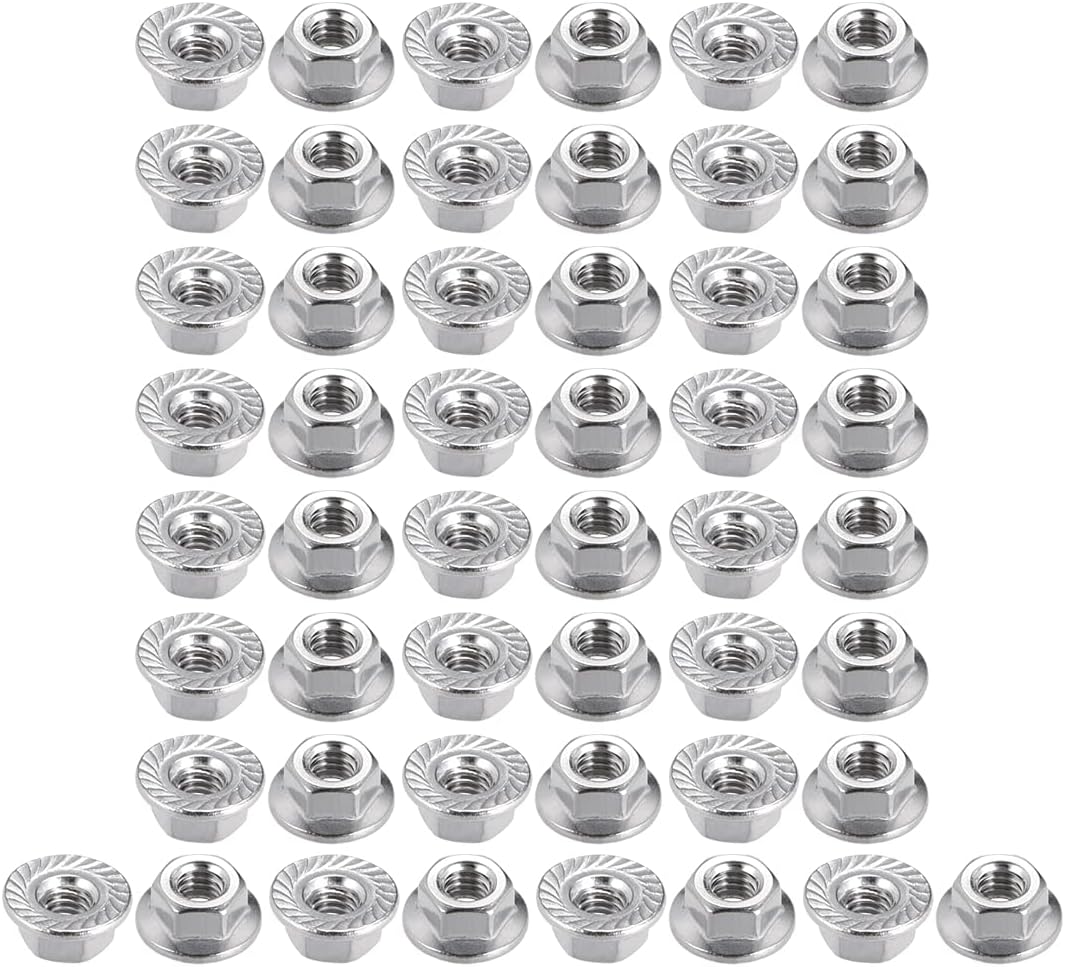

M4 Serrated Flange Hex Lock Nuts, 201 Stainless Steel, 50 Pcs
Key Features
- Fastener Type Hex Serrated Flange Nut
- Thread Diameter M4; Thread Pitch 0.7mm; Flange Diameter(A) 10mm/0.39"
- Width Across Flat Size (B) 7mm;Nut Height (M) 4mm
- Made of stainless steel 201, wear-resisting and durable to use.
- Self-locking serrated flange digs into the material being fastened to help prevent loosening.
Product Description
A flange nut is a nut that has a wide flange at one end that acts as an integrated, non-spinning washer. This serves to distribute the pressure of the nut over the part being secured, reducing the chance of damage to the part and making it less likely to loosen as a result of an uneven fastening surface.The flange may be serrated to provide a locking action. The serrations are angled such that they keep the nut from rotating in the direction that would loosen the nut. Because of the serrations they cannot be used with a washer or on surfaces that cannot be scratched. The serrations help in avoiding vibration of nut and increase the holding power of nut. Specification:Product Name: Hex Flange NutMaterial: 201 Stainless SteelMain Color : Silver ToneThread Size : M4 (D)Pitch: 0.7mmHeight : 4mm / 0.16"Hex Width: 7mm / 0.28"Flange Diameter: 10mm / 0.4"
Package Content
50(+/-2%)pcs x Hex Flange Nut
Specifications
| Item Weight | 0.07 Kilograms |
| Product Dimensions | 3.94 x 3.15 x 0.39 inches |
