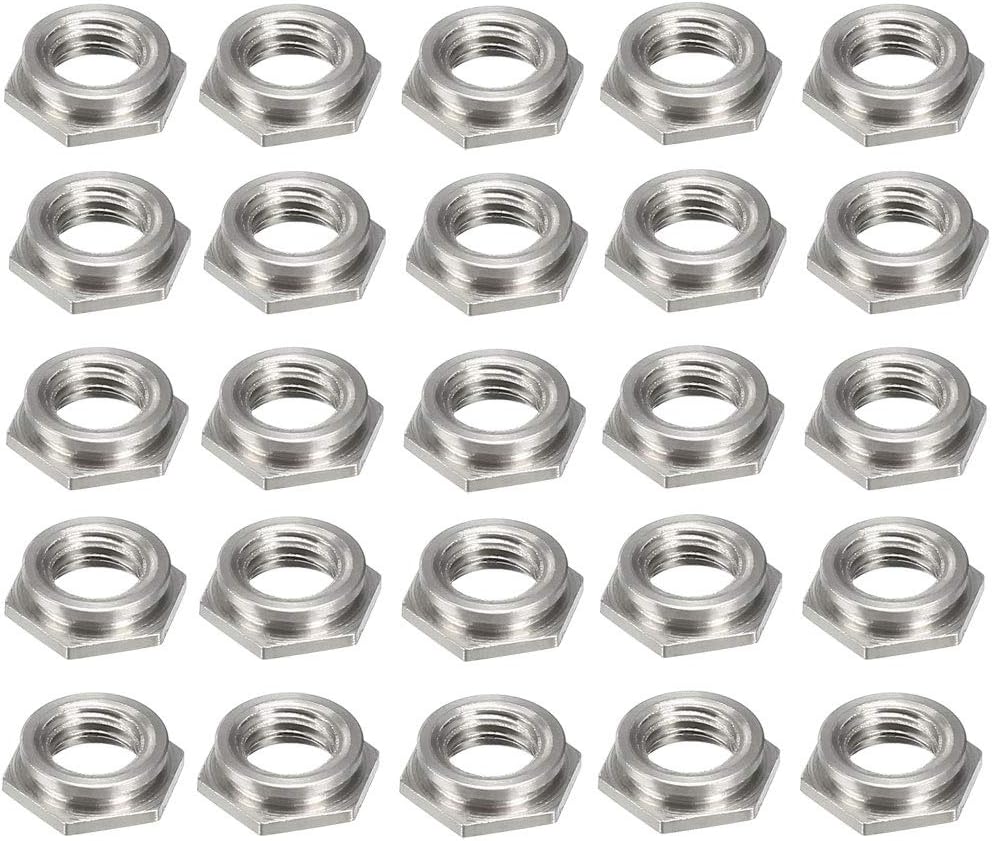

M3 x 0.5mm Pitch Hex Head Carbon Steel Blind Hole Self Clinching Standoff Nuts FS-M3-1, Pack of 25

M3 x 0.5mm Pitch Hex Head Carbon Steel Blind Hole Self Clinching Standoff Nuts FS-M3-1, Pack of 25

Brand: LinkMejor

★★★★☆ 330 ratings | 10 answered questions

$6.15

✓ Secure transaction

🚚 Free delivery available

🔄 30-day returns

📦 Ships from linkmejor.com

Key Features

Pitch 0.5mm.
Width Measured From Flat to Flat 4.7mm / 0.19"
Overall Height 1.5mm / 0.06"
Suitable for 1mm thick mounting plate, the mounting hole diameter is about 4.2mm.
for applications where a thin sheet requires load-bearing threads but still must remain smooth, with no protrusions on either surface.

Product Description

These standoffs, which use the proven self-clinching design, install with a squeeze in punched or drilled round holes and become permanently mounted in the thin sheet.There is an escrape at the intersection of the hexagon and the cylinder, which makes the riveting effect more firm and not easy to loosen.When blind-threaded types are used, outer sheet surfaces are not only flush, but closed as well. Unthreaded standoffs are also available for spacing multi-panel assemblies. Specification:Product Name: Self Clinching StandoffMaterial: Carbon SteelFinish: Zinc PlatedThread Size: M3Thread Pitch: 0.5mmHex Width: 4.7mm / 0.19"Overall Height: 1.5mm / 0.06"Cylindrical Outer Diameter: 4.2mm / 0.17"Fit for board thickness: 1mm / 0.04"Mounting Hole Diameter: 1.5-2.3mm / 0.06-0.09"
