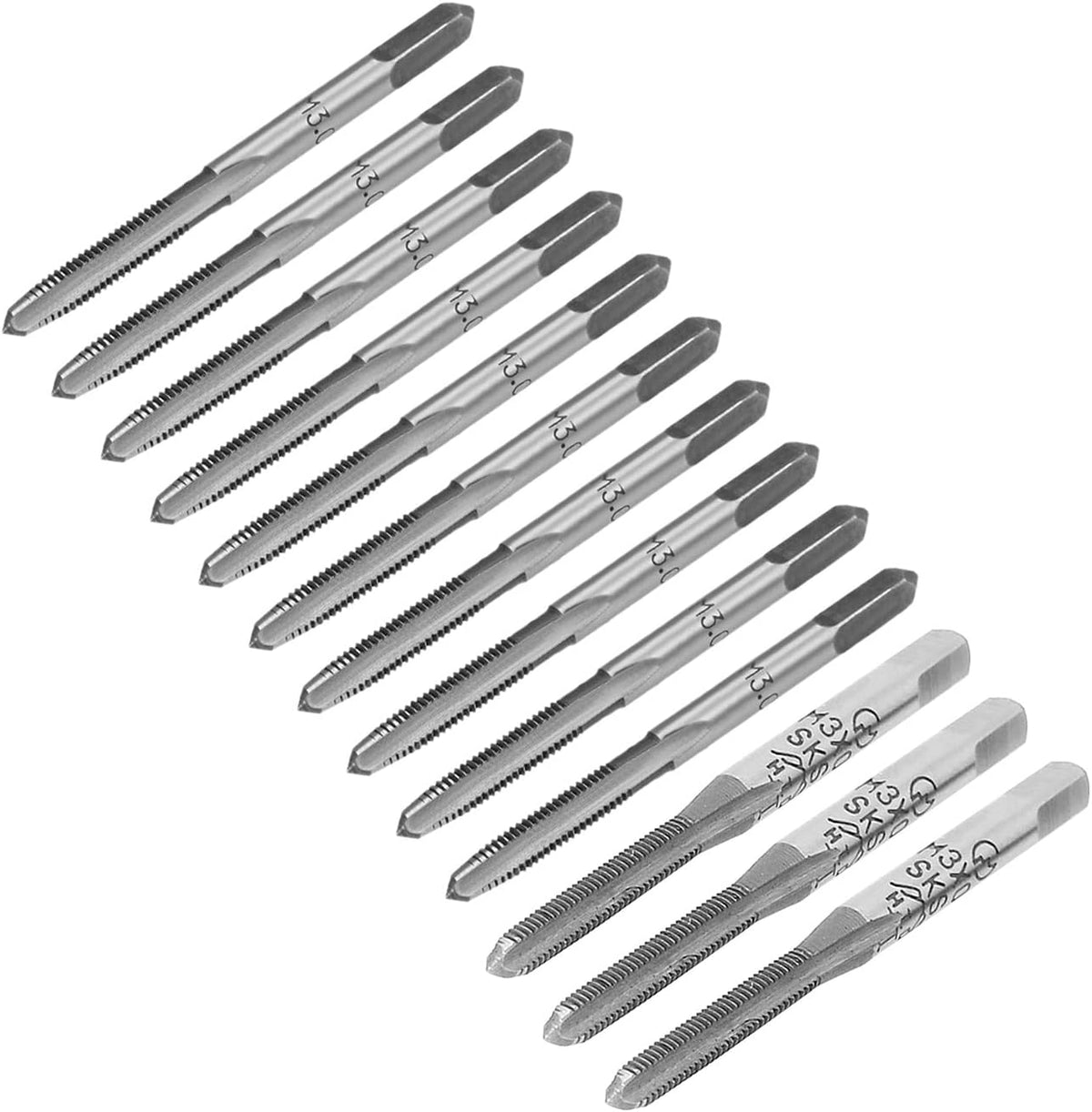

M3 x 0.5 Metric Hand Tap 3 Straight Flutes H2 HSS & SKS2 Bottoming Taper Hand Set 8 Pcs

Key Features

• HSS Metric Hand Tap Shank Side Width 2.3mm / 0.1";Thread Length 14mm / 0.55";Total Length 40mm / 1.57"
• SKS2 Metric Hand Tap Square End Size 3 x 3mm / 0.12" x 0.12"(L*W);Shank Diameter 4mm / 0.16";Overall Length50mm / 2"
• Taper Style Starts the thread square with the workpiece. Plug Style Generally used in through holes.
• Hand tap is used to re-thread damaged or jammed threads, also be used to thread mild steels.
• Mainly used for hand use, tapping the vast majority of materials in through or blind holed conditions.

Product Description

Feature:Taper Style: Starts the thread square with the workpiece.Plug Style: Generally used in through holes.Hand tap is used to re-thread damaged or jammed threads, also be used to thread mild steels.Mainly used for hand use, tapping the vast majority of materials in through or blind holed conditions.Specification:(1) HSS Metric Hand TapMaterial: High Speed Steel (HSS)Pitch Size: 0.5Thread Size: M3Shank Side Width: 2.3mm / 0.1"Thread Length: 14mm / 0.55"Total Length: 40mm / 1.57"(2) SKS2 Metric Hand Tap Product Name: HandMaterial: SKS2Color: Silver ToneThread Type: Bottoming , TaperNumber of Flutes: 3Flute Diameter: M3(3mm)Flute Length(Approximately): 20mm/ 0.8"Pitch Size: 0.5mmSquare End Size: 3 x 3mm / 0.12" x 0.12"(L*W)Shank Diameter: 4mm / 0.16"Overall Length:50mm / 2"Package Contents:5 x HSS Metric Hand Tap3 x SKS2 Metric Hand Tap2 x Plastic Storage Case
