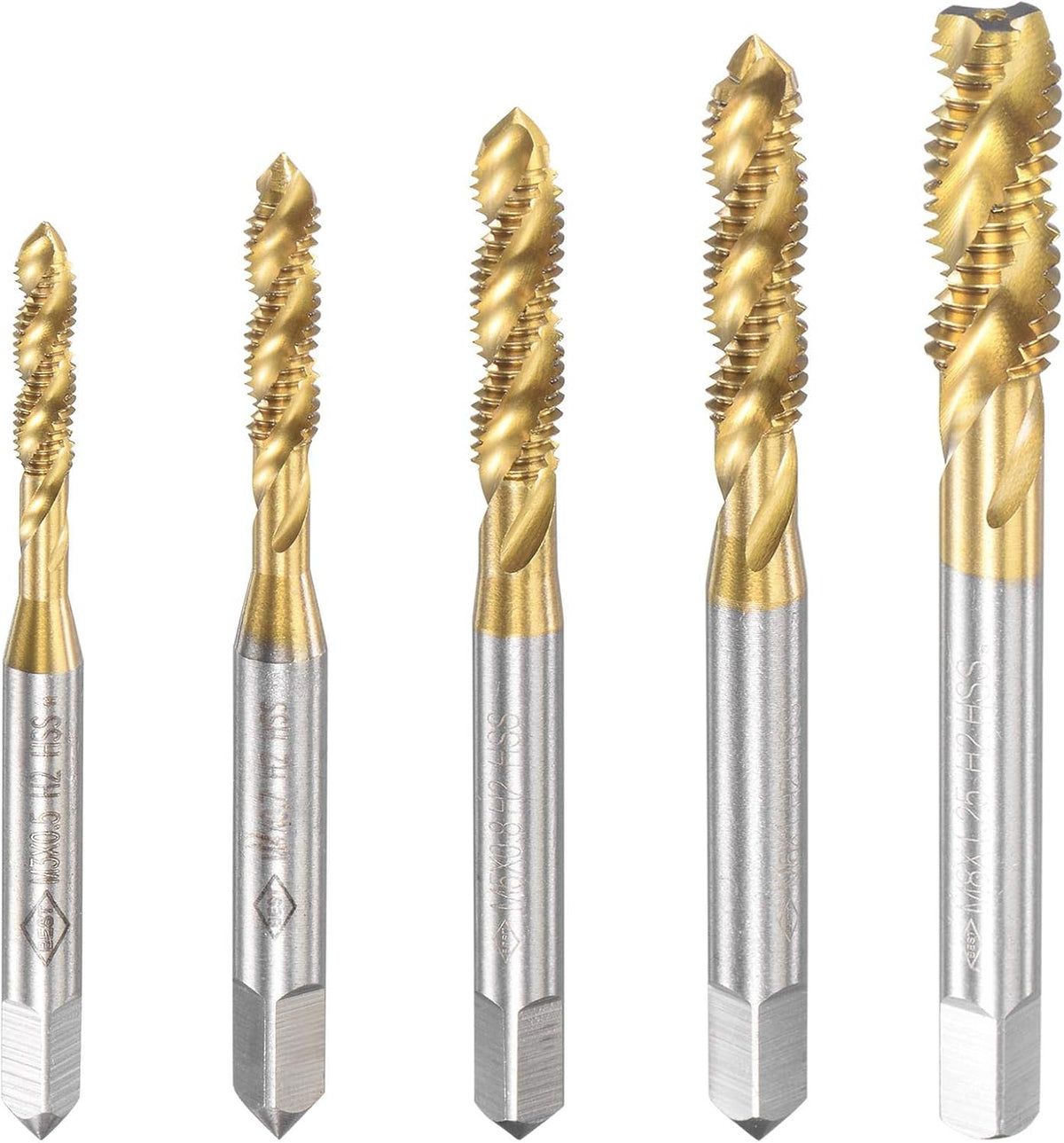

M3 M4 M5 M6 M8 Spiral Flute Taps Set Titanium Coated High-speed Steel Machine Thread Metric Screw Taps 5pcs

Key Features

• Tap Size M3 x 0.5, M4 x 0.7, M5 x 0.8, M6 x 1, M8 x 1.25. Spiral flute design, upward chip removal. Right hand thread cutting, clear threads without burrs, fast tapping with accuracy.
• Material & Coating High-speed steel taps features high hardness and toughness, good for general purpose applications. Titanium coating is for capability, durability, wear-resistance, and long service life.
• Applications Suitable for processing blind holes and sticky materials. Suitable for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc.
• Easy to Use Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps.
• Tips Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause damage to the tap due to uneven force.

Product Description

Specifications

Thread Size: M3 x 0.5, M4 x 0.7, M5 x 0.8, M6 x 1, M8 x 1.25Thread Length: 7mm / 0.28", 15mm / 0.59", 20mm / 0.79", 23mm / 0.91", 22mm / 0.87"Square Shank Size: 3.1mm / 0.12", 4mm / 0.16", 4mm / 0.16", 4.5mm / 0.18", 5mm / 0.2"Total Length: 48mm / 1.89", 55mm / 2.17", 59mm / 2.32", 69mm / 2.72", 71mm / 2.80"Material: High-speed Steel 6542Surface Treatment: Titanium Coated

Descriptions

1. Spiral flute design, upward chip removal. Right hand thread cutting, clear threads with no burrs, fast tapping with accuracy.2. High-speed steel taps features high hardness and toughness, good for general purpose applications. Titanium coating is for capability, durability, wear-resistance, and long service life.3. Suitable for processing holes and sticky materials. Suitable for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc..4. Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps.5. Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause damage to the tap due to uneven force.Package Included:5pcs x Spiral Flute Taps

Specifications
