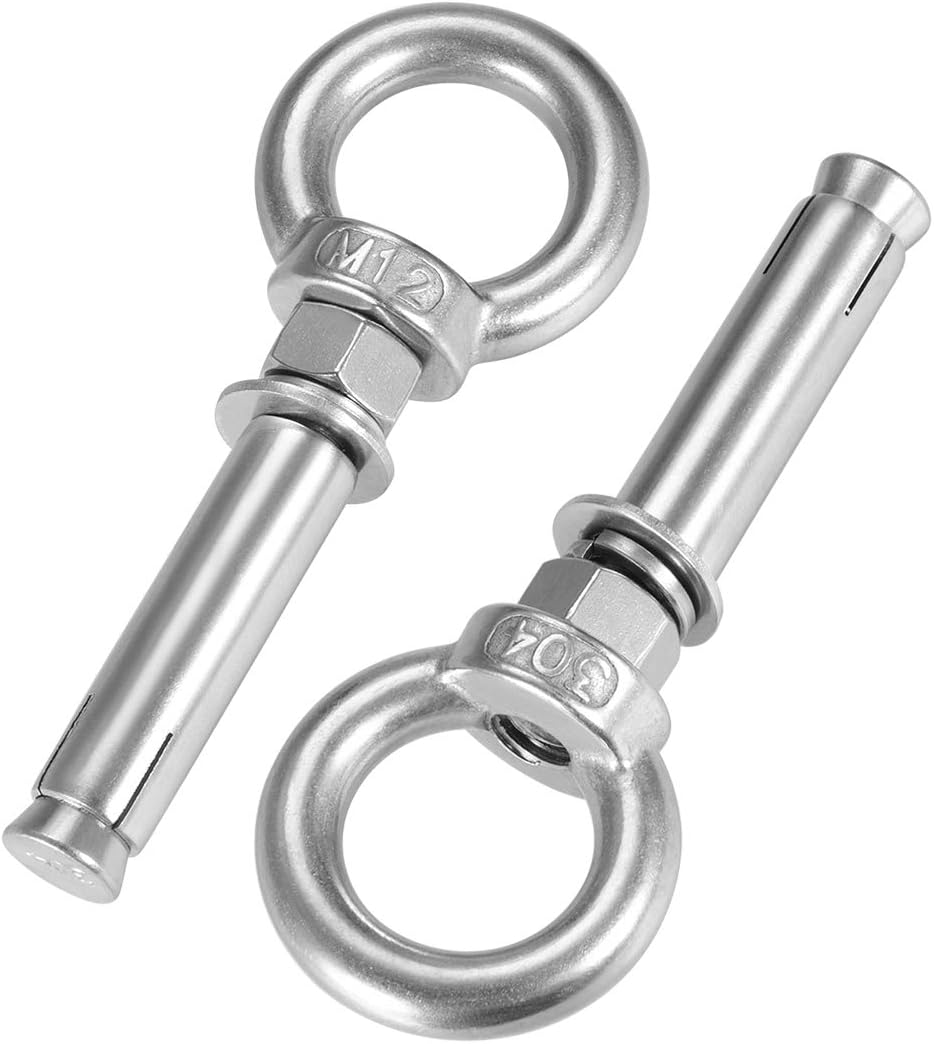

M12 x 90 Expansion Eyebolt Eye Nut Screw with Ring 304 Stainless Steel Anchor Raw Bolts 2 Pcs

Key Features

• Main Size. Standard M12 expansion bolts with 130mm length, and the ring Inner Diameter is 29mm.
• Materials. Made of premium 304 stainless steel, provides a rust protection and precise size.
• Installation. Suggested a 16mm Dia. hole for drilling, and tight the anchor bolt with a wrench after putting the screw. The bolt transfers forces to the sleeve, with the expansion of sleeve, a solid connection has been built between a concrete wall and the wedge anchor nut.
• Application. Fit the concrete wall or masonry, for hanging or lifting the super heavy things like a big shelf. It's durable and reliable.
• Details. The eye type is drop forged eye, such eye bolts are designed to attach a securing eye to a structure and then tie to ropers or cables.

Product Description

Screw Size: M12Overall Length: 130mmEye Nut Height: 49mmInner diameter of the ring: 29mmSleeve Inner Diameter: 12mmSleeve Length: 60mmSuggested Hole Size: 16mm Dia.Total Weight: 410gMaterials: 304 Stainless SteelApplication: Concrete and masonry

Package Content

2 x pcs M12 x 90 Expansion Eye Bolt
