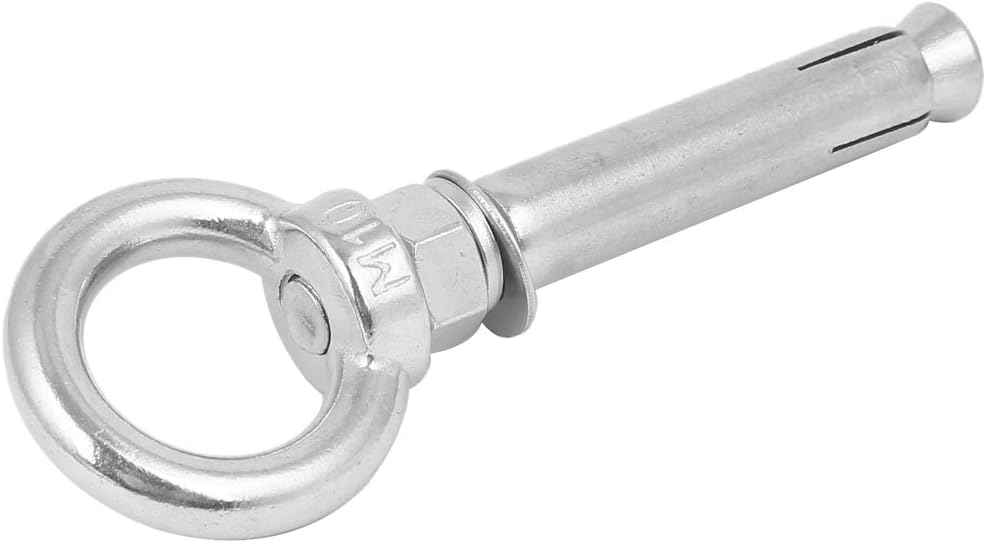

M10x90mm 304 Stainless Steel Ring Lifting Sleeve Expansion Closed Hook Eye Bolt

Key Features

• Product Name Eye Bolt; Material 304 Stainless Steel; Weight 129g
• Package Content 1 x Eye Bolt; Punch Diameter 14mm / 0.55"
• Sleeve Tube Size 14mm x 60mm / 0.55" x 2.4" (D*L); Thread Diameter M10 / 0.4"
• Bolt Length 90mm / 3.5"; Overall Length 120mm / 4.7"
• Eye Size 25mm x 42mm x 8.5mm / 1" x 1.65" x 0.33" (Inner Dia.*OD*T); Color Silver Tone

Product Description

Made from 304 stainless steel for maximum corrosion resistance and durability.Expansion is created by tightening a threaded bolt which draws a tapered cone expanding a sleeve against the walls of the hole.Easy to install. Widely used in fence,burglarproof doors and window,canopy,air conditioning fixation,home decoration,engineering,etc.
