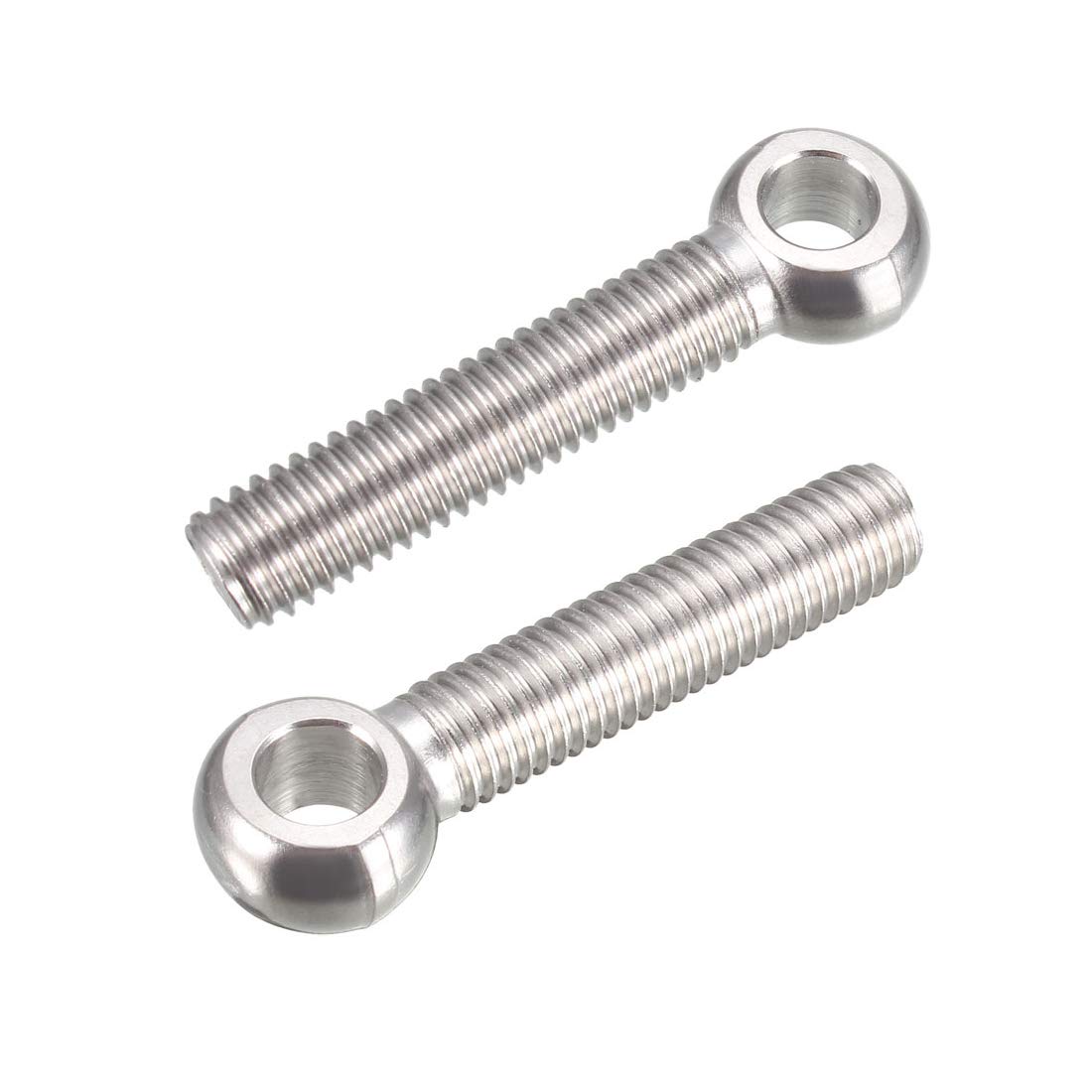

M10 x 50mm Machinery Shoulder Swing Lifting Eye Bolt 304 Stainless Steel Metric Thread 2pcs

Key Features

• Dimension M10x 50mm; Eye Center To Bottom Length 50mm / 1.97"; Eye Inside Dia8.5mm / 0.33"
• EYE BOLT. Also known as the fish eye bolt, is a screw with a loop on one end and threads on the other end.
• MATERIAL. Forged from stainless steel, high strength, fast and durable.
• APPLICATION. It is generally widely used in pipeline gate valves, construction steel pipe fasteners, ring nuts, etc. It is an good maintenance accessory for these components.
• ADVANTAGE. The eye hole of the bolt head is formed by mechanical or stamping once, and the structural strength is high.

Product Description

Description

1.The eye bolt, also known as the fish eye bolt, is a screw with a loop on one end and threads on the other end.2.Forged from stainless steel, high strength, fast and durable.3.It is generally widely used in pipeline gate valves, construction steel pipe fasteners, ring nuts, etc. It is an good maintenance accessory for these components.4.The eye hole of the bolt head is formed by mechanical or stamping once, and the structural strength is high. Specification:Dimension: M10x 50mmPitch: 1.5mm/ 0.06"Loop Thickness: 9mm / 0.35"Eye Center To Bottom Length: 50mm / 1.97"Eye Inside Dia: 8.5mm / 0.33"

Package Content

2pcs x Eye Bolt

Specifications
