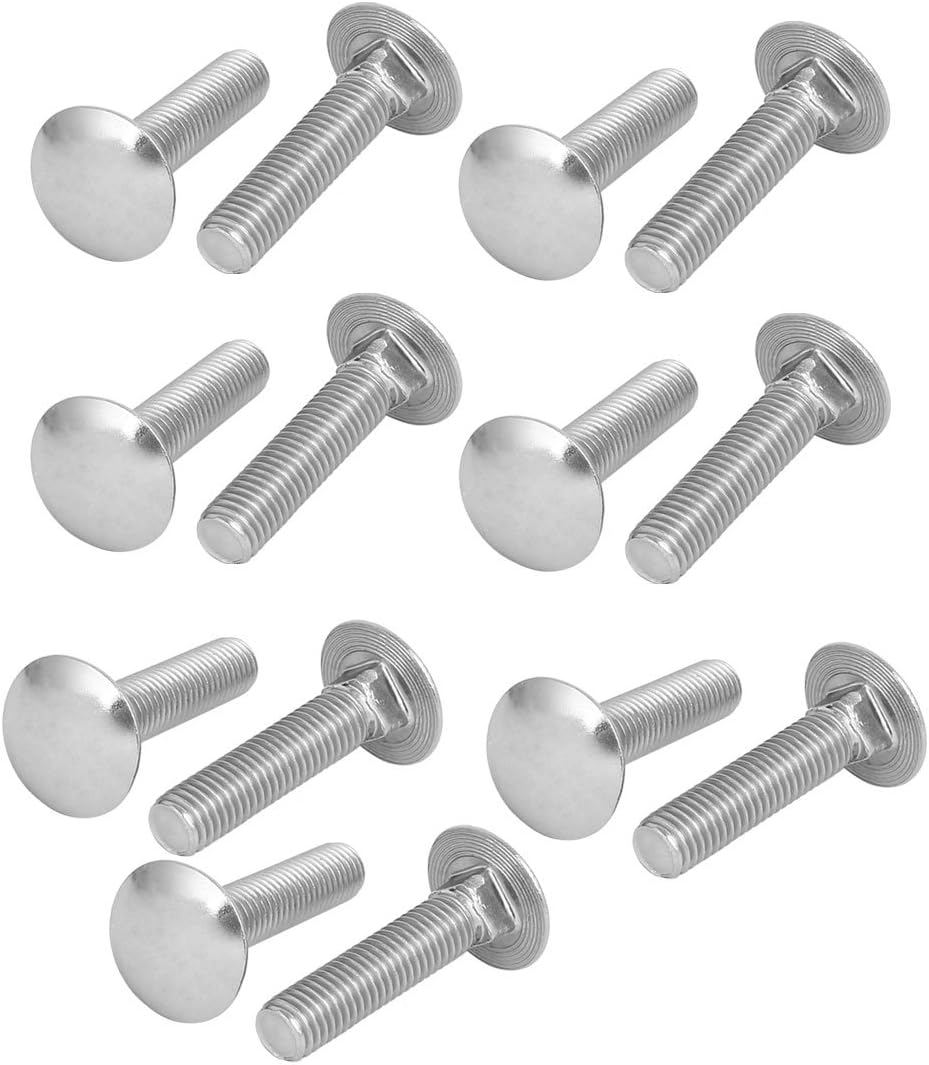

M10 x 45mm 304 Stainless Steel Round Head Fully Thread Carriage Bolts 14PCS

Key Features

• Material 304 Stainless Steel; Package Content 14PCS x Carriage Bolt; Product Name Carriage Bolt
• Thread Size M10 x 38mm / 0.4" x 1.5" (D*L); Weight 478g; Head Style Round Head
• Main Color Silver Tone; Thread Pitch 1.5mm; Total Length 50mm / 2"
• Thread Style Fully Thread; Under Head Length 45mm / 1.8"
• Head Size 23mm x 5mm / 0.9" x 0.2" (D*H); Square Neck Size 10mm x 10mm x 6mm / 0.4" x 0.4" x 0.24" (L*W*H)

Product Description

Meet DIN603 specification.A carriage bolt, coach bolt or round head square neck bolt is used through iron strengthening plates on either side of a wooden beam. It is commonplace though to use them on bare timber, the squared section giving enough grip to prevent rotation. Carriage bolts are extensively used in security fixings where the bolt must only be removable from one side. The smooth domed head and square neck below prevent the carriage bolt from the insecure side.

Specifications
