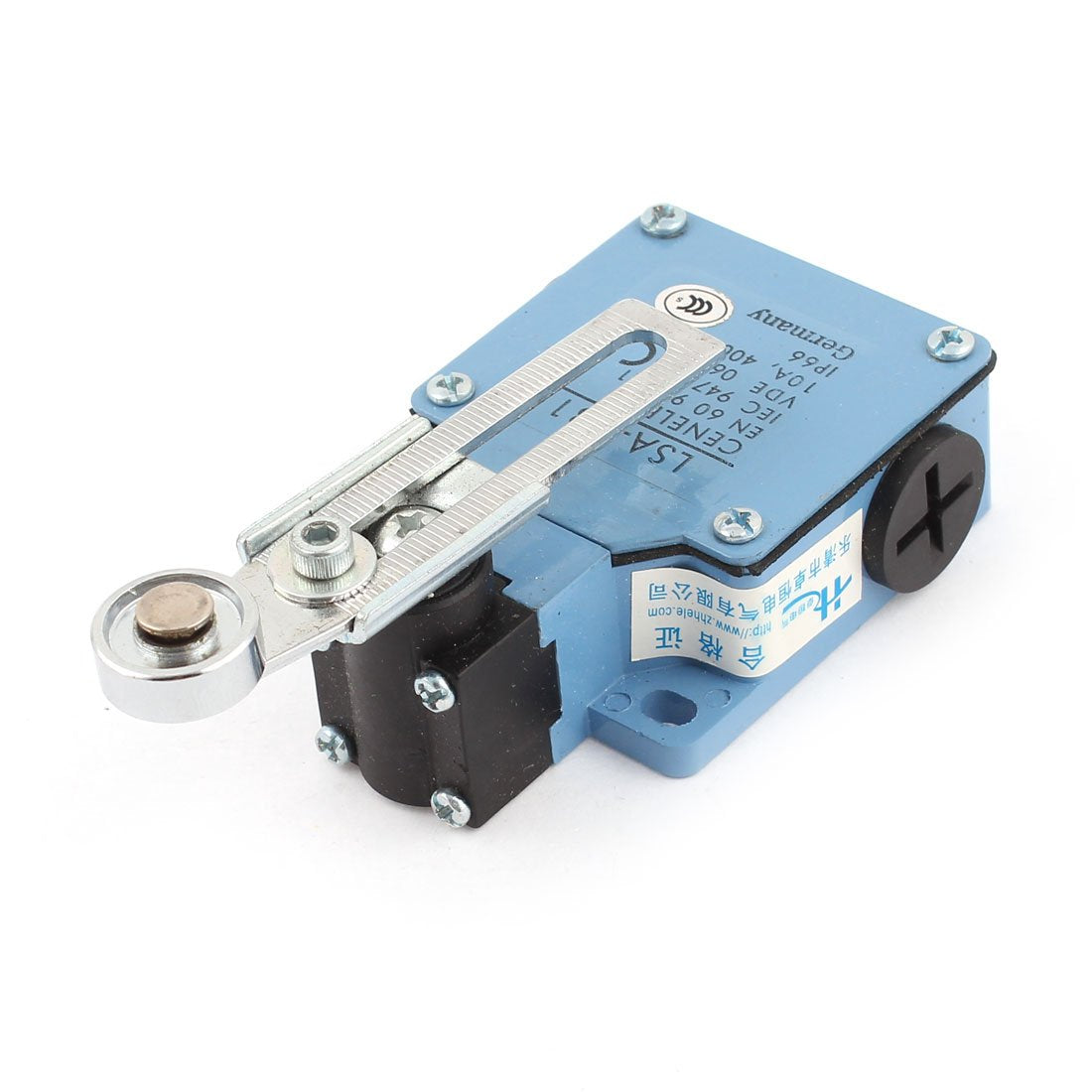

LSA-031 SPDT Momentary Rotary Roller Lever Limit Switch AC 400V 10A for CNC Mill 3D printer Door Switch

Key Features

• Product Name Limit Switch;Model No. LSA-031;Actuator Action Momentary;Actuator Type Rotary Adjustable Lever Arm with Roller
• Contact Type 1NC + 1NO(SPDT);Ui / Ith Ui / Ith;400V 10A 400V 10A
• Uimp 6KV, 10(4)A, 380V;AC 15 Ue 240V, 3A;Roller Wheel Size 18 x 6.4mm / 0.7" x 0.25"(Dia.*H)
• Lever Arm Length 88mm / 3.46";Body Size 84 x 58 x 25mm / 3.3" x 2.3" x 1.0"(L*W*H);Total Size 113 x 58 x 46mm / 4.4" x 2.3" x 1.8"(L*W*H)
• Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.

Product Description

Can be used in safety circuits, control circuit and auxiliary circuit for terminal limit protection. for different connecting rod or contacting heads. Lever Arm can be rotated to the left and to the right.

Specifications
