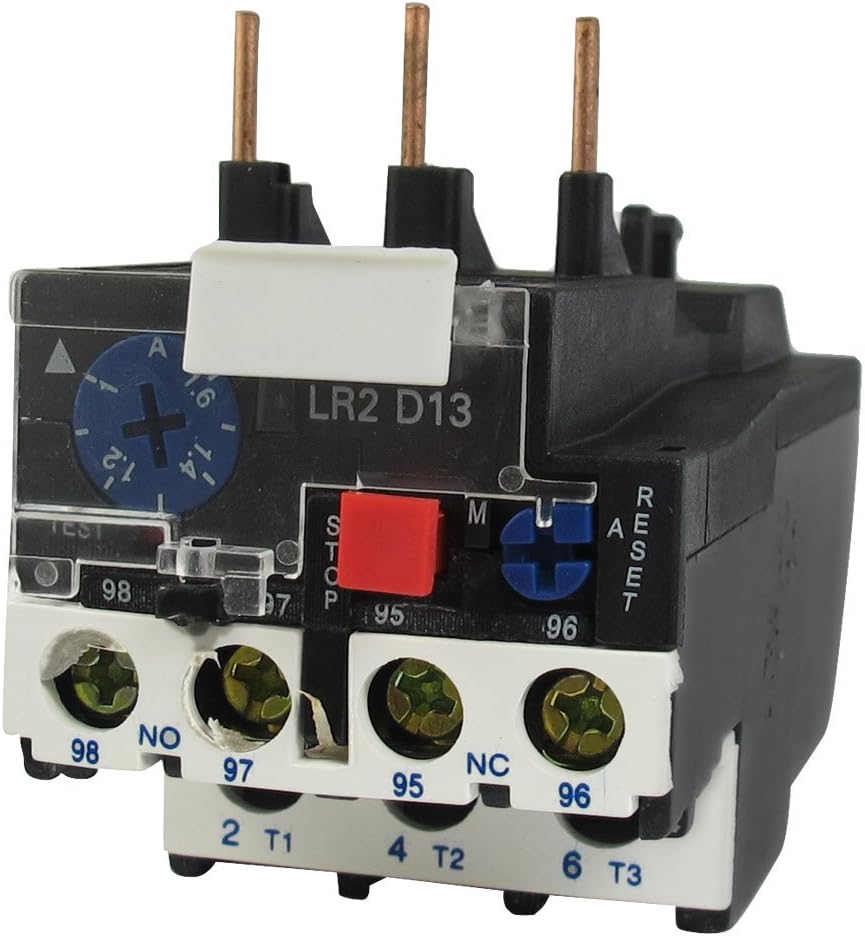

LR2-13 1.6A 1-1.6A 3-Phase 1NO 1NC Electric Thermal Overload Relay

Key Features

• Product Name Thermal Overload Relay w Socket;Model LR2-13;Contact Type 1NO 1NC;Phase 3
• Ui 660V;ith 5A;Tripping Class 10A;Adjustable Current Range 1-1.6A
• Thermal Relay Rated Current 1.6A;DC-13 Ue220 V Ie0.2 A;AC-15 380
• Ie A 1.58;Total Size (Approx.) 43 x 50 x 88mm/ 1.7" x 2" x 3.5" (L*W*H);Material Plastic, Electronic Components
• Color Black, White;Net Weight 152g;Package Content 1 x Thermal Overload Relay w Socket

Product Description

Designed to provide overload protection to meet the thermal characteristics of low voltage induction motors. Adjustable Thermal Overload Relay give motors positive overcurrent protection. It can install independently or connect with contactor.
