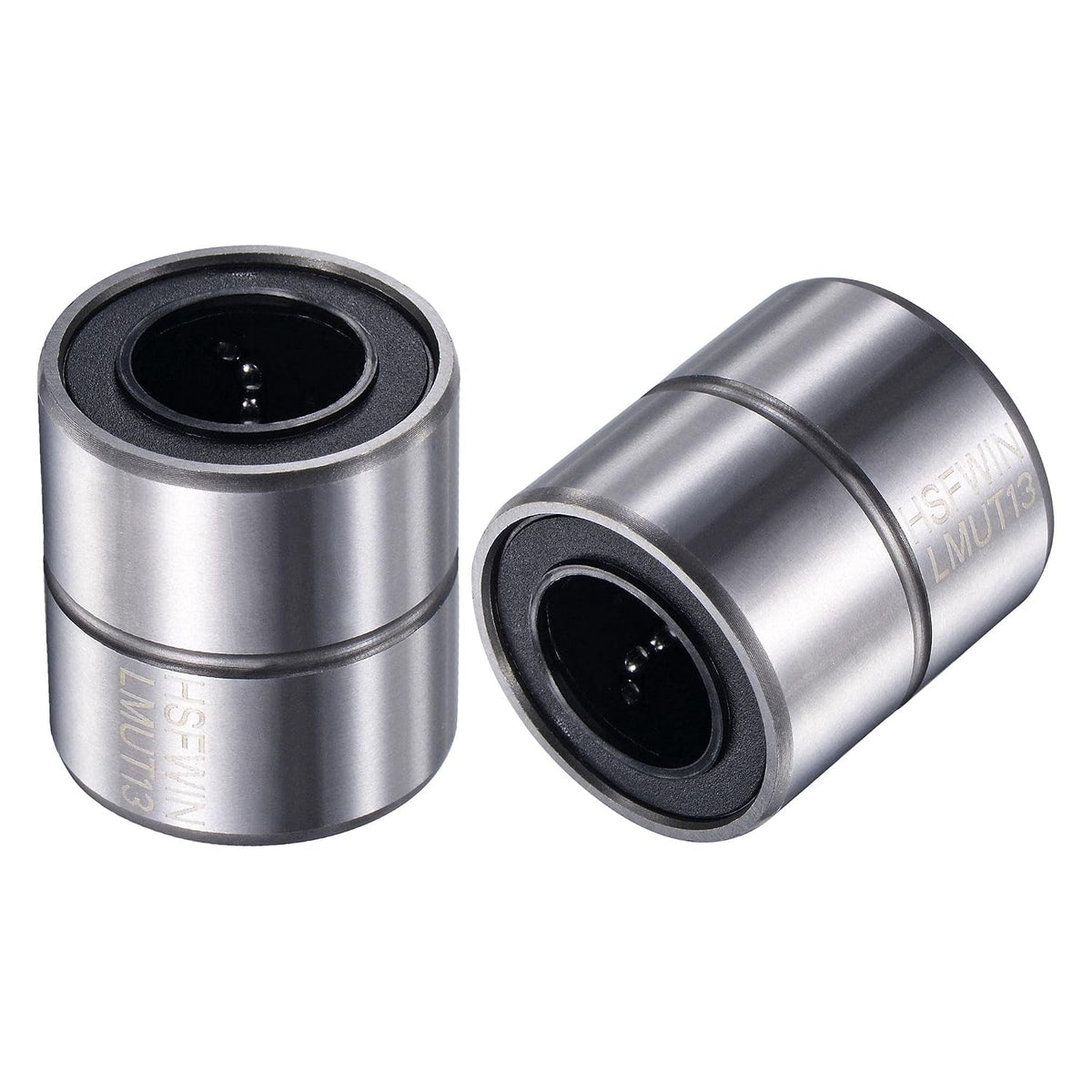

LMUT13 Linear Ball Bearings 13mm Bore 23mm OD 25mm Length Chrome Steel for CNC Machine 3D Printer 2pcs

Key Features

• [SIZE] - Model LMUT13, 13x23x25mm Metric Double Seal Chromium Steel Linear Bearing
• [USAGE] - Linear bearings are part of linear motion systems, often used in conjunction with cylindrical shafts or guideways
• [FEATURES] - These ball bearings are shorter than standard type linear bearings for space-saving.
• [CAPABILITY] - Static Load Capacity (Cor) 413N, Dynamic Load Capacity (Cr) 320N (Recommended load is 80% of rated load, not to exceed rated load.)
• [APPLICATIONS] - Mechanical slides, 2-axis and 3-axis tables, linear tables, 3D printers, etc.

Product Description

Descriptions

Linear bearings are widely used in electronic equipment, tensile testing machines and digital three-dimensional coordinate measuring equipment and other precision equipment, as well as multi-axis machine tools, punch presses, tool grinding machines, automatic gas cutter, printers and other industrial machinery sliding.Linear bearings are linear motion systems for use with cylindrical shafts. Since the carrier ball is in point contact with the shaft, low loads are applied. The steel balls rotate with very little frictional resistance, which results in a smooth motion with high accuracy.

Specifications

Model: LMUT13Housing Material: Chrome SteelCage Material: NylonInner Diameter: 13mmOuter Diameter: 23mmTotal Length: 25mmStatic Load Capacity (Cor): 413NDynamic Load Capacity (Cr): 320NPackage Contents:2 x Linear Bearings
