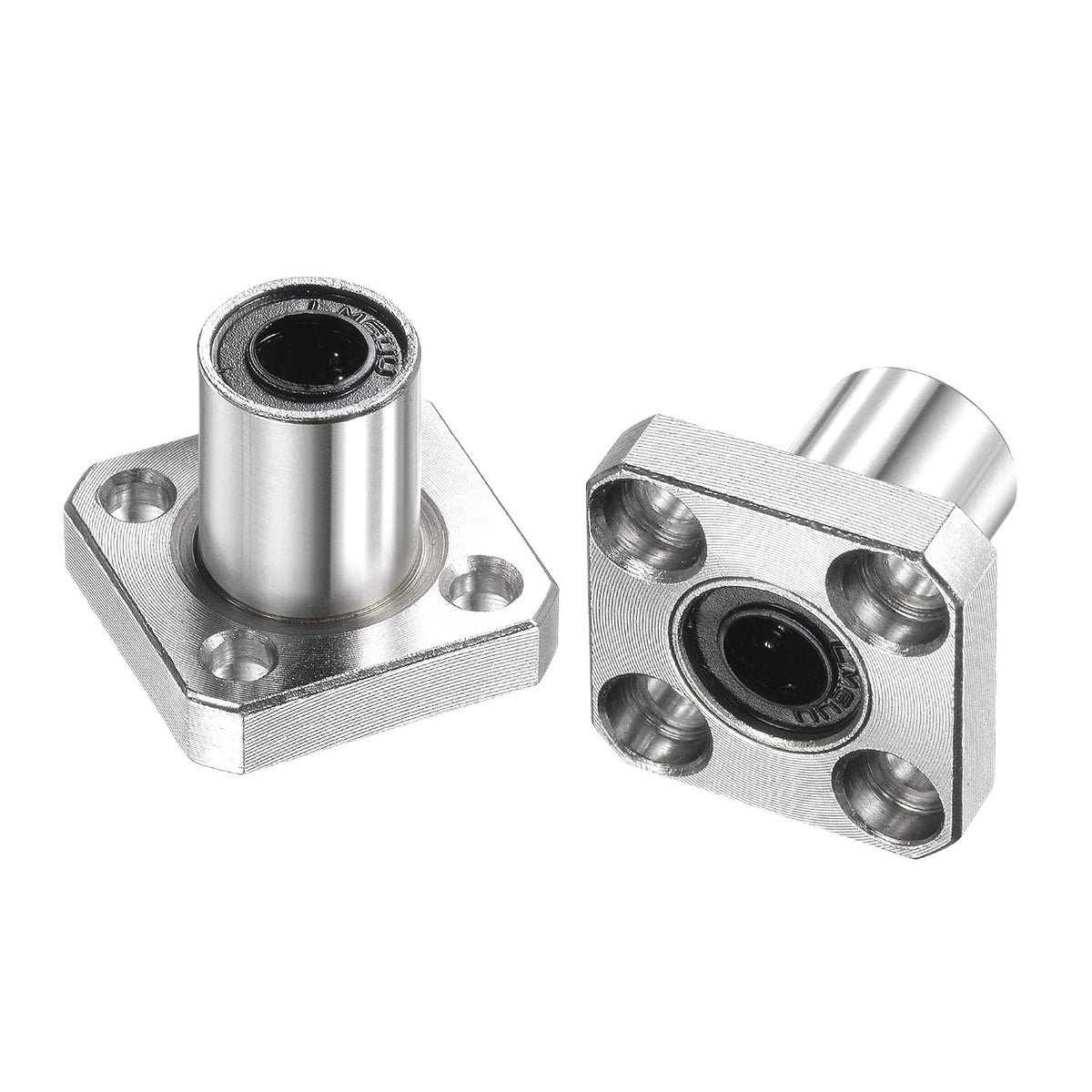

LMK6UU Linear Ball Bearings 6mm Bore 12mm OD 19mm Length Square Flange Nickel Plated for CNC Machine 3D Printers 2pcs

Key Features

• [SIZE] - Model LMK6UU, 6x12x19mm Metric Double Seal Chromium Steel Linear Bearing, 22mm x 22mm Square Flange Base
• [USAGE] - Linear bearings are part of linear motion systems, often used in conjunction with cylindrical shafts or guideways
• [FEATURES] - Nickel plating enhances corrosion resistance and durability. These linear bearings with Nickel-Plated surface treatment can operate under corrosive or high-temperature conditions
• [CAPABILITY] - Static Load Capacity (Cor) 265N, Dynamic Load Capacity (Cr) 206N (Recommended load is 80% of rated load, not to exceed rated load.)
• [APPLICATIONS] - Mechanical slides, 2-axis and 3-axis tables, linear tables, 3D printers, etc.

Product Description

Descriptions

Linear bearings are widely used in electronic equipment, tensile testing machines and digital three-dimensional coordinate measuring equipment and other precision equipment, as well as multi-axis machine tools, punch presses, tool grinding machines, automatic gas cutter, printers and other industrial machinery sliding.Linear bearings are linear motion systems for use with cylindrical shafts. Since the carrier ball is in point contact with the shaft, low loads are applied. The steel balls rotate with very little frictional resistance, which results in a smooth motion with high accuracy.

Specifications

Model: LMK6UUHousing Material: Chrome SteelFinished: Nickel PlatedInner Diameter: 6mmOuter Diameter: 12mmTotal Length: 19mmFlange Size: 22 x 22 x 5mm (L*W*T)Static Load Capacity (Cor): 265NDynamic Load Capacity (Cr): 206NPackage Contents:2 x Linear Bearings
