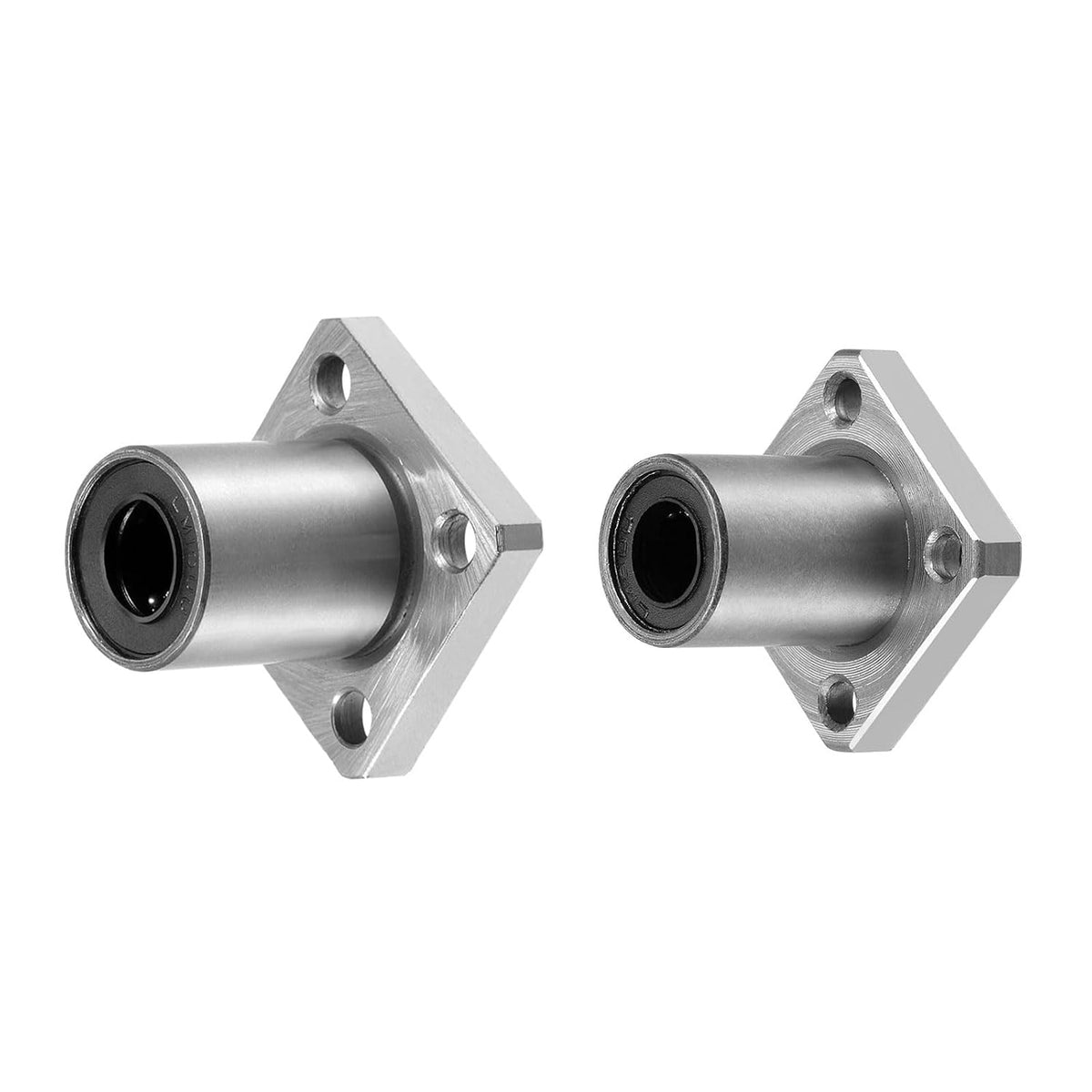

LMK10UU LMK8UU Square Flange Linear Ball Bearings, 10mm 8mm Bore Dia, 19mm 15mm OD, 29mm 24mm Length, 4pcs

Key Features

• Features Nominal Shaft Diameter (dr) 10mm, 8mm; Outer Diameter 19mm, 15mm; Total Length (L) 29mm, 24mm; Mounting Hole Dia. 4.4 x 7.8mm / 0.17 x 0.31inch (d1*d2); 3.3 x 6mm / 0.13 x 0.24inch (d1*d2); Pitch Circle Dia. (PCD) 29mm / 1.14inch; 24mm / 0.94inch
• Square Flange Linear Motion Ball Bearing Bushing Sealed on Both Side
• Chromium Steel shell and bearing ball, good abrasion resistance, high precision and good strength
• Smooth moving, low friction, high rigidity and long working life
• Suitable for kinds of electronic equipment/guide bar.

Product Description

Features

Nominal Shaft Diameter (dr): 10mm, 8mmOuter Diameter: 19mm, 15mmTotal Length (L): 29mm, 24mmMounting Hole Dia.: 4.4 x 7.8mm / 0.17 x 0.31inch (d1*d2); 3.3 x 6mm / 0.13 x 0.24inch (d1*d2)Pitch Circle Dia. (PCD): 29mm / 1.14inch; 24mm / 0.94inchFlange Size: 30 x 30 x 6mm / 1.18 x 1.18 x 0.24inch (L*W*H), 25 x 25 x 5mm / 0.98 x 0.98 x 0.2inch (L*W*H)

Package Content

2 Pcs x LMK10UU Square Flange Linear Ball Bearings2 Pcs x LMK8UU Square Flange Linear Ball Bearings

Descriptions

Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.It is great for 3D printer, CNC, and other applications.
