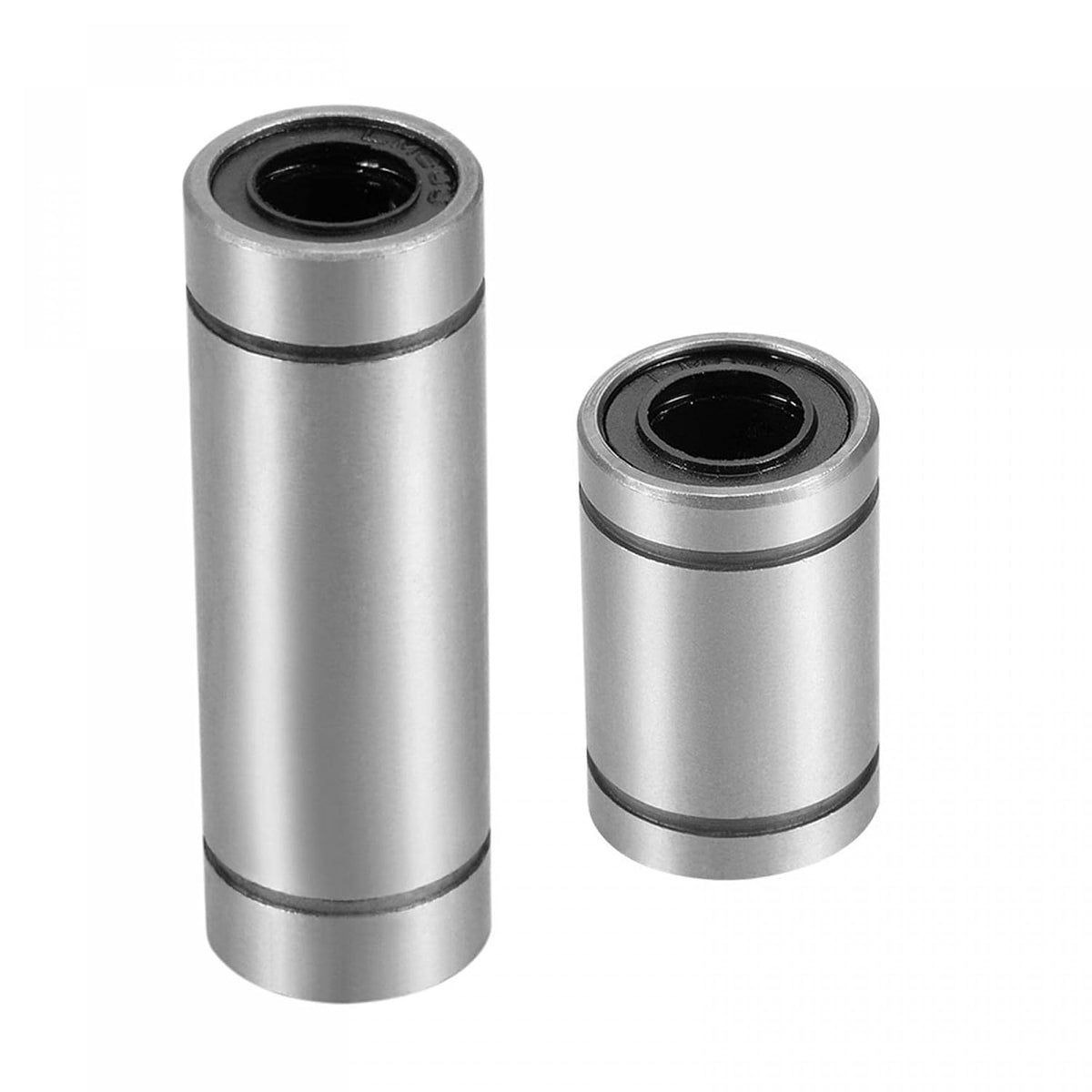

LM8UU, LM8LUU Linear Ball Bearings 8mm Bore 15mm OD for CNC 3D Printer 8pcs

Key Features

• Size - LM8UU (8mm Bore, 15mm OD, 24mm Length); LM8LUU (8mm Bore, 15mm OD, 45mm Length)
• Usage - Linear bearings are part of linear motion systems, often used in conjunction with cylindrical shafts or guideways.
• Features - These ball bearing with two rubber dust sealed to prevent ingress of dirt, water and foreign matter
• Package Content 4pcs x LM8UU; 4pcs x LM8LUU, 8pcs in total
• Application - Mechanical slides, 2-axis and 3-axis tables, linear tables, 3D printers, etc.

Product Description

Description

Linear bearings are widely used in electronic equipment, tensile testing machines and digital three-dimensional coordinate measuring equipment and other precision equipment, as well as multi-axis machine tools, punch presses, tool grinding machines, automatic gas cutter, printers and other industrial machinery sliding.Linear bearings are linear motion systems for use with cylindrical shafts. Since the carrier ball is in point contact with the shaft, low loads are applied. The steel balls rotate with very little frictional resistance, which results in a smooth motion with high accuracy.

Specifications

Model: LM8UU, LM8LUUBearing Ball Material: Chrome SteelHousing Material: Chrome SteelCage Material: NylonInner Diameter: 8mm, 8mmOuter Diameter: 15mm, 15mmTotal Length: 24mm, 45mmBall Circuit: 4Static Load Capacity (Cor): 265N, 784NDynamic Load Capacity (Cr): 402N, 431N

Package Content

4pcs x LM8UU4pcs x LML8UU
