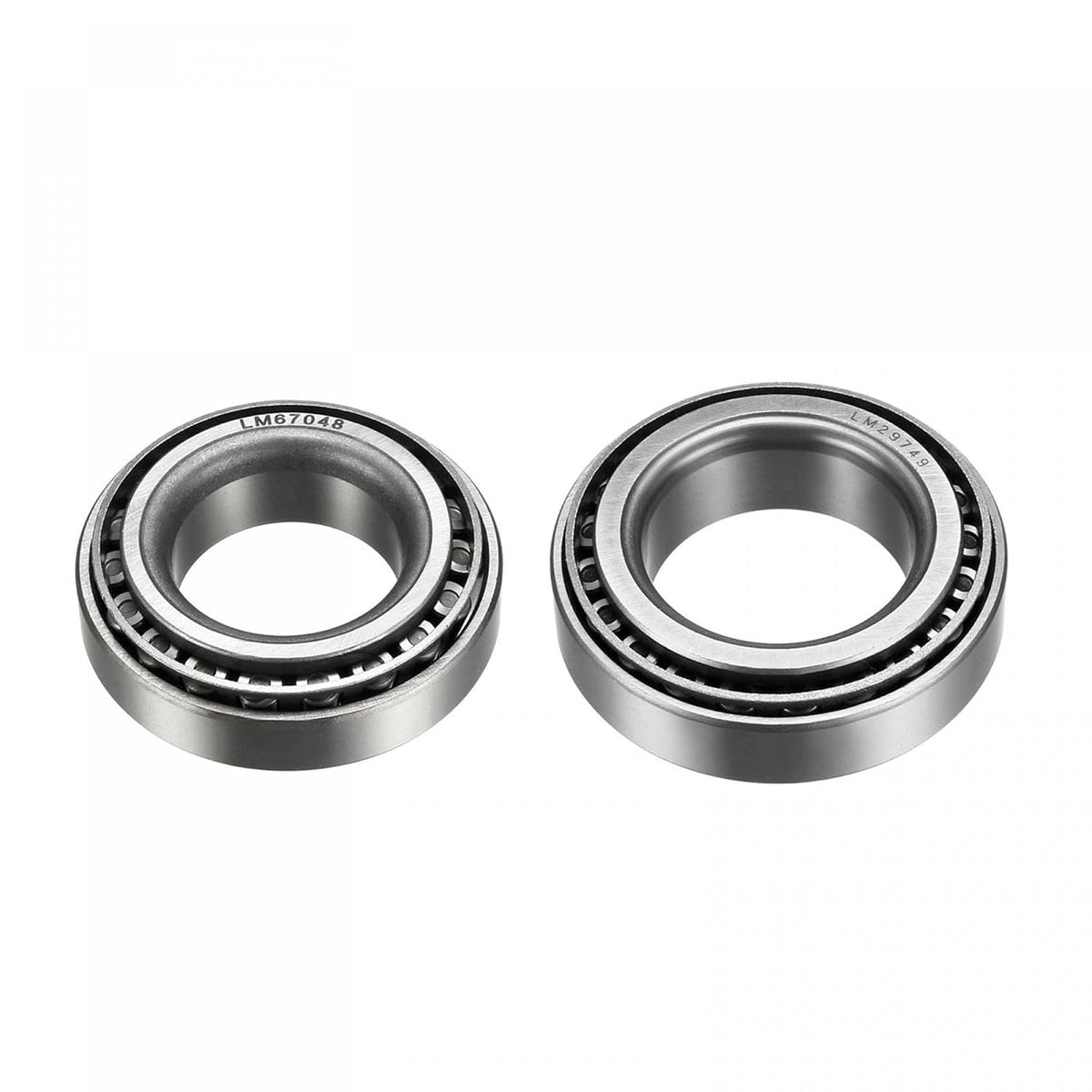

LM67048/LM67010, LM29749/LM29710 Tapered Roller Bearing Cone and Cup Set 4pcs

Key Features

• Model LM67048/LM67010 (Bore 31.75mm / 1.25", Outer Diameter 59.131mm / 2.328", Width 16.764mm / 0.66"); LM29749/LM29710 (Bore 38.1mm / 1.5", Outer Diameter 65.088mm / 2.5625", Width 18.034mm / 0.71")
• Single row tapered roller bearings must be used either with a second bearing or as a matched pair
• Components are separable and interchangeable that easy to maintenance
• Features low friction and low noise that provides operational reliability
• Package content 2pcs x LM67048/LM67010; 2pcs x LM29749/LM29710

Product Description

Description

Single Row Tapered Roller Bearings are designed to accommodate combined loads.These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and axial loads evenly across the roller.The separable components are interchangeable, the inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).This single tapered roller bearing is for use in high-load, moderate-speed applications that include conveyor systems.Specification:Cone Model: LM67048, LM29749Cup Model: LM67010, LM29710Material: Chrome SteelBore Diameter: 1.25", 1.5"Outside Diameter: 2.328", 2.5625"Total Thickness: 0.66", 0.71"Dynamic Load Rating (Cr): 46.7kN, 48.6kNStatic Load Rating (Cor): 44.6kN, 60.3kN

Package Content

2pcs x LM67048/LM670102pcs x LM29749/LM29710
