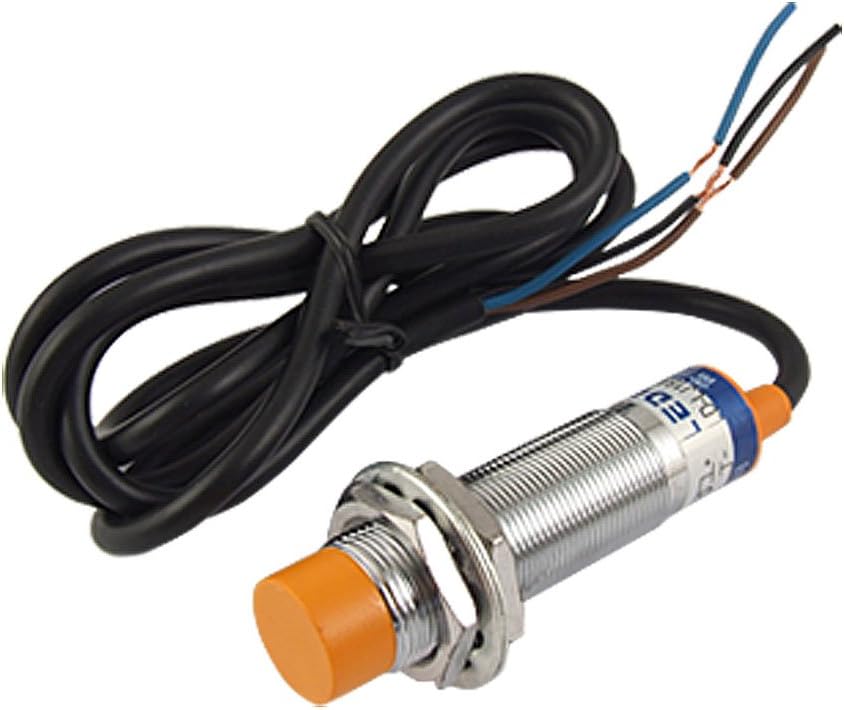

LJ18A3-8-Z/BX DC 6-36V NPN NO 3-wire 8mm Tubular Inductive Proximity Sensor Switch 300 mA

Key Features

• Product Name Inductive Proximity Switch;Model LJ18A3-8-Z/BX;Theory Inductive Type Sensor;Wire Type 3 Wire Type (Brown, Black, Blue)
• Switch Appearance Type Cylinder Type, Metal Shell;Output Type<br> NO, NPN;Detecting Distance 8mm/ 0.3''(+/-10%);Supply Voltage DC 6-36V
• Current Output 300 mA;Response Frequency 100Hz;Detect Object Iron;Column Sensor Dia. 18mm/ 0.7''
• Total Size 70 x 32mm/ 2.7'' x 1.3'' (L*Max.D);Cable Length 1.1m/ 43.3'';External Material Plastic, Metal
• Net Weight 88g;Color Silver Tone, Orange, Black;Package Content 1 x Inductive Proximity Switch

Product Description

Product Name : Inductive Proximity Switch;Model : LJ18A3-8-Z/BX;Theory : Inductive Type Sensor;Wire Type : 3 Wire Type (Brown, Black, Blue) Switch Appearance Type : Cylinder Type, Metal Shell;Output Type : NO, NPN;Detecting Distance : 8mm/ 0.3''(+/-10%);Supply Voltage : DC 6-36V Current Output : 300 mA;Response Frequency : 100Hz;Detect Object : Iron;Column Sensor Dia. : 18mm/ 0.7'' Total Size : 70 x 32mm/ 2.7'' x 1.3'' (L*Max.D);Cable Length : 1.1m/ 43.3'';External Material : Plastic, Metal Net Weight : 88g;Color : Silver Tone, Orange, Black;

Package Content

1 x Inductive Proximity Switch ›
