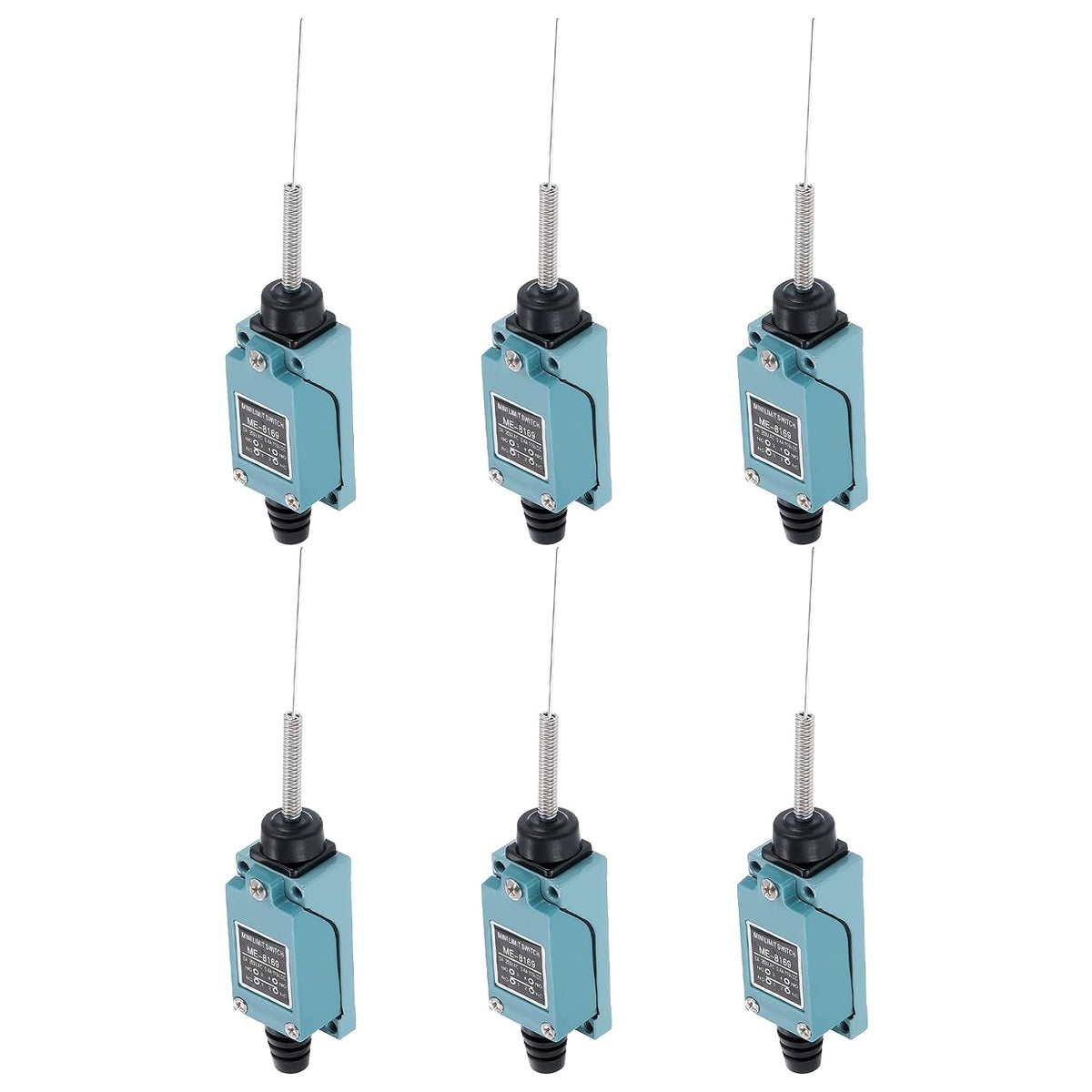

Limit Switch Flexible Coil Spring Momentary Switch ME-8169 1NC+1NO for 3D Printer Door Switch 6 Pcs

Key Features

• Model ME-8169; Rated Voltage 5A 250V AC / 0.4A 115V DC; Contact Configuration 1NC+1NO; Body Size 155x 28 x 25mm/ 6.1" x 1.1" x 0.98"(L*W*H); Mount Hole Diameter 4.4mm / 0.17"; Spring Length 33mm / 1.3"; Rod Length 52mm / 2"; 6 x ME-8169 Limit Switch
• Designed for printer, 3D printer, CNC router, laser, light switch, Widely used in various machines for position monitoring and terminal limit protection.
• Easily wire the limit switch following the provided diagram,Install the switch in the desired position, ensuring proper alignment.
• Versatile application across various machines and environments.Constructed from durable materials for long-lasting performance and reliability.
• Note Use in accordance with the rated current and voltage specifications.

Product Description

Description

Crafted from excellent ABS material and reinforced plastic, this durable construction ensures long-lasting performance and resistance to wear, and heat. It is commonly used in printers, 3D printers, CNC routers, and laser machines. This switch is designed to offer smooth and reliable operation, making it a preferred choice for various applications.Specification:Product Name: Limit SwitchModel: ME-8169Rated Voltage: 5A 250V AC / 0.4A 115V DCContact Configuration: 1NC+1NOBody Size: 155x 28 x 25mm/ 6.1" x 1.1" x 0.98"(L*W*H)Mount Hole Diameter: 4.4mm / 0.17"Spring Length: 33mm / 1.3"Rod Length: 52mm / 2"

Package Content

6 x ME-8169 Limit Switch
