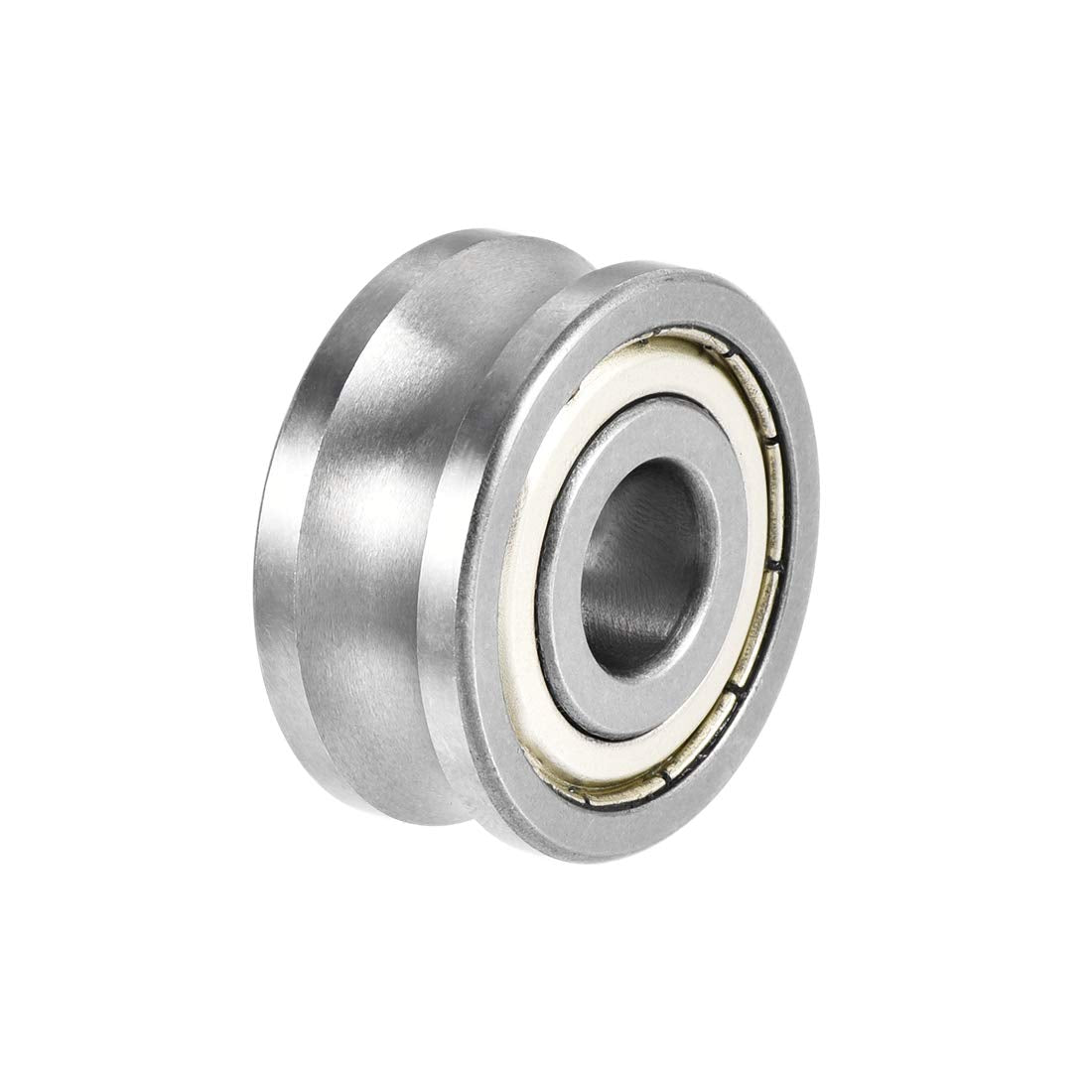

LFR5201-12 U Groove Track Roller Bearing 12x35x16mm Double Metal Shielded (GCr15) Chrome Steel Ball Bearing

Key Features

• LFR5201-12 (I.D.=12mm, O.D.=35mm, Thickness=16mm)
• LFR5201-12 bearings are shielded on both sides to keep lubricant in
• Chromium Steel long-life bearings, smooth and low noise
• ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
• Number of Pack 1Pcs

Product Description

NOTE：Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description

Double-row, pre-lubricated, normal accuracy.Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistanceSuitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.Selection Guide:Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.Specification:Model: LFR5201-12Shielded Type: Double ShieldedInner Race/Outer Race Material: Chrome Steel (GCr15)Cage Material: Stamping SteelInner Diameter (d): 12mmOuter Diameter (D): 35mmThickness (B): 16mmGroove width: 8.6mm Groove depth: 1.9mmU groove: 60 degreeAccuracy Class: P0 (ABEC1)Noise Level: Z2Number of Pack: 1Pcs
