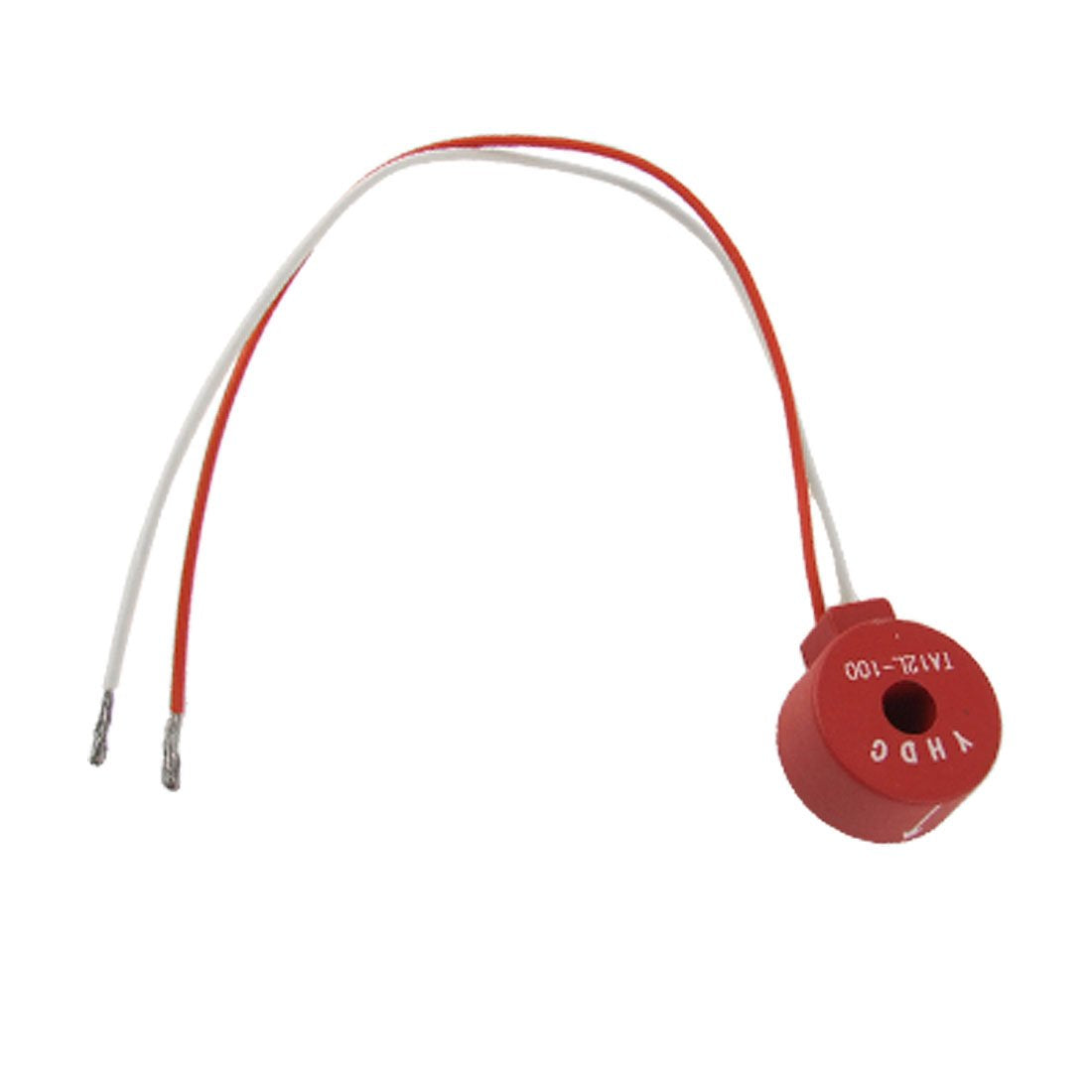

Leading Wire Type Epoxy Resin Embedding Precision Current Transformer, TA12L-100

Key Features

• Product Name Current Transformer; Model No. TA12L-100;Ratio 10001;Input Current 0-5A
• Output Current 0-5mA;Sample Resistance 200;Sampling Voltage 1V;Nonlinear Scale <=0.3%
• Phase Drift <=10';Working Frequency 20Hz-20KHz;Working Temperature -55C--+85C; Dielectric Strength 6KV AC/1min
• Leading Wire Length 125mm/4.9";Shot-hole Diameter 4.5mm/0.177";Overall Size(Approx.) 20 x 18 x 9mm/0.8" x 0.7" x 0.35"(L*W*T)
• Color Red; Weight 7g;Package Content 1 x Current Transformer

Product Description

Descriptions

Epoxy resin embedding, fully-enclosed, leading wire type. Applications: tele monitoring for electric load. As input signal to electric control system. Status monitoring for motor running.

Specifications
