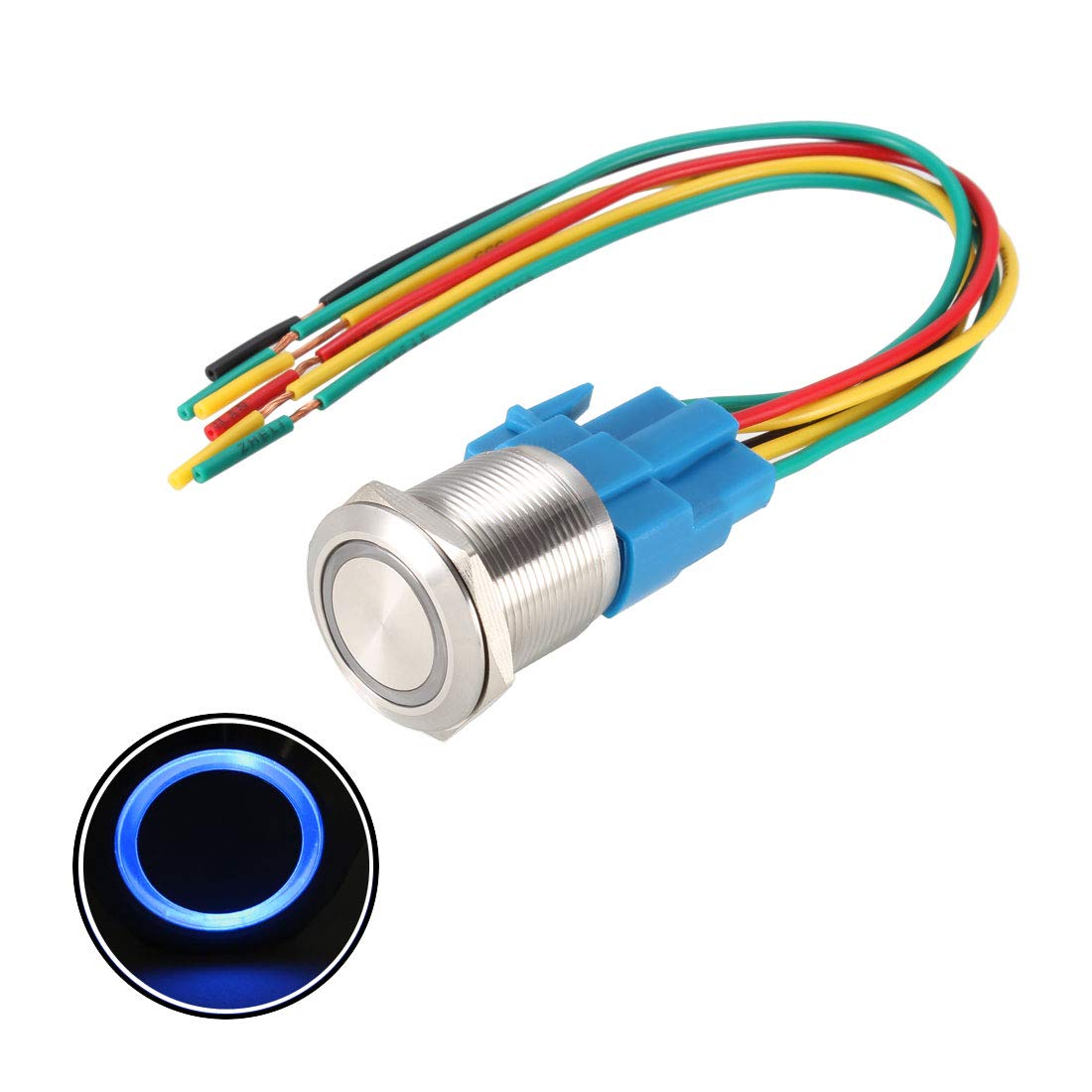

Latching Metal Push Button Switch 22mm Mounting Dia 1NO 1NC 12V Blue LED Light with Socket Plug Wires

Key Features

• Operation Type Latching ; Contact Type 1NO 1NC
• (Rated) Voltage & Current 250V 3A; Light Voltage 12V; Light Color Blue
• Mounting Hole Dia 22mm / 0.86in; Terminals Quantity 6; Package Content 1 x Push Button Switch, 1 x Socket Plug Wire
• Head Shape Flat Head; Total Size 43.5 x 28mm (H*D), Wire Length 190mm
• Used widely for Power Button Switch, Led Switch, DIY projects or any circuit controls.

Product Description

Descriptions

Latching type, 1NO 1NC contact, 6 terminals.This metal push button switch is suitable for 22mm diameter mounting hole.Used widely: Great for Power Button Switch, Led Switch, DIY projects or any circuit controls. Specification:Item Name: Push Button SwitchAction Type: Latching TypeHead Shape: Flat HeadContact: 1NO 1NC Switch Rating: 250V 3ASwitch Color: Silver ToneLamp Voltage: 12VLight Color: Blue Pin Number: 6Thread Diameter: 22mm / 0.86inTotal Size: 43.5 x 28mm (H*D)Material: Copper Chrome PlatingButton Sign: Ring SignWire Length: 190mm

Package Content

1 x Push Button Switch1 x Socket Plug Wire
