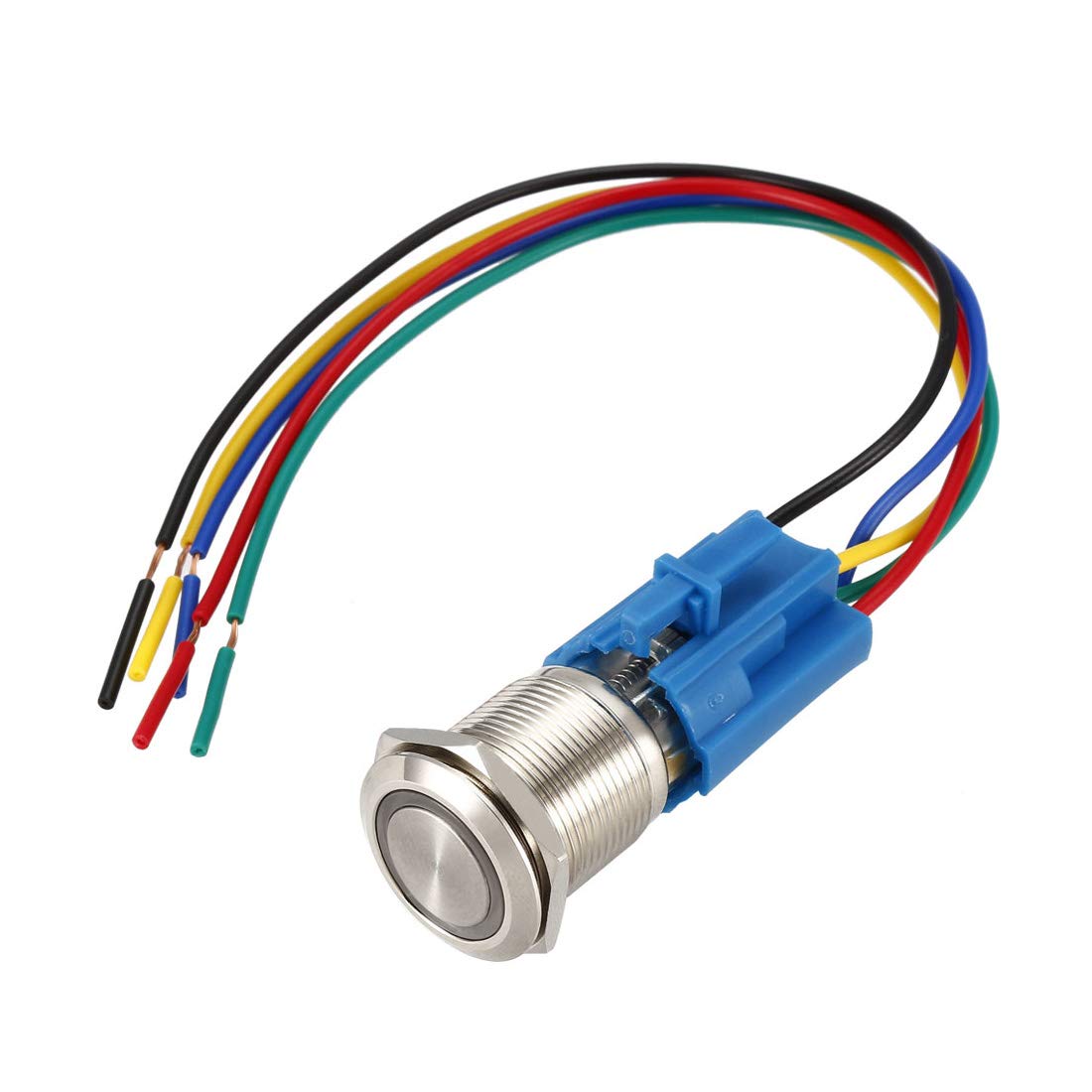

Latching Metal Push Button Switch 19mm Mounting Dia 1NO 1NC COM 24V White LED Light with Socket Plug Wires

Key Features

• Operation Type Latching ; Contact Type 1NO 1NC COM
• (Rated) Voltage & Current 250V 5A; Light Voltage 24V ; Light Color White
• Mounting Hole Dia 19mm / 0.75in; Terminals Quantity 5; Package Content 1 x Push Button Switch, 1 x Socket Plug Wire
• Head Shape Flat Head; Total Size 25 x 40.8mm (D*L), Wire Length 200mm
• Used widely for Power Button Switch, Led Switch, DIY projects or any circuit controls.

Product Description

Descriptions

Latching type, 1NO 1NC COM contact, 5 terminals.This metal push button switch is suitable for 19mm diameter mounting hole.Used widely: Great for Power Button Switch, Led Switch, DIY projects or any circuit controls. Specification:Item Name: Push Button SwitchAction Type: Latching TypeHead Shape: Flat HeadContact: 1NO 1NC COMSwitch Rating: 250V 5ASwitch Color: Silver ToneLamp Voltage: 24V Light Color: White Pin Number: 5Thread Diameter: 19mm / 0.75inTotal Size: 25 x 40.8mm (D*L)Material: Copper Nickel PlatingButton Sign: Ring SignWire Length: 200mm

Package Content

1 x Push Button Switch1 x Socket Plug Wire
